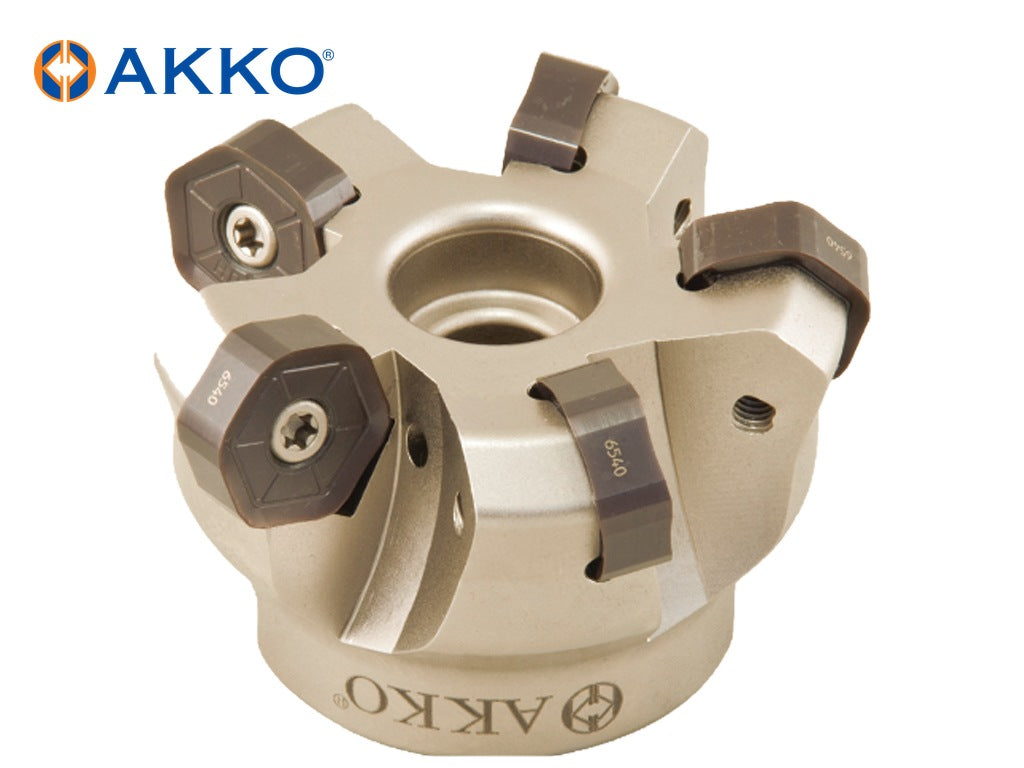

AKKO AFM45L-HN – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: HNGJ 0905.. 10 sizes listed below.

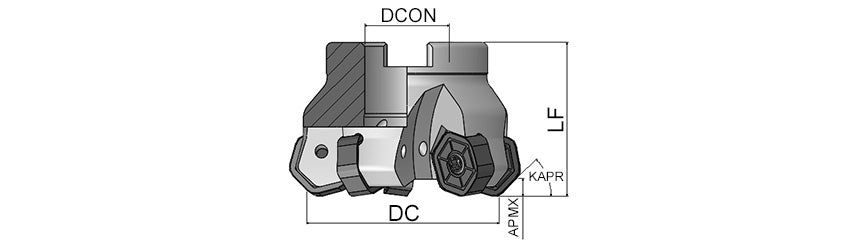

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Coolant Through | Number of Flutes (ZEFP) |
|---|---|---|---|---|---|
| AFM45-HN0905-D050-A22-Z05-H | 50 | 22 | 40 | Yes | 5 |
| AFM45-HN0905-D063-A22-Z06-H | 63 | 22 | 40 | Yes | 6 |
| AFM45-HN0905-D080-A27-Z07-H | 80 | 27 | 50 | Yes | 7 |
| AFM45-HN0905-D125-B40-Z10 | 125 | 40 | 63 | No | 10 |
| AFM45-HN0905-D160-C40-Z12 | 160 | 40 | 63 | No | 12 |
| AFM45-HN0905-D200-C60-Z16 | 200 | 60 | 63 | No | 16 |
| AFM45L-HN0905-D100-A32-Z08-H | 100 | 32 | 50 | Yes | 8 |
| AFM45L-HN0905-D125-B40-Z10 | 125 | 40 | 63 | No | 10 |
| AFM45L-HN0905-D160-C40-Z12 | 160 | 40 | 63 | No | 12 |
| AFM45L-HN0905-D200-C60-Z16 | 200 | 60 | 63 | No | 16 |
| AKKO code | Hexagon Screw |
|---|---|
| AFM45-HN0905-D050-A22-Z05-H | 2407-M10x30 |
| AFM45-HN0905-D063-A22-Z06-H | 2407-M10x30 |
| AFM45-HN0905-D080-A27-Z07-H | 2510-M12x35 |
| AFM45-HN0905-D125-B40-Z10 | – |
| AFM45-HN0905-D160-C40-Z12 | – |
| AFM45-HN0905-D200-C60-Z16 | – |
| AFM45L-HN0905-D100-A32-Z08-H | 2514-M16x35 |
| AFM45L-HN0905-D125-B40-Z10 | – |
| AFM45L-HN0905-D160-C40-Z12 | – |
| AFM45L-HN0905-D200-C60-Z16 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
