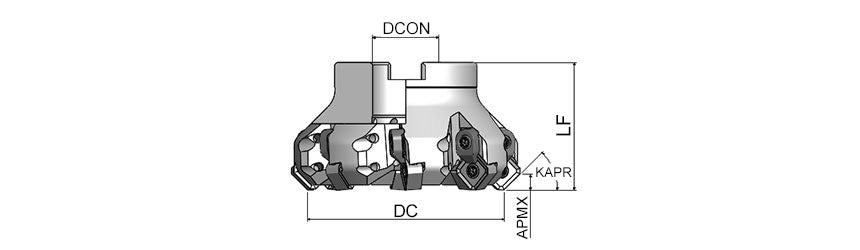

AKKO AFM45CL-SN12 C-System Face Mill - dimension drawing
AKKO AFM45CL-SN12 C-System Face Mill - dimension drawing
AKKO

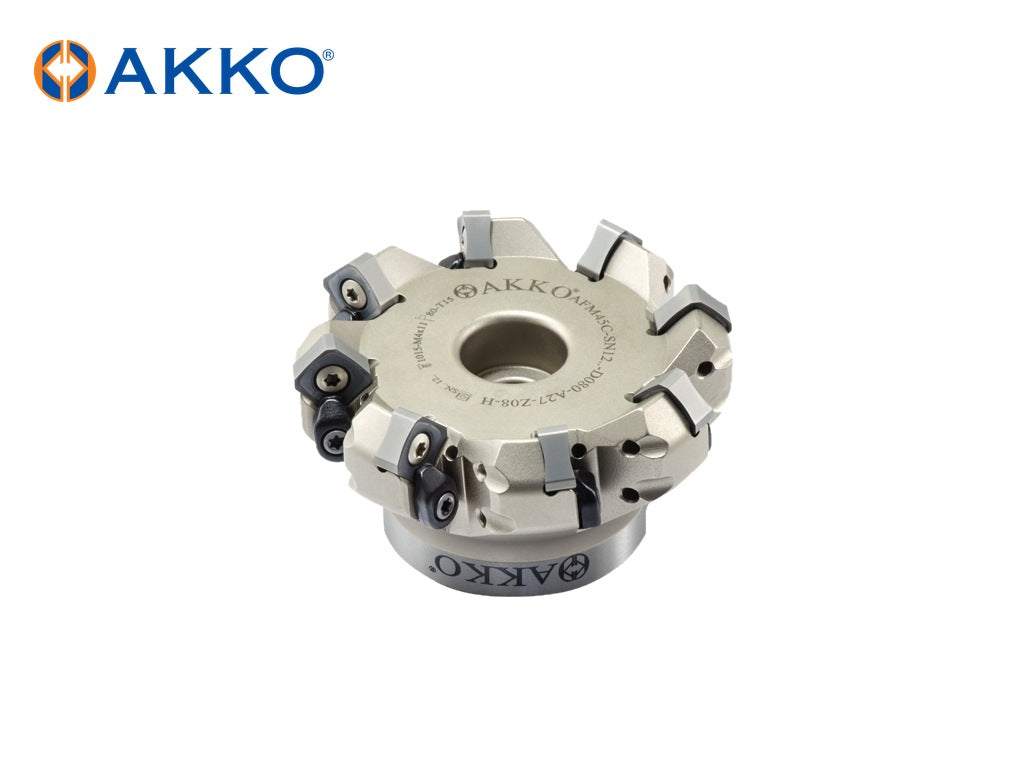

AKKO AFM45CL-SN12 C-System Face Mill

Out of stock
SKU: AFM45C-SN12..-D050-A22-Z04-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAFM45C-SN12..-D050-A22-Z04-H SKUAFM45C-SN12..-D050-A22-Z04-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AFM45CL-SN12 – C-System Face Mill from the AKKO C-System Face Mills (Arbor Type) range. For inserts: SNMX 1206.., SNMX; SE.. 1206.. 17 sizes listed below.

Specifications

  • Maximum Depth of Cut (APMX): 6 mm
  • Insert Size: 1206..

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Coolant Through Number of Flutes (ZEFP) Insert Type
AFM45C-SN12..-D050-A22-Z04-H 50 22 42 Yes 4 SNMX
AFM45C-SN12..-D050-A22-Z05-H 50 22 42 Yes 5 SNMX
AFM45C-SN12..-D063-A22-Z06-H 63 22 42 Yes 6 SNMX
AFM45C-SN12..-D063-A22-Z07-H 63 22 42 Yes 7 SNMX
AFM45C-SN12..-D080-A27-Z07-H 80 27 52 Yes 7 SNMX
AFM45C-SN12..-D080-A27-Z08-H 80 27 52 Yes 8 SNMX
AFM45C-SN12..-D100-A32-Z08-H 100 32 52 Yes 8 SNMX
AFM45C-SN12..-D100-A32-Z10-H 100 32 52 Yes 10 SNMX
AFM45C-SN12..-D125-B40-Z11 125 40 65 No 11 SNMX
AFM45C-SN12..-D160-C40-Z12 160 40 65 No 12 SNMX
AFM45C-SN12..-D200-C60-Z14 200 60 65 No 14 SNMX
AFM45CL-SN12..-D050-A22-Z05-H 50 22 42 Yes 5 SNMX
AFM45CL-SN12..-D063-A22-Z07-H 63 22 42 Yes 7 SNMX
AFM45CL-SN12..-D080-A27-Z08-H 80 27 52 Yes 8 SNMX
AFM45CL-SN12..-D100-A32-Z10-H 100 32 52 Yes 10 SNMX
AFM45CL-SN12..-D125-B40-Z11 125 40 65 No 11 SNMX; SE..
AFM45CL-SN12..-D200-C60-Z14 200 60 65 No 14 SNMX; SE..

Spare parts (AKKO codes)

  • Clamp: ACK-05
  • Torx Key: 80-T15
AKKO code Torx Screw Torx Screw-2 Hexagon Screw
AFM45C-SN12..-D050-A22-Z04-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45C-SN12..-D050-A22-Z05-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45C-SN12..-D063-A22-Z06-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45C-SN12..-D063-A22-Z07-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45C-SN12..-D080-A27-Z07-H 1015-M4x11 4015-M4X11 2510-M12x35
AFM45C-SN12..-D080-A27-Z08-H 4015-M4X11 1015-M4x11 2510-M12x35
AFM45C-SN12..-D100-A32-Z08-H 1015-M4x11 4015-M4X11 2514-M16x35
AFM45C-SN12..-D100-A32-Z10-H 1015-M4x11 4015-M4X11 2514-M16x35
AFM45C-SN12..-D125-B40-Z11 1015-M4x11 4015-M4X11 –
AFM45C-SN12..-D160-C40-Z12 1015-M4x11 4015-M4X11 –
AFM45C-SN12..-D200-C60-Z14 1015-M4x11 4015-M4X11 –
AFM45CL-SN12..-D050-A22-Z05-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45CL-SN12..-D063-A22-Z07-H 1015-M4x11 4015-M4X11 2407-M10x30
AFM45CL-SN12..-D080-A27-Z08-H 1015-M4x11 4015-M4X11 2510-M12x35
AFM45CL-SN12..-D100-A32-Z10-H 1015-M4x11 4015-M4X11 2514-M16x35
AFM45CL-SN12..-D125-B40-Z11 1015-M4x11 4015-M4X11 –
AFM45CL-SN12..-D200-C60-Z14 1015-M4x11 4015-M4X11 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
