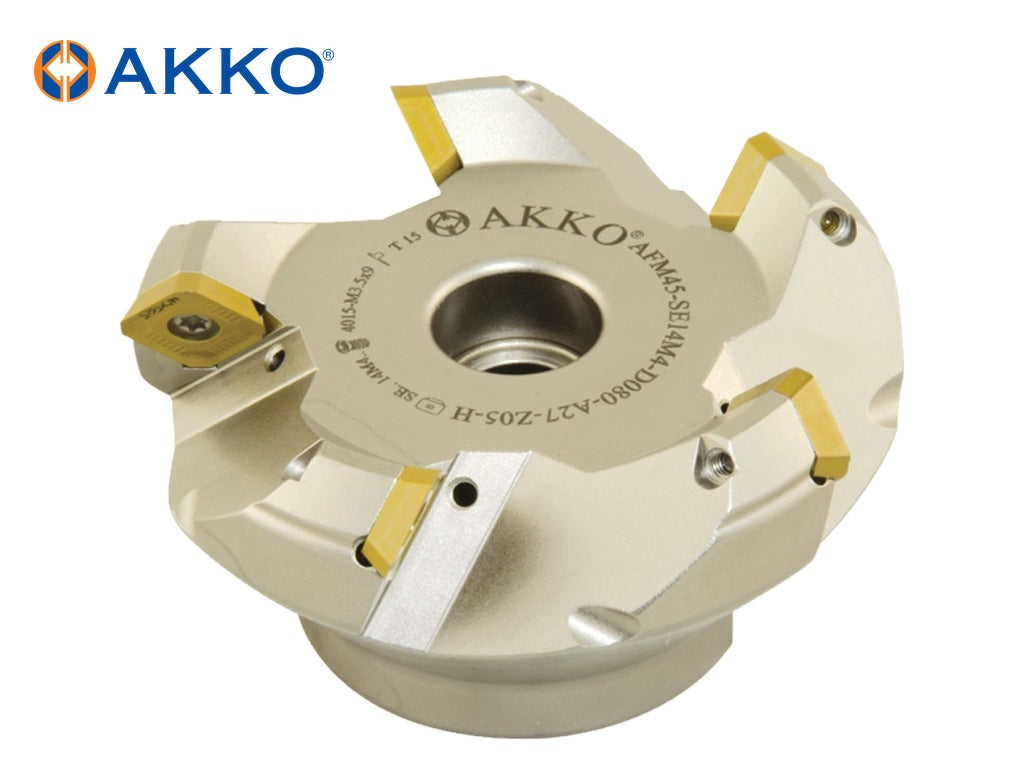

AKKO AFM45-SE14M4 – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: SE.. 14M4.. 5 sizes listed below.

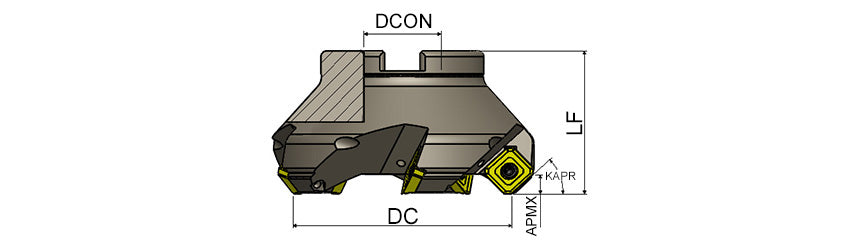

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Coolant Through | Number of Flutes (ZEFP) |
|---|---|---|---|---|---|
| AFM45-SE14M4-D063-A22-Z04-H | 63 | 22 | 40 | Yes | 4 |
| AFM45-SE14M4-D080-A27-Z05-H | 80 | 27 | 50 | Yes | 5 |
| AFM45-SE14M4-D100-A32-Z05-H | 100 | 32 | 50 | Yes | 5 |
| AFM45-SE14M4-D125-B40-Z06 | 125 | 40 | 63 | No | 6 |
| AFM45-SE14M4-D160-C40-Z07 | 160 | 40 | 63 | No | 7 |
| AKKO code | Hexagon Screw |
|---|---|
| AFM45-SE14M4-D063-A22-Z04-H | 2407-M10x30 |
| AFM45-SE14M4-D080-A27-Z05-H | 2510-M12x35 |
| AFM45-SE14M4-D100-A32-Z05-H | 2514-M16x35 |
| AFM45-SE14M4-D125-B40-Z06 | – |
| AFM45-SE14M4-D160-C40-Z07 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
