This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

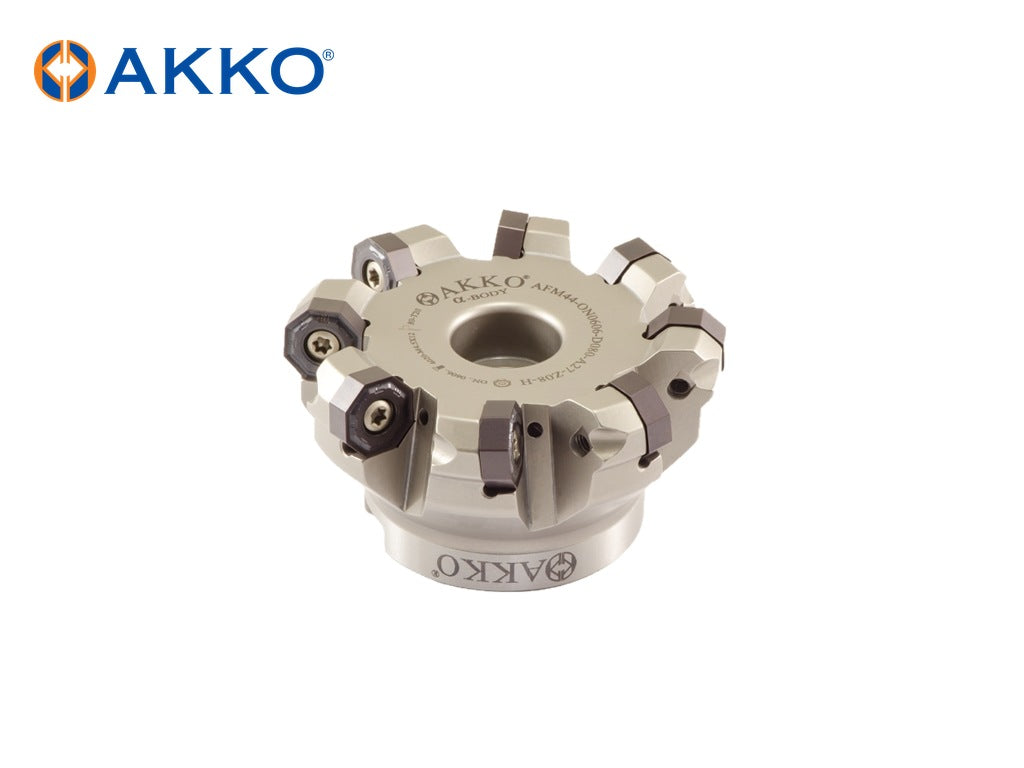

AKKO AFM44-ON – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: ONHX 0606.. 7 sizes listed below.

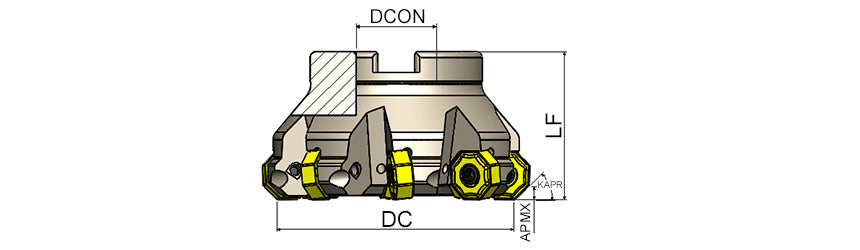

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Number of Flutes (ZEFP) |
|---|---|---|---|---|
| AFM44-ON0606-D063-A22-Z05-H | 63 | 22 | 40 | 5 |
| AFM44-ON0606-D063-A22-Z06-H | 63 | 22 | 40 | 6 |
| AFM44-ON0606-D080-A27-Z08-H | 80 | 27 | 50 | 8 |
| AFM44-ON0606-D080-B27-Z06-H | 80 | 27 | 50 | 6 |
| AFM44-ON0606-D100-A32-Z10-H | 100 | 32 | 50 | 10 |
| AFM44-ON0606-D100-B32-Z07-H | 100 | 32 | 50 | 7 |
| AFM44-ON0606-D125-B40-Z08-H | 125 | 40 | 63 | 8 |
| AKKO code | Hexagon Screw |
|---|---|
| AFM44-ON0606-D063-A22-Z05-H | 2407-M10x30 |
| AFM44-ON0606-D063-A22-Z06-H | 2407-M10x30 |
| AFM44-ON0606-D080-A27-Z08-H | 2510-M12x35 |
| AFM44-ON0606-D080-B27-Z06-H | – |
| AFM44-ON0606-D100-A32-Z10-H | 2514-M16x35 |
| AFM44-ON0606-D100-B32-Z07-H | – |
| AFM44-ON0606-D125-B40-Z08-H | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
