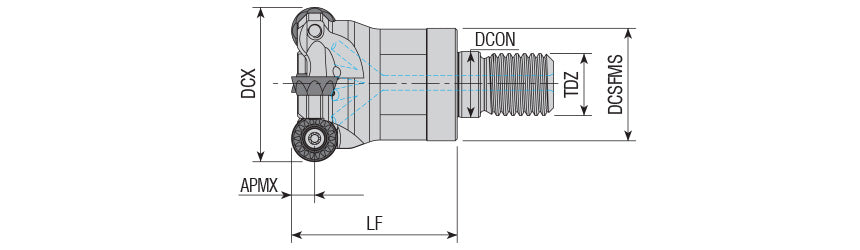

AKKO AEMR-RP S-System Face and Copy Modular End Mill - dimension drawing
AKKO AEMR-RP S-System Face and Copy Modular End Mill - dimension drawing
AKKO

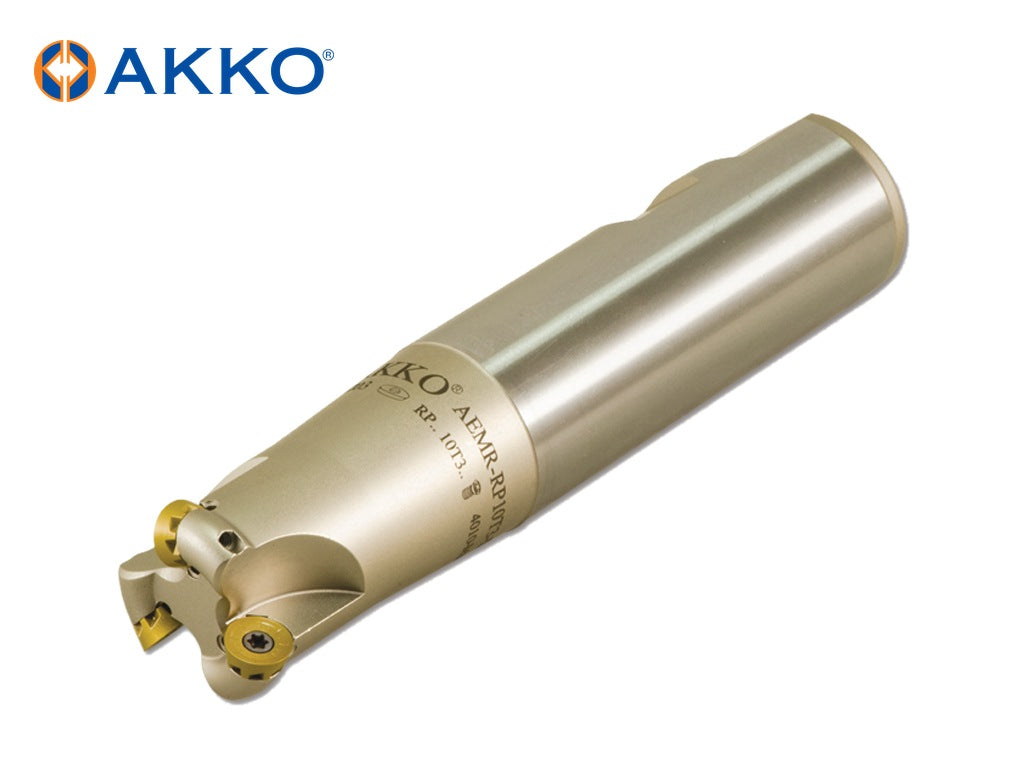

AKKO AEMR-RP S-System Face and Copy Modular End Mill

Out of stock
SKU: AEMR-RP08T2M-D20-M10-L30-Z02-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEMR-RP08T2M-D20-M10-L30-Z02-H SKUAEMR-RP08T2M-D20-M10-L30-Z02-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEMR-RP – S-System Face and Copy Modular End Mill from the AKKO S-System Face and Copy Modular End Mills (Screw Type) range. For inserts: RPMT 08T2.., RPMT 10T3.., RPMT 1204.., RPMW 10T3.. 9 sizes listed below.

Specifications

  • Coolant Through: Yes

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Insert Style Number of Flutes (ZEFP) Insert Size Thread Diameter Size (TDZ) Contact Surface Diameter Machine Side (DCSFMS, mm) Axial Depth of Cut (mm)
AEMR-RP08T2M-D20-M10-L30-Z02-H 20 10.5 30 RPMT 2 08T2.. M10 18 4
AEMR-RP10T3A-D32-M16-L43-Z04-H 32 17 43 RPMW 4 10T3.. M16 29 5
AEMR-RP10T3A-D42-M16-L43-Z05-H 42 17 43 RPMW 5 10T3.. M16 29 5
AEMR-RP10T3K-D32-M16-L43-Z04-H 32 17 43 RPMT 4 10T3.. M16 29 5
AEMR-RP10T3K-D42-M16-L43-Z05-H 42 17 43 RPMT 5 10T3.. M16 29 5
AEMR-RP10T3M-D25-M12-L35-Z02-H 25 12.5 35 RPMT 2 10T3.. M12 21 5
AEMR-RP10T3M-D32-M16-L43-Z03-H 32 17 43 RPMT 3 10T3.. M16 29 5
AEMR-RP1204M-D32-M16-L43-Z03-H 32 17 43 RPMT 3 1204.. M16 29 6
AEMR-RP1204M-D40-M16-L43-Z04-H 40 17 43 RPMT 4 1204.. M16 29 6

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEMR-RP08T2M-D20-M10-L30-Z02-H 82-T08 3008-M2.5X6
AEMR-RP10T3A-D32-M16-L43-Z04-H 82-T15 4015-M3.5X9
AEMR-RP10T3A-D42-M16-L43-Z05-H 82-T15 4015-M3.5X9
AEMR-RP10T3K-D32-M16-L43-Z04-H 82-T10 4010-M3X7
AEMR-RP10T3K-D42-M16-L43-Z05-H 82-T10 4010-M3X7
AEMR-RP10T3M-D25-M12-L35-Z02-H 82-T15 4015-M3.5X9
AEMR-RP10T3M-D32-M16-L43-Z03-H 82-T15 4015-M3.5X9
AEMR-RP1204M-D32-M16-L43-Z03-H 82-T15 4015-M4X9
AEMR-RP1204M-D40-M16-L43-Z04-H 82-T15 4015-M4X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
