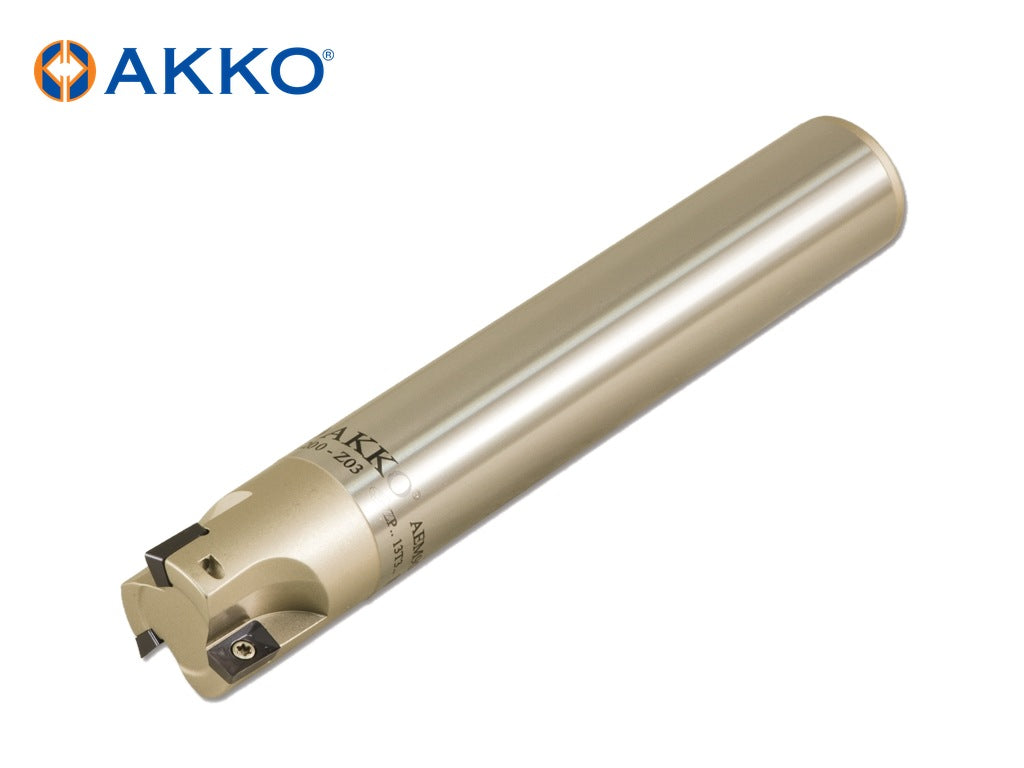

AKKO AEM90-ZP – S-System End Mill from the AKKO S-System End Mills range. For inserts: ZPMT 13T3.. 5 sizes listed below.
Specifications
-
Shank Type: Cylindrical
-
Side Cutting Angle (KAPR): 90°
-
Maximum Depth of Cut (APMX): 13 mm
-
Insert Size: 13T3..
-
Insert Style: ZPMT

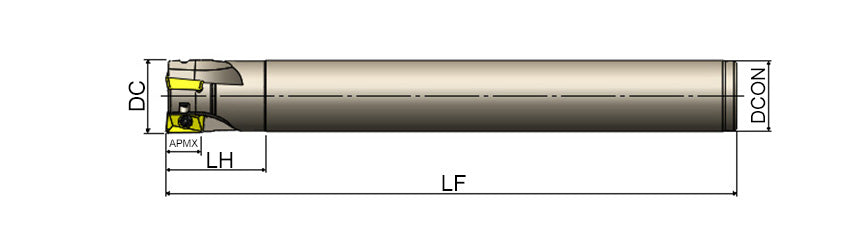

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Connection Diameter (DCON, mm) |
Functional Length (LF, mm) |
Number of Flutes (ZEFP) |
Head Length (LH, mm) |
| AEM90-ZP13T3-D26-C25-L200-Z02 |
26 |
25 |
200 |
2 |
35 |
| AEM90-ZP13T3-D26-C25-L200-Z03 |
26 |
25 |
200 |
3 |
35 |
| AEM90-ZP13T3-D26-C25-L250-Z02 |
26 |
25 |
250 |
2 |
35 |
| AEM90-ZP13T3-D33-C32-L200-Z03 |
33 |
32 |
200 |
3 |
40 |
| AEM90-ZP13T3-D33-C32-L250-Z03 |
33 |
32 |
250 |
3 |
40 |
Spare parts (AKKO codes)
-
Torx Key: 82-T10
-
Torx Screw: 4010-M3X8
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
