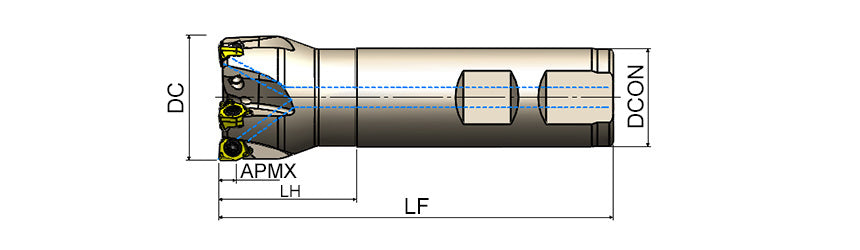

AKKO AEM90-WNG-H S-System End Mill - dimension drawing
AKKO AEM90-WNG-H S-System End Mill - dimension drawing
AKKO

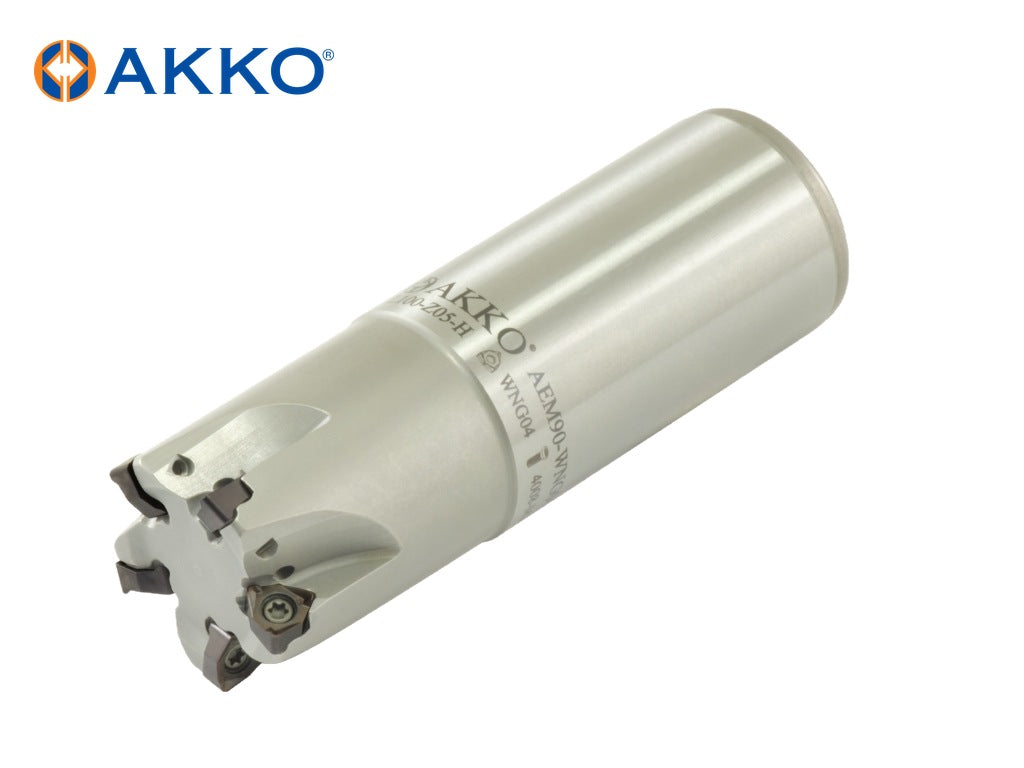

AKKO AEM90-WNG-H S-System End Mill

Out of stock
SKU: AEM90-WNG04-D16-W16-L73-Z02-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-WNG04-D16-W16-L73-Z02-H SKUAEM90-WNG04-D16-W16-L73-Z02-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-WNG-H – S-System End Mill from the AKKO S-System End Mills range. For inserts: WNGU 0403.., WNGU 0806.. 19 sizes listed below.

Specifications

  • Side Cutting Angle (KAPR): 90°
  • Insert Style: WNGU

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Insert Size Head Length (LH, mm)
AEM90-WNG04-D16-W16-L73-Z02-H 16 16 73 Weldon 4 2 0403.. –
AEM90-WNG04-D20-C20-L170-Z02-H 20 20 170 Cylindrical 4 2 0403.. 50
AEM90-WNG04-D20-C20-L170-Z03-H 20 20 170 Cylindrical 4 3 0403.. 50
AEM90-WNG04-D20-W20-L81-Z02-H 20 20 81 Weldon 4 2 0403.. 31
AEM90-WNG04-D20-W20-L81-Z03-H 20 20 81 Weldon 4 3 0403.. 31
AEM90-WNG04-D25-C25-L170-Z02-H 25 25 170 Cylindrical 4 2 0403.. 50
AEM90-WNG04-D25-C25-L170-Z03-H 25 25 170 Cylindrical 4 3 0403.. 50
AEM90-WNG04-D25-W25-L88-Z03-H 25 25 88 Weldon 4 3 0403.. 32
AEM90-WNG04-D25-W25-L88-Z04-H 25 25 88 Weldon 4 4 0403.. 32
AEM90-WNG04-D32-C25-L170-Z04-H 32 25 170 Cylindrical 4 4 0403.. 35
AEM90-WNG04-D32-C32-L170-Z03-H 32 32 170 Cylindrical 4 3 0403.. 50
AEM90-WNG04-D32-C32-L170-Z04-H 32 32 170 Cylindrical 4 4 0403.. 50
AEM90-WNG04-D32-W25-L100-Z05-H 32 25 100 Weldon 4 5 0403.. 35
AEM90-WNG04-D32-W32-L100-Z05-H 32 32 100 Weldon 4 5 0403.. 40
AEM90-WNG08-D25-W25-L88-Z02-H 25 25 88 Weldon 7.5 2 0806.. –
AEM90-WNG08-D32-C32-L170-Z02-H 32 32 170 Cylindrical 7.5 2 0806.. 50
AEM90-WNG08-D40-C32-L170-Z03-H 40 32 170 Cylindrical 7.5 3 0806.. 35
AEM90-WNG08-D40-W32-L100-Z03-H 40 32 100 Weldon 7.5 3 0806.. 35
AEM90-WNG08-D40-W40-L110-Z03-H 40 40 110 Weldon 7.5 3 0806.. 40

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-WNG04-D16-W16-L73-Z02-H 82-T08 3008-M3X6
AEM90-WNG04-D20-C20-L170-Z02-H 82-T08 3008-M3X6
AEM90-WNG04-D20-C20-L170-Z03-H 82-T08 3008-M3X6
AEM90-WNG04-D20-W20-L81-Z02-H 82-T08 3008-M3X6
AEM90-WNG04-D20-W20-L81-Z03-H 82-T08 3008-M3X6
AEM90-WNG04-D25-C25-L170-Z02-H 82-T08 3008-M3X6
AEM90-WNG04-D25-C25-L170-Z03-H 82-T08 3008-M3X6
AEM90-WNG04-D25-W25-L88-Z03-H 82-T08 3008-M3X6
AEM90-WNG04-D25-W25-L88-Z04-H 82-T08 3008-M3X6
AEM90-WNG04-D32-C25-L170-Z04-H 82-T08 3008-M3X6
AEM90-WNG04-D32-C32-L170-Z03-H 82-T08 3008-M3X6
AEM90-WNG04-D32-C32-L170-Z04-H 82-T08 3008-M3X6
AEM90-WNG04-D32-W25-L100-Z05-H 82-T08 3008-M3X6
AEM90-WNG04-D32-W32-L100-Z05-H 82-T08 3008-M3X6
AEM90-WNG08-D25-W25-L88-Z02-H 82-T15 4015-M4X11
AEM90-WNG08-D32-C32-L170-Z02-H 82-T15 4015-M4X11
AEM90-WNG08-D40-C32-L170-Z03-H 82-T15 4015-M4X11
AEM90-WNG08-D40-W32-L100-Z03-H 82-T15 4015-M4X11
AEM90-WNG08-D40-W40-L110-Z03-H 82-T15 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
