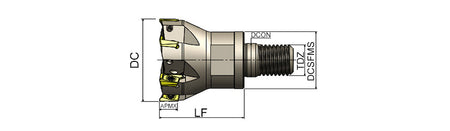

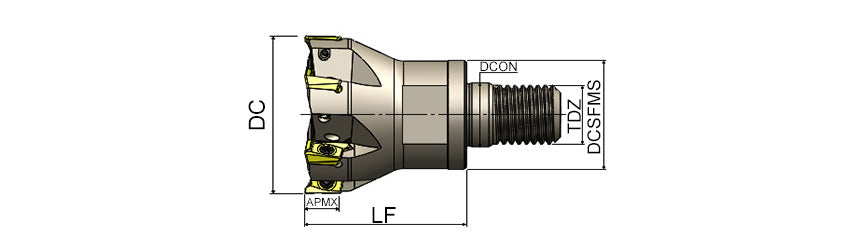

AKKO AEM90-RT S-System Modular End Mill - dimension drawing
AKKO AEM90-RT S-System Modular End Mill - dimension drawing
AKKO

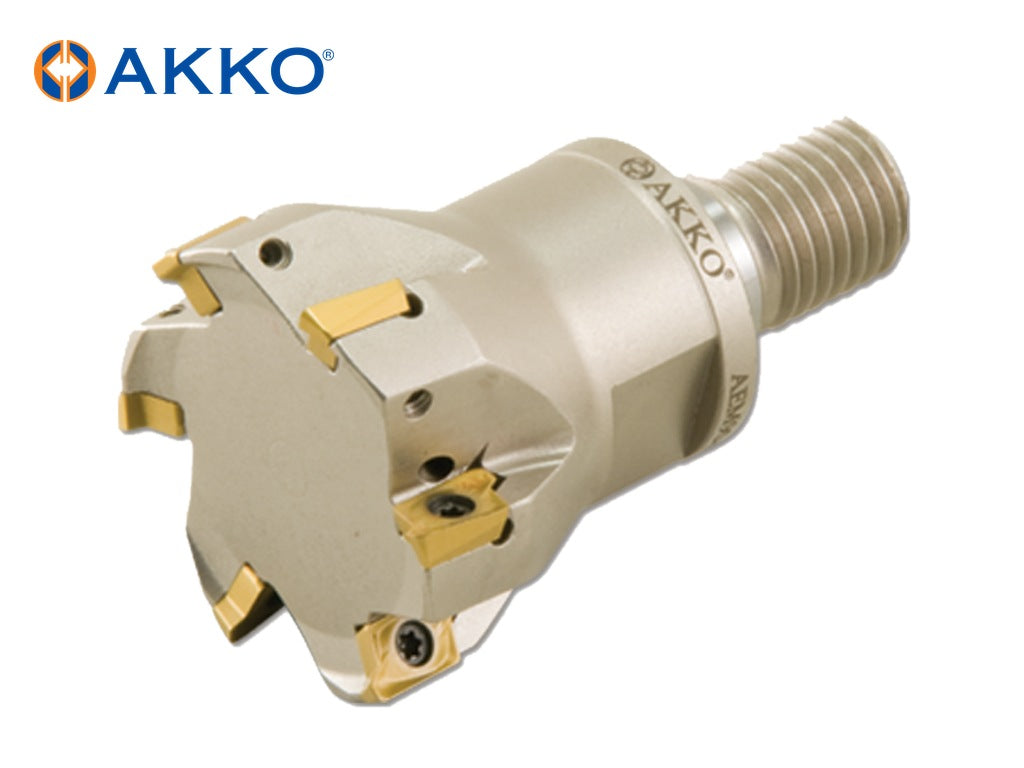

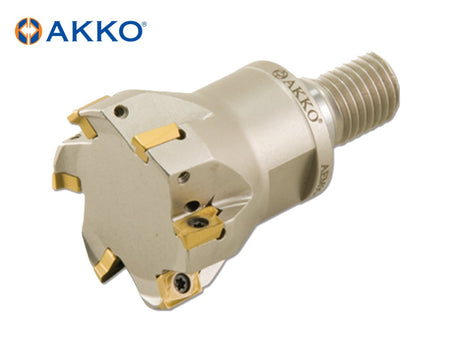

AKKO AEM90-RT S-System Modular End Mill

Out of stock
SKU: AEM90-RT07-D13-M06-L20-Z02-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-RT07-D13-M06-L20-Z02-H SKUAEM90-RT07-D13-M06-L20-Z02-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-RT – S-System Modular End Mill from the AKKO S-System Modular End Mills (Screw Type) range. For inserts: RT 0702.., RT 1003. 10 sizes listed below.

Specifications

  • Insert Style: RT
  • Cutting Angle: 90°
  • Coolant Through: Yes

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Number of Flutes (ZEFP) Insert Size Thread Diameter Size (TDZ) Contact Surface Diameter Machine Side (DCSFMS, mm) Axial Depth of Cut (mm)
AEM90-RT07-D13-M06-L20-Z02-H 13 6.5 20 2 0702.. M06 10 7
AEM90-RT10-D16-M08-L20-Z02-H 16 8.5 20 2 1003 M08 14.75 10
AEM90-RT10-D17-M08-L20-Z02-H 17 8.5 20 2 1003 M08 14.75 7
AEM90-RT10-D20-M10-L25-Z03-H 20 10.5 25 3 1003 M10 18 10
AEM90-RT10-D21-M10-L25-Z03-H 21 10.5 25 3 1003 M10 18 10
AEM90-RT10-D25-M12-L30-Z04-H 25 12.5 30 4 1003 M12 21 10
AEM90-RT10-D26-M12-L35-Z03-H 26 12.5 35 3 1003 M12 21 10
AEM90-RT10-D26-M12-L35-Z04-H 26 12.5 35 4 1003 M12 21 10
AEM90-RT10-D32-M16-L43-Z05-H 32 17 43 5 1003 M16 29 10
AEM90-RT10-D42-M16-L43-Z06-H 42 17 43 6 1003 M16 29 10

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-RT07-D13-M06-L20-Z02-H 82-T06 3006-M2X4
AEM90-RT10-D16-M08-L20-Z02-H 82-T08 3008-M2.5X6
AEM90-RT10-D17-M08-L20-Z02-H 82-T08 3008-M2.5X6
AEM90-RT10-D20-M10-L25-Z03-H 82-T08 3008-M2.5X6
AEM90-RT10-D21-M10-L25-Z03-H 82-T08 3008-M2.5X6
AEM90-RT10-D25-M12-L30-Z04-H 82-T08 3008-M2.5X6
AEM90-RT10-D26-M12-L35-Z03-H 82-T08 3008-M2.5X6
AEM90-RT10-D26-M12-L35-Z04-H 82-T08 3008-M2.5X6
AEM90-RT10-D32-M16-L43-Z05-H 82-T08 3008-M2.5X6
AEM90-RT10-D42-M16-L43-Z06-H 82-T08 3008-M2.5X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
