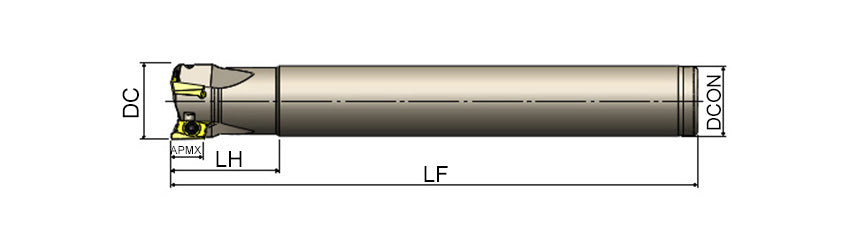

AKKO AEM90-RT S-System End Mill - dimension drawing

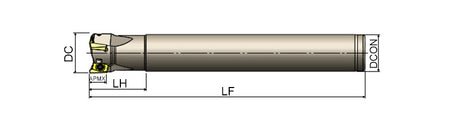

AKKO AEM90-RT S-System End Mill - dimension drawing
AKKO

AKKO AEM90-RT S-System End Mill

Out of stock
SKU: AEM90-RT07-D10-W10-L120-Z02
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-RT07-D10-W10-L120-Z02 SKUAEM90-RT07-D10-W10-L120-Z02

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

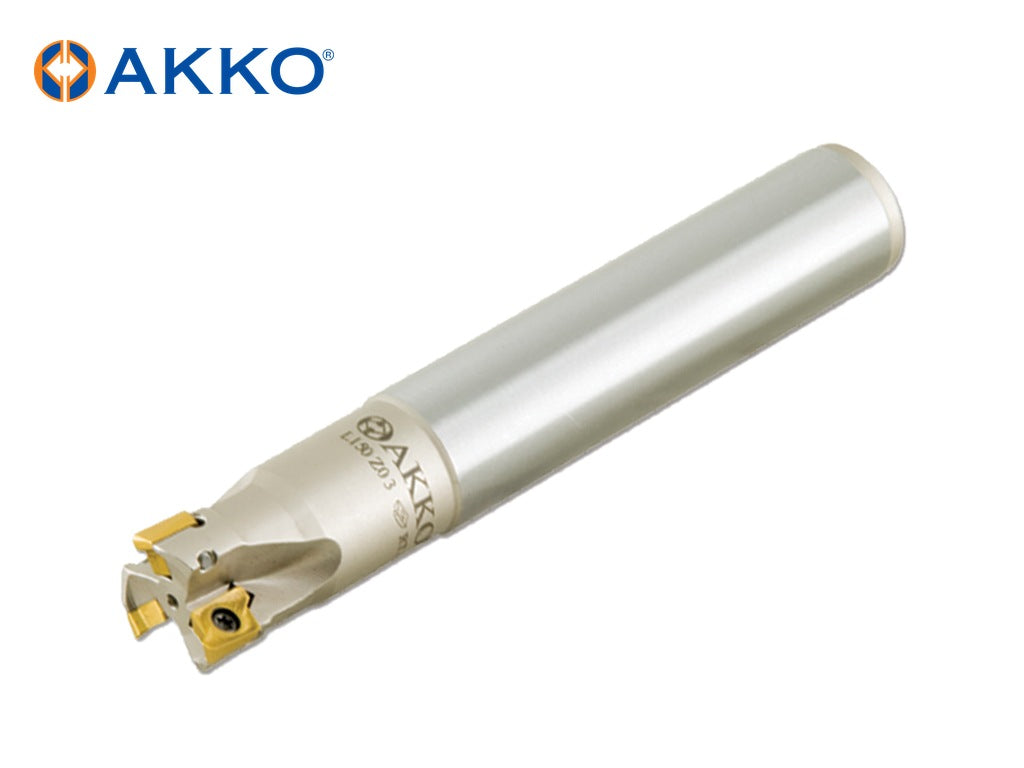

AKKO AEM90-RT – S-System End Mill from the AKKO S-System End Mills range. For inserts: RT 0702, RT 1003, RT 1304, RT 1606. 40 sizes listed below.

Specifications

  • Side Cutting Angle (KAPR): 90°
  • Insert Style: RT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Head Length (LH, mm) Insert Size
AEM90-RT07-D10-W10-L120-Z02 10 10 120 Weldon 7 2 30 0702
AEM90-RT07-D12-C12-L120-Z02 12 12 120 Cylindrical 7 2 30 0702
AEM90-RT07-D12-W12-L120-Z02 12 12 120 Weldon 7 2 30 0702
AEM90-RT07-D14-W12-L120-Z02 14 12 120 Weldon 7 2 30 0702
AEM90-RT10-D16-C15-L160-Z02 16 15 160 Cylindrical 10 2 30 1003
AEM90-RT10-D16-C16-L200-Z02 16 16 200 Cylindrical 10 2 100 1003
AEM90-RT10-D16-W16-L120-Z02-H 16 16 120 Weldon 10 2 30 1003
AEM90-RT10-D16-W16-L150-Z02 16 16 150 Weldon 10 2 30 1003
AEM90-RT10-D17-C16-L200-Z02 17 16 200 Cylindrical 10 2 30 1003
AEM90-RT10-D17-W16-L160-Z02 17 16 160 Weldon 10 2 30 1003
AEM90-RT10-D18-W16-L120-Z02-H 18 16 120 Weldon 10 2 30 1003
AEM90-RT10-D20-C19-L200-Z03 20 19 200 Cylindrical 10 3 30 1003
AEM90-RT10-D20-C20-L110-Z03 20 20 110 Cylindrical 10 3 30 1003
AEM90-RT10-D20-C20-L200-Z03 20 20 200 Cylindrical 10 3 100 1003
AEM90-RT10-D20-W20-L120-Z03-H 20 20 120 Weldon 10 3 30 1003
AEM90-RT10-D20-W20-L150-Z03 20 20 150 Weldon 10 3 50 1003
AEM90-RT10-D21-W20-L200-Z03 21 20 200 Weldon 10 3 30 1003
AEM90-RT10-D22-C20-L150-Z03 22 20 150 Cylindrical 10 3 30 1003
AEM90-RT10-D22-C20-L200-Z03 22 20 200 Cylindrical 10 3 30 1003
AEM90-RT10-D22-W20-L120-Z03-H 22 20 120 Weldon 10 3 30 1003
AEM90-RT10-D25-C25-L200-Z04 25 25 200 Cylindrical 10 4 100 1003
AEM90-RT10-D25-W25-L120-Z04-H 25 25 120 Weldon 10 4 40 1003
AEM90-RT10-D25-W25-L150-Z04 25 25 150 Weldon 10 4 50 1003
AEM90-RT10-D26-C25-L250-Z04 26 25 250 Cylindrical 10 4 32 1003
AEM90-RT10-D32-C32-L200-Z05 32 32 200 Cylindrical 10 5 100 1003
AEM90-RT10-D32-W32-L120-Z05-H 32 32 120 Weldon 10 5 50 1003
AEM90-RT10-D32-W32-L150-Z05 32 32 150 Weldon 10 5 50 1003
AEM90-RT10-D33-C32-L250-Z04 33 32 250 Cylindrical 10 4 32 1003
AEM90-RT13-D32-C32-L250-Z04 32 32 250 Cylindrical 13 4 50 1304
AEM90-RT16-D25-C25-L200-Z02 25 25 200 Cylindrical 16 2 100 1606
AEM90-RT16-D25-W25-L120-Z02-H 25 25 120 Weldon 16 2 40 1606
AEM90-RT16-D25-W25-L150-Z02 25 25 150 Weldon 16 2 50 1606
AEM90-RT16-D32-C32-L200-Z03 32 32 200 Cylindrical 16 3 100 1606
AEM90-RT16-D32-C32-L250-Z03 32 32 250 Cylindrical 16 3 100 1606
AEM90-RT16-D32-C32-L270-Z03 32 32 270 Cylindrical 16 3 100 1606
AEM90-RT16-D32-W32-L120-Z03-H 32 32 120 Weldon 16 3 50 1606
AEM90-RT16-D32-W32-L150-Z03 32 32 150 Weldon 16 3 50 1606
AEM90-RT16-D40-C32-L200-Z04 40 32 200 Cylindrical 16 4 50 1606
AEM90-RT16-D40-W32-L120-Z04-H 40 32 120 Weldon 16 4 50 1606
AEM90-RT16-D40-W32-L150-Z04 40 32 150 Weldon 16 4 50 1606

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-RT07-D10-W10-L120-Z02 82-T06 3006-M2X4
AEM90-RT07-D12-C12-L120-Z02 82-T06 3006-M2X4
AEM90-RT07-D12-W12-L120-Z02 82-T06 3006-M2X4
AEM90-RT07-D14-W12-L120-Z02 82-T06 3006-M2X4
AEM90-RT10-D16-C15-L160-Z02 82-T08 3008-M2.5X6
AEM90-RT10-D16-C16-L200-Z02 82-T08 3008-M2.5X6
AEM90-RT10-D16-W16-L120-Z02-H 82-T08 3008-M2.5X6
AEM90-RT10-D16-W16-L150-Z02 82-T08 3008-M2.5X6
AEM90-RT10-D17-C16-L200-Z02 82-T08 3008-M2.5X6
AEM90-RT10-D17-W16-L160-Z02 82-T08 3008-M2.5X6
AEM90-RT10-D18-W16-L120-Z02-H 82-T08 3008-M2.5X6
AEM90-RT10-D20-C19-L200-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D20-C20-L110-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D20-C20-L200-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D20-W20-L120-Z03-H 82-T08 3008-M2.5X6
AEM90-RT10-D20-W20-L150-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D21-W20-L200-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D22-C20-L150-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D22-C20-L200-Z03 82-T08 3008-M2.5X6
AEM90-RT10-D22-W20-L120-Z03-H 82-T08 3008-M2.5X6
AEM90-RT10-D25-C25-L200-Z04 82-T08 3008-M2.5X6
AEM90-RT10-D25-W25-L120-Z04-H 82-T08 3008-M2.5X6
AEM90-RT10-D25-W25-L150-Z04 82-T08 3008-M2.5X6
AEM90-RT10-D26-C25-L250-Z04 82-T08 3008-M2.5X6
AEM90-RT10-D32-C32-L200-Z05 82-T08 3008-M2.5X6
AEM90-RT10-D32-W32-L120-Z05-H 82-T08 3008-M2.5X6
AEM90-RT10-D32-W32-L150-Z05 82-T08 3008-M2.5X6
AEM90-RT10-D33-C32-L250-Z04 82-T08 3008-M2.5X6
AEM90-RT13-D32-C32-L250-Z04 82-T08 3008-M3X8
AEM90-RT16-D25-C25-L200-Z02 82-T15 4015-M4X9
AEM90-RT16-D25-W25-L120-Z02-H 82-T15 4015-M4X9
AEM90-RT16-D25-W25-L150-Z02 82-T15 4015-M4X9
AEM90-RT16-D32-C32-L200-Z03 82-T15 4015-M4X9
AEM90-RT16-D32-C32-L250-Z03 82-T15 4015-M4X9
AEM90-RT16-D32-C32-L270-Z03 82-T15 4015-M4X9
AEM90-RT16-D32-W32-L120-Z03-H 82-T15 4015-M4X9
AEM90-RT16-D32-W32-L150-Z03 82-T15 4015-M4X9
AEM90-RT16-D40-C32-L200-Z04 82-T15 4015-M4X11
AEM90-RT16-D40-W32-L120-Z04-H 82-T15 4015-M4X11
AEM90-RT16-D40-W32-L150-Z04 82-T15 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
