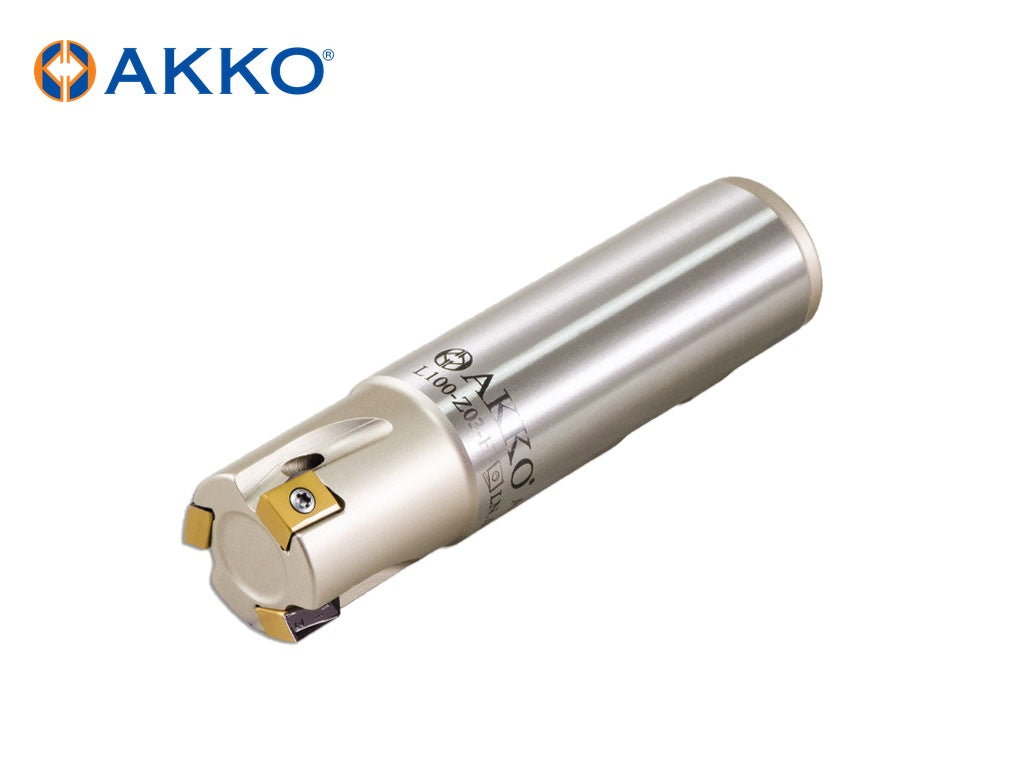

AKKO AEM90-LN08-13 – S-System End Mill from the AKKO S-System End Mills range. For inserts: LNMT 0804.., LNMT 1306.. 8 sizes listed below.

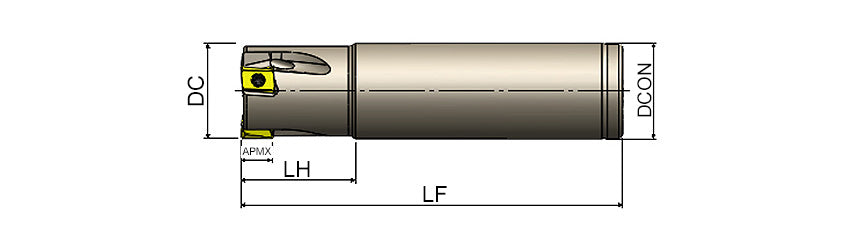

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Shank Type | Maximum Depth of Cut (APMX, mm) | Number of Flutes (ZEFP) | Head Length (LH, mm) | Insert Size |
|---|---|---|---|---|---|---|---|---|
| AEM90-LN08-D16-W16-L100-Z02-H | 16 | 16 | 100 | Weldon | 8 | 2 | 28 | 0804.. |
| AEM90-LN08-D16-W16-L150-Z02 | 16 | 16 | 150 | Weldon | 8 | 2 | 40 | 0804.. |
| AEM90-LN08-D20-W20-L100-Z03-H | 20 | 20 | 100 | Weldon | 8 | 3 | 28 | 0804.. |
| AEM90-LN08-D25-W25-L100-Z03-H | 25 | 25 | 100 | Weldon | 8 | 3 | 30 | 0804.. |
| AEM90-LN08-D32-W32-L110-Z05-H | 32 | 32 | 110 | Weldon | 8 | 5 | 30 | 0804.. |
| AEM90-LN1306-D32-C32-L110-Z03-H | 32 | 32 | 110 | Cylindrical | 12.5 | 3 | 40 | 1306.. |
| AEM90-LN1306-D32-W32-L150-Z03 | 32 | 32 | 150 | Weldon | 12.5 | 3 | 50 | 1306.. |
| AEM90-LN1306-D40-W32-L150-Z04 | 40 | 32 | 150 | Weldon | 12.5 | 4 | 35 | 1306.. |
| AKKO code | Torx Key | Torx Screw |
|---|---|---|
| AEM90-LN08-D16-W16-L100-Z02-H | 82-T07 | 1707-U4-48x6 |
| AEM90-LN08-D16-W16-L150-Z02 | 82-T07 | 1707-U4-48x6 |
| AEM90-LN08-D20-W20-L100-Z03-H | 82-T07 | 1707-U4-48x6.5 |
| AEM90-LN08-D25-W25-L100-Z03-H | 82-T07 | 1707-U4-48x8.2 |
| AEM90-LN08-D32-W32-L110-Z05-H | 82-T07 | 1707-U4-48x8.2 |
| AEM90-LN1306-D32-C32-L110-Z03-H | – | – |
| AEM90-LN1306-D32-W32-L150-Z03 | 82-T15 | 4015-M4X11 |
| AEM90-LN1306-D40-W32-L150-Z04 | 82-T15 | 4015-M4X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
