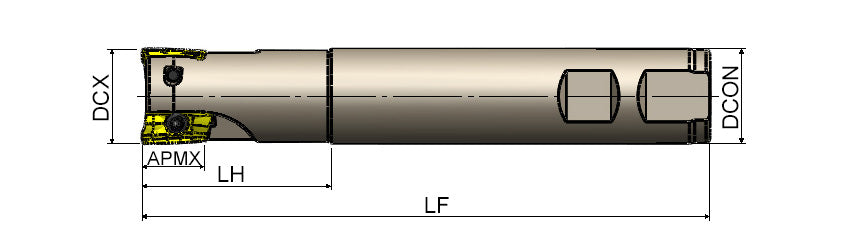

AKKO AEM90-BD S-System End Mill - dimension drawing
AKKO AEM90-BD S-System End Mill - dimension drawing
AKKO

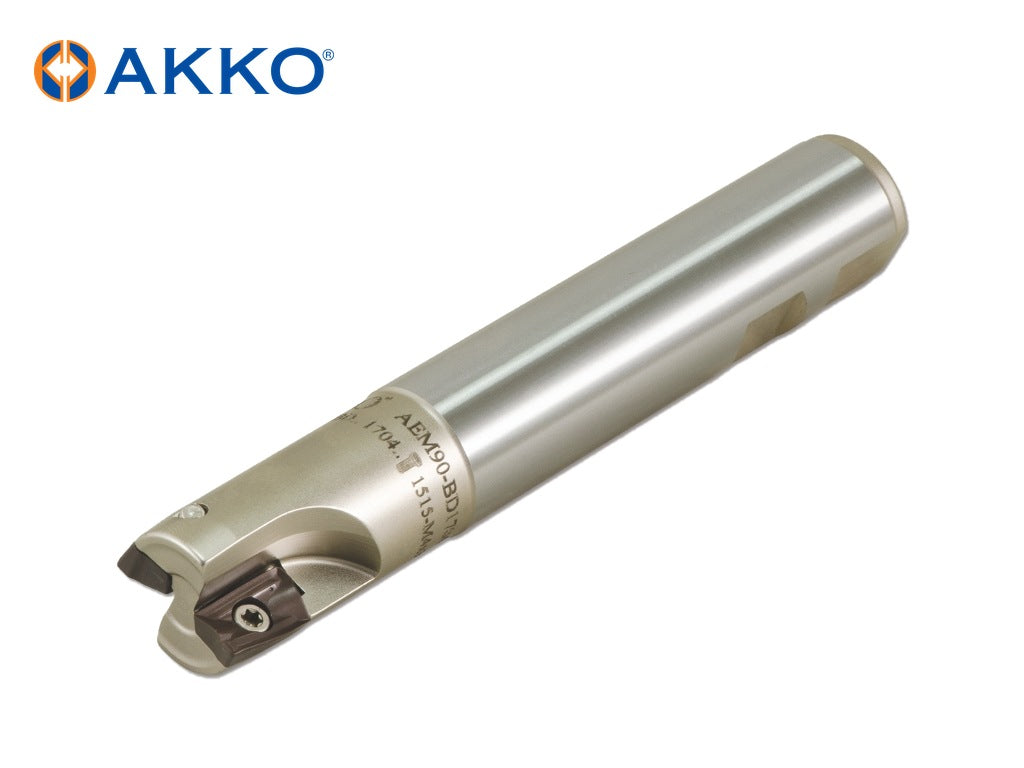

AKKO AEM90-BD S-System End Mill

Out of stock
SKU: AEM90-BD11T3-D16-C15-L180-Z02
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-BD11T3-D16-C15-L180-Z02 SKUAEM90-BD11T3-D16-C15-L180-Z02

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-BD – S-System End Mill from the AKKO S-System End Mills range. For inserts: BDMT 11T3.., BDMT 1704.. 41 sizes listed below.

Specifications

  • Side Cutting Angle (KAPR): 90°
  • Insert Style: BDMT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Head Length (LH, mm) Insert Size
AEM90-BD11T3-D16-C15-L180-Z02 16 15 180 Cylindrical 10 2 50 11T3..
AEM90-BD11T3-D16-C16-L100-Z02-H 16 16 100 Cylindrical 10 2 30 11T3..
AEM90-BD11T3-D16-C16-L160-Z02-H 16 16 160 Cylindrical 10 2 60 11T3..
AEM90-BD11T3-D16-W16-L100-Z02-H 16 16 100 Weldon 10 2 30 11T3..
AEM90-BD11T3-D16-W16-L150-Z02 16 16 150 Weldon 10 2 50 11T3..
AEM90-BD11T3-D17-C16-L180-Z02 17 16 180 Cylindrical 10 2 25 11T3..
AEM90-BD11T3-D17-W16-L150-Z02 17 16 150 Weldon 10 2 25 11T3..
AEM90-BD11T3-D18-W16-L100-Z02 18 16 100 Weldon 10 2 25 11T3..
AEM90-BD11T3-D18-W16-L100-Z02-H 18 16 100 Weldon 10 2 25 11T3..
AEM90-BD11T3-D20-C20-L110-Z03-H 20 20 110 Cylindrical 10 3 30 11T3..
AEM90-BD11T3-D20-C20-L170-Z03-H 20 20 170 Cylindrical 10 3 60 11T3..
AEM90-BD11T3-D20-W16-L61-Z03 20 16 61 Weldon 10 3 26 11T3..
AEM90-BD11T3-D20-W20-L100-Z02-H 20 20 100 Weldon 10 2 30 11T3..
AEM90-BD11T3-D20-W20-L100-Z03-H 20 20 100 Weldon 10 3 30 11T3..
AEM90-BD11T3-D20-W20-L150-Z02 20 20 150 Weldon 10 2 50 11T3..
AEM90-BD11T3-D20-W20-L150-Z03 20 20 150 Weldon 10 3 50 11T3..
AEM90-BD11T3-D20-W20-L150-Z03-H 20 20 150 Weldon 10 3 50 11T3..
AEM90-BD11T3-D20-W20-L81-Z03-H 20 20 81 Weldon 10 3 30 11T3..
AEM90-BD11T3-D21-C20-L200-Z02 21 20 200 Cylindrical 10 2 25 11T3..
AEM90-BD11T3-D21-W20-L150-Z03 21 20 150 Weldon 10 3 25 11T3..
AEM90-BD11T3-D22-W20-L090-Z02-H 22 20 90 Weldon 10 2 25 11T3..
AEM90-BD11T3-D22-W20-L100-Z03-H 22 20 100 Weldon 10 3 30 11T3..
AEM90-BD11T3-D25-C20-L120-Z03-H 25 20 120 Cylindrical 10 3 30 11T3..
AEM90-BD11T3-D25-C25-L120-Z03-H 25 25 120 Cylindrical 10 3 30 11T3..
AEM90-BD11T3-D25-W25-L100-Z03-H 25 25 100 Weldon 10 3 30 11T3..
AEM90-BD11T3-D25-W25-L150-Z03 25 25 150 Weldon 10 3 50 11T3..
AEM90-BD11T3-D26-C25-L250-Z02 26 25 250 Cylindrical 10 2 35 11T3..
AEM90-BD11T3-D26-W25-L150-Z03 26 25 150 Weldon 10 3 35 11T3..
AEM90-BD11T3-D32-C32-L130-Z04-H 32 32 130 Cylindrical 10 4 40 11T3..
AEM90-BD11T3-D32-W32-L110-Z04-H 32 32 110 Weldon 10 4 40 11T3..
AEM90-BD11T3-D32-W32-L150-Z04 32 32 150 Weldon 10 4 50 11T3..
AEM90-BD11T3-D40-W32-L110-Z04-H 40 32 110 Weldon 10 4 35 11T3..
AEM90-BD1704-D25-C25-L210-Z02-H 25 25 210 Cylindrical 15.7 2 100 1704..
AEM90-BD1704-D25-W25-L100-Z02-H 25 25 100 Weldon 15.7 2 35 1704..
AEM90-BD1704-D25-W25-L150-Z02 25 25 150 Weldon 15.7 2 50 1704..
AEM90-BD1704-D32-C32-L130-Z03-H 32 32 130 Cylindrical 15.7 3 40 1704..
AEM90-BD1704-D32-W32-L110-Z03-H 32 32 110 Weldon 15.7 3 40 1704..
AEM90-BD1704-D32-W32-L130-Z03-H 32 32 130 Weldon 15.7 3 40 1704..
AEM90-BD1704-D32-W32-L150-Z03 32 32 150 Weldon 15.7 3 50 1704..
AEM90-BD1704-D40-W32-L110-Z04-H 40 32 110 Weldon 15.7 4 40 1704..
AEM90-BD1704-D40-W32-L150-Z04 40 32 150 Weldon 15.7 4 40 1704..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-BD11T3-D16-C15-L180-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D16-C16-L100-Z02-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D16-C16-L160-Z02-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D16-W16-L100-Z02-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D16-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D17-C16-L180-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D17-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D18-W16-L100-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D18-W16-L100-Z02-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D20-C20-L110-Z03-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D20-C20-L170-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D20-W16-L61-Z03 82-T08 3008-M2.5X6
AEM90-BD11T3-D20-W20-L100-Z02-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D20-W20-L100-Z03-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D20-W20-L150-Z02 82-T08 3008-M2.5X5
AEM90-BD11T3-D20-W20-L150-Z03 82-T08 3008-M2.5X6
AEM90-BD11T3-D20-W20-L150-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D20-W20-L81-Z03-H 82-T08 3008-M2.5X5
AEM90-BD11T3-D21-C20-L200-Z02 82-T08 3008-M2.5X6
AEM90-BD11T3-D21-W20-L150-Z03 82-T08 3008-M2.5X6
AEM90-BD11T3-D22-W20-L090-Z02-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D22-W20-L100-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D25-C20-L120-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D25-C25-L120-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D25-W25-L100-Z03-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D25-W25-L150-Z03 82-T08 3008-M2.5X6
AEM90-BD11T3-D26-C25-L250-Z02 82-T08 3008-M2.5X6
AEM90-BD11T3-D26-W25-L150-Z03 82-T08 3008-M2.5X6
AEM90-BD11T3-D32-C32-L130-Z04-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D32-W32-L110-Z04-H 82-T08 3008-M2.5X6
AEM90-BD11T3-D32-W32-L150-Z04 82-T08 3008-M2.5X6
AEM90-BD11T3-D40-W32-L110-Z04-H 82-T08 3008-M2.5X6
AEM90-BD1704-D25-C25-L210-Z02-H 82-T15 4015-M4X8
AEM90-BD1704-D25-W25-L100-Z02-H 82-T15 4015-M4X8
AEM90-BD1704-D25-W25-L150-Z02 82-T15 4015-M4X8
AEM90-BD1704-D32-C32-L130-Z03-H 82-T15 4015-M4X8
AEM90-BD1704-D32-W32-L110-Z03-H 82-T15 4015-M4X8
AEM90-BD1704-D32-W32-L130-Z03-H 82-T15 4015-M4X8
AEM90-BD1704-D32-W32-L150-Z03 82-T15 4015-M4X8
AEM90-BD1704-D40-W32-L110-Z04-H 82-T15 4015-M4X8
AEM90-BD1704-D40-W32-L150-Z04 82-T15 4015-M4X8

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
