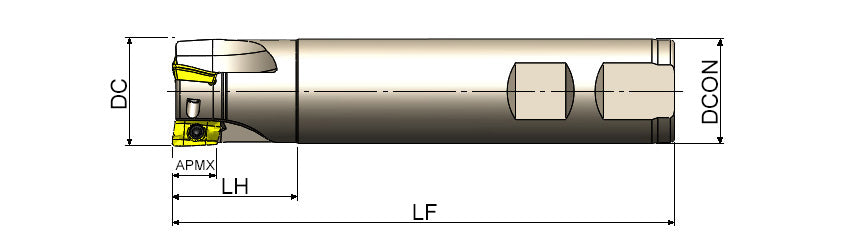

AKKO AEM90-AZ S-System End Mill - dimension drawing
AKKO AEM90-AZ S-System End Mill - dimension drawing
AKKO

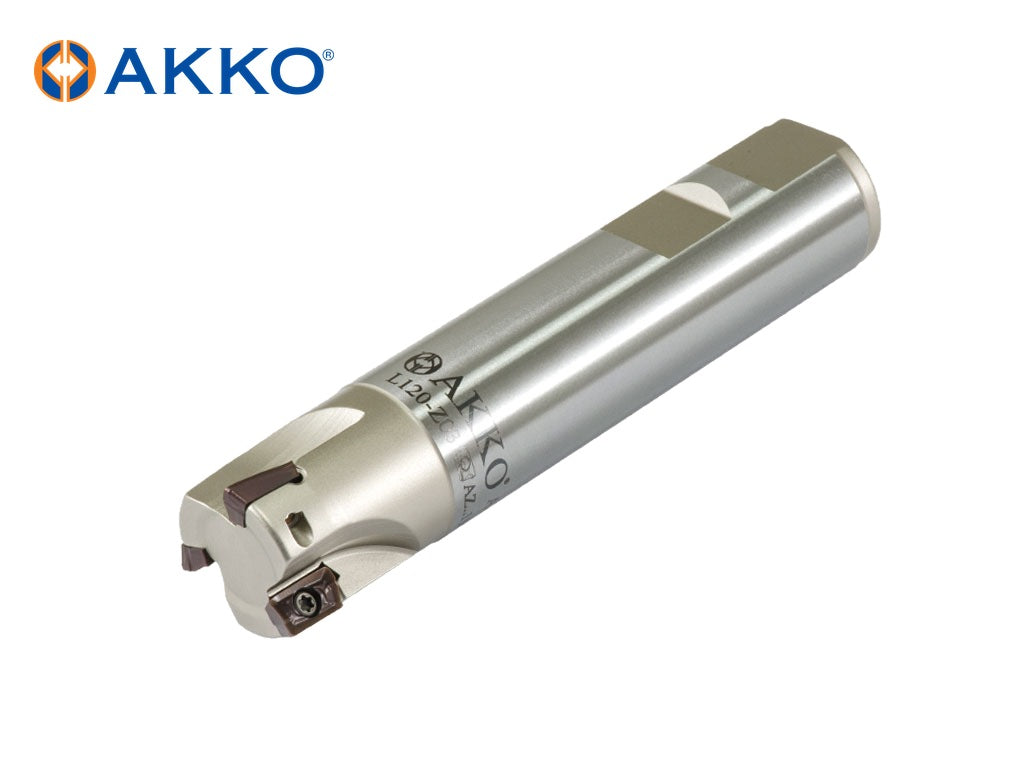

AKKO AEM90-AZ S-System End Mill

Out of stock
SKU: AEM90-AZ11-D12-W16-L90-Z01
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-AZ11-D12-W16-L90-Z01 SKUAEM90-AZ11-D12-W16-L90-Z01

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-AZ – S-System End Mill from the AKKO S-System End Mills range. For inserts: AZGT 1135.. 24 sizes listed below.

Specifications

  • Side Cutting Angle (KAPR): 90°
  • Maximum Depth of Cut (APMX): 11 mm
  • Insert Size: 1135..
  • Insert Style: AZGT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Number of Flutes (ZEFP) Head Length (LH, mm)
AEM90-AZ11-D12-W16-L90-Z01 12 16 90 Weldon 1 30
AEM90-AZ11-D16-C16-L200-Z02 16 16 200 Cylindrical 2 100
AEM90-AZ11-D16-W15-L170-Z02 16 15 170 Weldon 2 50
AEM90-AZ11-D16-W16-L100-Z02 16 16 100 Weldon 2 35
AEM90-AZ11-D16-W16-L150-Z02 16 16 150 Weldon 2 50
AEM90-AZ11-D17-C16-L150-Z02 17 16 150 Cylindrical 2 30
AEM90-AZ11-D17-C16-L180-Z02 17 16 180 Cylindrical 2 50
AEM90-AZ11-D17-W16-L100-Z02 17 16 100 Weldon 2 30
AEM90-AZ11-D18-W16-L120-Z02 18 16 120 Weldon 2 18
AEM90-AZ11-D20-C20-L200-Z03 20 20 200 Cylindrical 3 100
AEM90-AZ11-D20-W19-L170-Z03 20 19 170 Weldon 3 50
AEM90-AZ11-D20-W20-L110-Z02 20 20 110 Weldon 2 35
AEM90-AZ11-D21-C20-L150-Z03 21 20 150 Cylindrical 3 30
AEM90-AZ11-D21-C20-L180-Z03 21 20 180 Cylindrical 3 50
AEM90-AZ11-D21-W20-L110-Z03 21 20 110 Weldon 3 35
AEM90-AZ11-D22-C20-L150-Z02 22 20 150 Cylindrical 2 30
AEM90-AZ11-D25-C24-L180-Z04 25 24 180 Cylindrical 4 50
AEM90-AZ11-D25-W25-L110-Z04 25 25 110 Weldon 4 40
AEM90-AZ11-D26-C25-L250-Z02 26 25 250 Cylindrical 2 50
AEM90-AZ11-D26-W25-L120-Z03 26 25 120 Weldon 3 30
AEM90-AZ11-D26-W25-L120-Z04 26 25 120 Weldon 4 40
AEM90-AZ11-D28-C25-L180-Z03 28 25 180 Cylindrical 3 50
AEM90-AZ11-D28-C25-L250-Z02 28 25 250 Cylindrical 2 50
AEM90-AZ11-D33-W32-L130-Z04 33 32 130 Weldon 4 50

Spare parts (AKKO codes)

  • Torx Key: 82-T08
AKKO code Torx Screw
AEM90-AZ11-D12-W16-L90-Z01 3008-M2.5X5
AEM90-AZ11-D16-C16-L200-Z02 3008-M2.5X5
AEM90-AZ11-D16-W15-L170-Z02 3008-M2.5X5
AEM90-AZ11-D16-W16-L100-Z02 3008-M2.5X5
AEM90-AZ11-D16-W16-L150-Z02 3008-M2.5X5
AEM90-AZ11-D17-C16-L150-Z02 3008-M2.5X5
AEM90-AZ11-D17-C16-L180-Z02 3008-M2.5X5
AEM90-AZ11-D17-W16-L100-Z02 3008-M2.5X5
AEM90-AZ11-D18-W16-L120-Z02 3008-M2.5X6
AEM90-AZ11-D20-C20-L200-Z03 3008-M2.5X6
AEM90-AZ11-D20-W19-L170-Z03 3008-M2.5X6
AEM90-AZ11-D20-W20-L110-Z02 3008-M2.5X6
AEM90-AZ11-D21-C20-L150-Z03 3008-M2.5X6
AEM90-AZ11-D21-C20-L180-Z03 3008-M2.5X6
AEM90-AZ11-D21-W20-L110-Z03 3008-M2.5X6
AEM90-AZ11-D22-C20-L150-Z02 3008-M2.5X6
AEM90-AZ11-D25-C24-L180-Z04 3008-M2.5X6
AEM90-AZ11-D25-W25-L110-Z04 3008-M2.5X6
AEM90-AZ11-D26-C25-L250-Z02 3008-M2.5X6
AEM90-AZ11-D26-W25-L120-Z03 3008-M2.5X6
AEM90-AZ11-D26-W25-L120-Z04 3008-M2.5X6
AEM90-AZ11-D28-C25-L180-Z03 3008-M2.5X6
AEM90-AZ11-D28-C25-L250-Z02 3008-M2.5X6
AEM90-AZ11-D33-W32-L130-Z04 3008-M2.5X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
