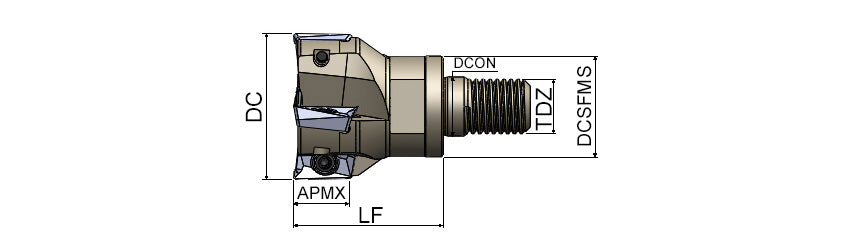

AKKO AEM90-AP S-System Modular End Mill - dimension drawing

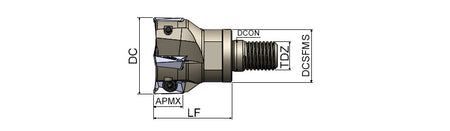

AKKO AEM90-AP S-System Modular End Mill - dimension drawing
AKKO

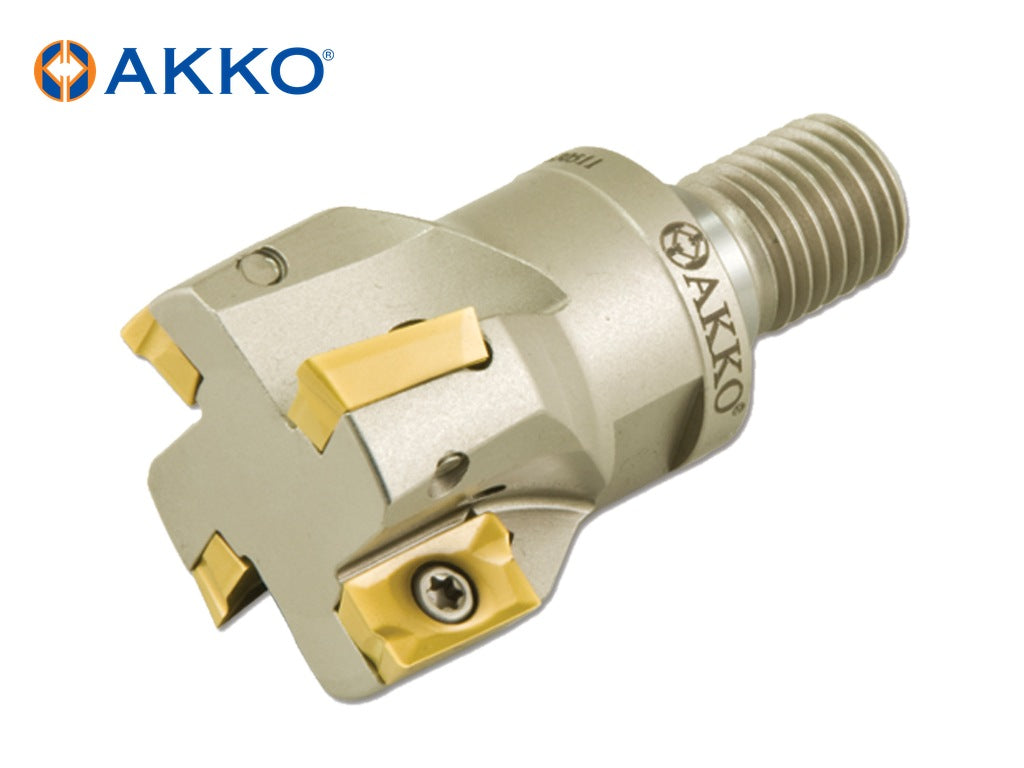

AKKO AEM90-AP S-System Modular End Mill

Out of stock
SKU: AEM90-AP0903-D20-M12-L35-Z03
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-AP0903-D20-M12-L35-Z03 SKUAEM90-AP0903-D20-M12-L35-Z03

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-AP – S-System Modular End Mill from the AKKO S-System Modular End Mills (Screw Type) range. For inserts: APKT 1003.., APKT 11T3.., APKT 1604.., APKT 1606.., APMT 0903.. 28 sizes listed below.

Specifications

  • Cutting Angle: 90°

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Insert Style Number of Flutes (ZEFP) Coolant Through Insert Size Thread Diameter Size (TDZ) Contact Surface Diameter Machine Side (DCSFMS, mm) Axial Depth of Cut (mm)
AEM90-AP0903-D20-M12-L35-Z03 20 12.5 35 APMT 3 No 0903.. M12 21 9
AEM90-AP0903-D25-M12-L35-Z03 25 12.5 35 APMT 3 No 0903.. M12 21 9
AEM90-AP10-D16-M08-L30-Z02-H 16 8.5 30 APKT 2 Yes 1003.. M08 14.75 10
AEM90-AP10-D20-M10-L30-Z03-H 20 10.5 30 APKT 3 Yes 1003.. M10 18 10
AEM90-AP10-D25-M12-L35-Z03-H 25 12.5 35 APKT 3 Yes 1003.. M12 21 10
AEM90-AP10-D32-M16-L35-Z04-H 32 17 35 APKT 4 Yes 1003.. M16 29 10
AEM90-AP10-D32-M16-L40-Z04-H 32 17 40 APKT 4 Yes 1003.. M16 29 10
AEM90-AP10-D40-M16-L43-Z05-H 40 17 43 APKT 5 Yes 1003.. M16 29 10
AEM90-AP10-D42-M16-L43-Z05-H 42 17 43 APKT 5 Yes 1003.. M16 29 10
AEM90-AP10D-D16-M08-L30-Z02-H 16 8.5 30 APKT 2 Yes 1003.. M08 14.75 10
AEM90-AP10D-D20-M10-L30-Z03-H 20 10.5 30 APKT 3 Yes 1003.. M10 18 10
AEM90-AP10D-D25-M12-L35-Z03-H 25 12.5 35 APKT 3 Yes 1003.. M12 21 10
AEM90-AP11-D16-M08-L30-Z02-H 16 8.5 30 APKT 2 Yes 11T3.. M08 14.75 11
AEM90-AP11-D20-M10-L30-Z03-H 20 10.5 30 APKT 3 Yes 11T3.. M10 18 11
AEM90-AP11-D25-M12-L35-Z03-H 25 12.5 35 APKT 3 Yes 11T3.. M12 21 11
AEM90-AP11-D32-M16-L35-Z04-H 32 17 35 APKT 4 Yes 11T3.. M16 29 11
AEM90-AP11-D40-M16-L43-Z05-H 40 17 43 APKT 5 Yes 11T3.. M16 29 11
AEM90-AP16-D25-M12-L43-Z02-H 25 12.5 43 APKT 2 Yes 1604.. M12 21 16
AEM90-AP16-D32-M16-L43-Z03-H 32 17 43 APKT 3 Yes 1604.. M16 29 11
AEM90-AP16-D40-M16-L43-Z04-H 40 17 43 APKT 4 Yes 1604.. M16 29 16
AEM90-AP16-D42-M16-L43-Z04 42 17 43 APKT 4 No 1604.. M16 29 16
AEM90-AP16-D42-M16-L43-Z04-H 42 17 43 APKT 4 Yes 1604.. M16 29 16
AEM90-AP16DJ-D25-M12-L43-Z02-H 25 12.5 43 APKT 2 Yes 1606.. M12 21 16
AEM90-AP16DJ-D32-M16-L43-Z03-H 32 17 43 APKT 3 Yes 1606.. M16 29 16
AEM90-AP16DJ-D40-M16-L43-Z04-H 40 17 43 APKT 4 Yes 1606.. M16 29 16
AEM90-AP16L-D25-M12-L43-Z02-H 25 12.5 43 APKT 2 Yes 1604.. M12 21 16
AEM90-AP16L-D32-M16-L43-Z03-H 32 17 43 APKT 3 Yes 1604.. M16 29 16
AEM90-AP16L-D40-M16-L43-Z04-H 40 17 43 APKT 4 Yes 1604.. M16 29 16

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-AP0903-D20-M12-L35-Z03 82-T08 3008-M2.5X6
AEM90-AP0903-D25-M12-L35-Z03 82-T08 3008-M2.5X6
AEM90-AP10-D16-M08-L30-Z02-H 82-T08 3008-M2.5X6
AEM90-AP10-D20-M10-L30-Z03-H 82-T08 3008-M2.5X6
AEM90-AP10-D25-M12-L35-Z03-H 82-T08 3008-M2.5X6
AEM90-AP10-D32-M16-L35-Z04-H 82-T08 3008-M2.5X6
AEM90-AP10-D32-M16-L40-Z04-H 82-T08 3008-M2.5X6
AEM90-AP10-D40-M16-L43-Z05-H 82-T08 3008-M2.5X6
AEM90-AP10-D42-M16-L43-Z05-H 82-T08 3008-M2.5X6
AEM90-AP10D-D16-M08-L30-Z02-H 82-T08 3008-M2.5X6
AEM90-AP10D-D20-M10-L30-Z03-H 82-T08 3008-M2.5X6
AEM90-AP10D-D25-M12-L35-Z03-H 82-T08 3008-M2.5X6
AEM90-AP11-D16-M08-L30-Z02-H 82-T08 3008-M2.5X6
AEM90-AP11-D20-M10-L30-Z03-H 82-T08 3008-M2.5X6
AEM90-AP11-D25-M12-L35-Z03-H 82-T08 3008-M2.5X6
AEM90-AP11-D32-M16-L35-Z04-H 82-T08 3008-M2.5X6
AEM90-AP11-D40-M16-L43-Z05-H 82-T08 3008-M2.5X6
AEM90-AP16-D25-M12-L43-Z02-H 82-T15 4015-M4X9
AEM90-AP16-D32-M16-L43-Z03-H 82-T15 4015-M4X9
AEM90-AP16-D40-M16-L43-Z04-H 82-T15 4015-M4X9
AEM90-AP16-D42-M16-L43-Z04 82-T15 4015-M4X9
AEM90-AP16-D42-M16-L43-Z04-H 82-T15 4015-M4X9
AEM90-AP16DJ-D25-M12-L43-Z02-H 82-T15 4015-M4X9
AEM90-AP16DJ-D32-M16-L43-Z03-H 82-T15 4015-M4X9
AEM90-AP16DJ-D40-M16-L43-Z04-H 82-T15 4015-M4X9
AEM90-AP16L-D25-M12-L43-Z02-H 82-T15 4015-M4X9
AEM90-AP16L-D32-M16-L43-Z03-H 82-T15 4015-M4X9
AEM90-AP16L-D40-M16-L43-Z04-H 82-T15 4015-M4X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
