This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

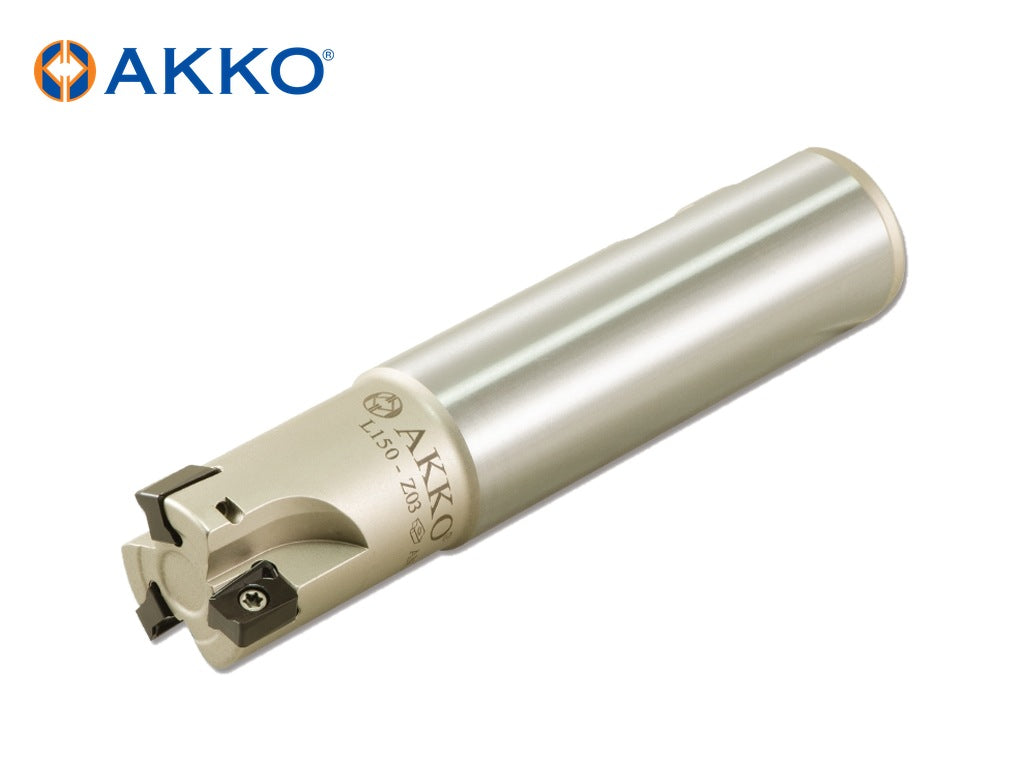

AKKO AEM90-AN – S-System End Mill from the AKKO S-System End Mills range. For inserts: ANGX 1105.. 8 sizes listed below.

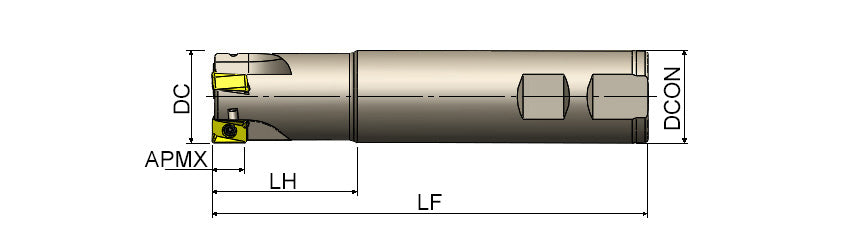

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Shank Type | Number of Flutes (ZEFP) | Head Length (LH, mm) |
|---|---|---|---|---|---|---|
| AEM90-AN11-D22-W20-L150-Z02 | 22 | 20 | 150 | Weldon | 2 | 30 |
| AEM90-AN11-D25-C25-L200-Z02 | 25 | 25 | 200 | Cylindrical | 2 | 40 |
| AEM90-AN11-D25-W25-L150-Z02 | 25 | 25 | 150 | Weldon | 2 | 40 |
| AEM90-AN11-D26-W25-L150-Z02 | 26 | 25 | 150 | Weldon | 2 | 40 |
| AEM90-AN11-D28-W25-L150-Z02 | 28 | 25 | 150 | Weldon | 2 | 25 |
| AEM90-AN11-D32-C32-L200-Z03 | 32 | 32 | 200 | Cylindrical | 3 | 50 |
| AEM90-AN11-D32-W32-L150-Z03 | 32 | 32 | 150 | Weldon | 3 | 50 |
| AEM90-AN11-D40-W32-L150-Z04 | 40 | 32 | 150 | Weldon | 4 | 40 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
