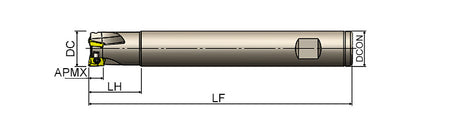

AKKO AEM90-AD-2 S-System End Mill - dimension drawing

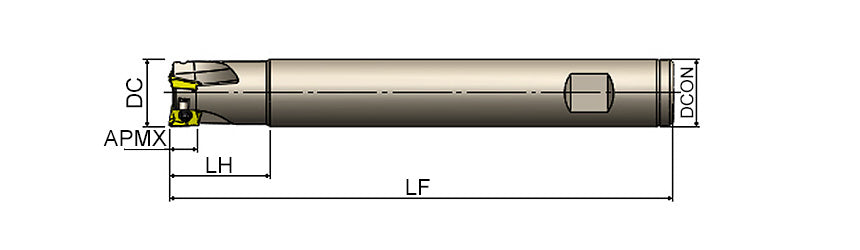

AKKO AEM90-AD-2 S-System End Mill - dimension drawing
AKKO

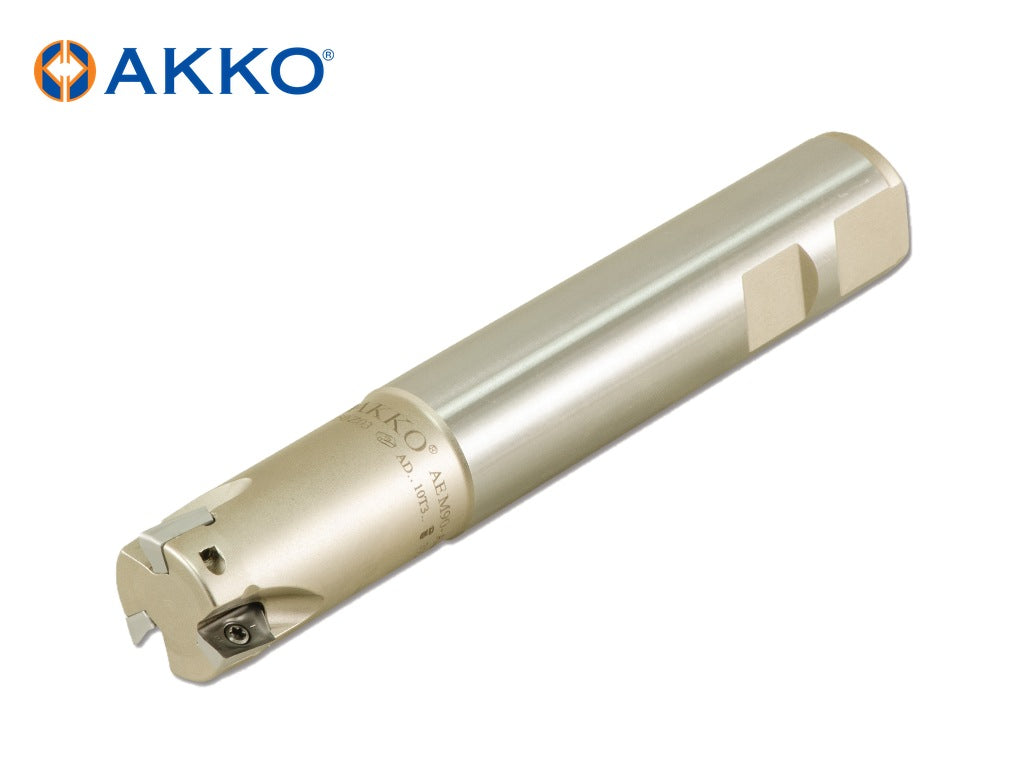

AKKO AEM90-AD-2 S-System End Mill

Out of stock
SKU: AEM90-AD0803-D16-W16-L150-Z02
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAEM90-AD0803-D16-W16-L150-Z02 SKUAEM90-AD0803-D16-W16-L150-Z02

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AEM90-AD-2 – S-System End Mill from the AKKO S-System End Mills range. For inserts: ADMT 0803.., ADMT 1003.., ADMT 10T3.., ADMT 1204.. 25 sizes listed below.

Specifications

  • Side Cutting Angle (KAPR): 90°
  • Insert Style: ADMT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Head Length (LH, mm) Insert Size
AEM90-AD0803-D16-W16-L150-Z02 16 16 150 Weldon 8 2 30 0803..
AEM90-AD0803-D17-W16-L150-Z02 17 16 150 Weldon 8 2 30 0803..
AEM90-AD0803-D17-W16-L200-Z02 17 16 200 Weldon 8 2 30 0803..
AEM90-AD0803-D20-W20-L150-Z03 20 20 150 Weldon 8 3 30 0803..
AEM90-AD0803-D21-W20-L200-Z03 21 20 200 Weldon 8 3 30 0803..
AEM90-AD1003-D16-C16-L150-Z02 16 16 150 Cylindrical 8 2 30 1003..
AEM90-AD10T3-D16-C16-L200-Z02 16 16 200 Cylindrical 10 2 50 10T3..
AEM90-AD10T3-D16-W16-L100-Z02-H 16 16 100 Weldon 10 2 30 10T3..
AEM90-AD10T3-D16-W16-L150-Z02 16 16 150 Weldon 10 2 40 10T3..
AEM90-AD10T3-D17-W16-L150-Z02 17 16 150 Weldon 10 2 30 10T3..
AEM90-AD10T3-D17-W16-L200-Z02 17 16 200 Weldon 10 2 30 10T3..
AEM90-AD10T3-D20-C20-L150-Z03 20 20 150 Cylindrical 10 3 40 10T3..
AEM90-AD10T3-D20-C20-L200-Z03 20 20 200 Cylindrical 10 3 50 10T3..
AEM90-AD10T3-D20-W20-L100-Z03-H 20 20 100 Weldon 10 3 30 10T3..
AEM90-AD10T3-D20-W20-L150-Z03 20 20 150 Weldon 10 3 40 10T3..
AEM90-AD10T3-D20-W20-L70-Z03 20 20 70 Weldon 10 3 30 10T3..
AEM90-AD10T3-D25-W25-L100-Z03-H 25 25 100 Weldon 10 3 30 10T3..
AEM90-AD10T3-D25-W25-L100-Z04-H 25 25 100 Weldon 10 4 30 10T3..
AEM90-AD10T3-D25-W25-L150-Z03 25 25 150 Weldon 10 3 50 10T3..
AEM90-AD1204-D20-W20-L150-Z02 20 20 150 Weldon 12 2 50 1204..
AEM90-AD1204-D21-C20-L150-Z02 21 20 150 Cylindrical 12 2 30 1204..
AEM90-AD1204-D22-C20-L150-Z02 22 20 150 Cylindrical 12 2 30 1204..
AEM90-AD1204-D25-W25-L150-Z03 25 25 150 Weldon 12 3 50 1204..
AEM90-AD1204-D26-W25-L180-Z03 26 25 180 Weldon 12 3 30 1204..
AEM90-AD1204-D32-W32-L150-Z04 32 32 150 Weldon 12 4 50 1204..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AEM90-AD0803-D16-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-AD0803-D17-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-AD0803-D17-W16-L200-Z02 82-T08 3008-M2.5X5
AEM90-AD0803-D20-W20-L150-Z03 82-T08 3008-M2.5X5
AEM90-AD0803-D21-W20-L200-Z03 82-T08 3008-M2.5X5
AEM90-AD1003-D16-C16-L150-Z02 82-T08 3008-M2.5X5
AEM90-AD10T3-D16-C16-L200-Z02 82-T08 3008-M2.5X5
AEM90-AD10T3-D16-W16-L100-Z02-H 82-T08 3008-M2.5X5
AEM90-AD10T3-D16-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-AD10T3-D17-W16-L150-Z02 82-T08 3008-M2.5X5
AEM90-AD10T3-D17-W16-L200-Z02 82-T08 3008-M2.5X5
AEM90-AD10T3-D20-C20-L150-Z03 82-T08 3008-M2.5X6
AEM90-AD10T3-D20-C20-L200-Z03 82-T08 3008-M2.5X6
AEM90-AD10T3-D20-W20-L100-Z03-H 82-T08 3008-M2.5X6
AEM90-AD10T3-D20-W20-L150-Z03 82-T08 3008-M2.5X6
AEM90-AD10T3-D20-W20-L70-Z03 82-T08 3008-M2.5X6
AEM90-AD10T3-D25-W25-L100-Z03-H 82-T08 3008-M2.5X6
AEM90-AD10T3-D25-W25-L100-Z04-H 82-T08 3008-M2.5X6
AEM90-AD10T3-D25-W25-L150-Z03 82-T08 3008-M2.5X6
AEM90-AD1204-D20-W20-L150-Z02 82-T10 4010-M3X6
AEM90-AD1204-D21-C20-L150-Z02 82-T10 4010-M3X6
AEM90-AD1204-D22-C20-L150-Z02 82-T10 4010-M3X6
AEM90-AD1204-D25-W25-L150-Z03 82-T10 4010-M3X6
AEM90-AD1204-D26-W25-L180-Z03 82-T10 4010-M3X6
AEM90-AD1204-D32-W32-L150-Z04 82-T10 4010-M3X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
