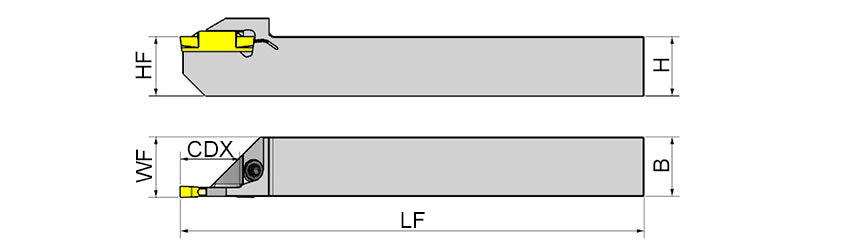

AKKO ADKT-TD-R/L-S External Grooving Toolholder - dimension drawing
AKKO ADKT-TD-R/L-S External Grooving Toolholder - dimension drawing
AKKO

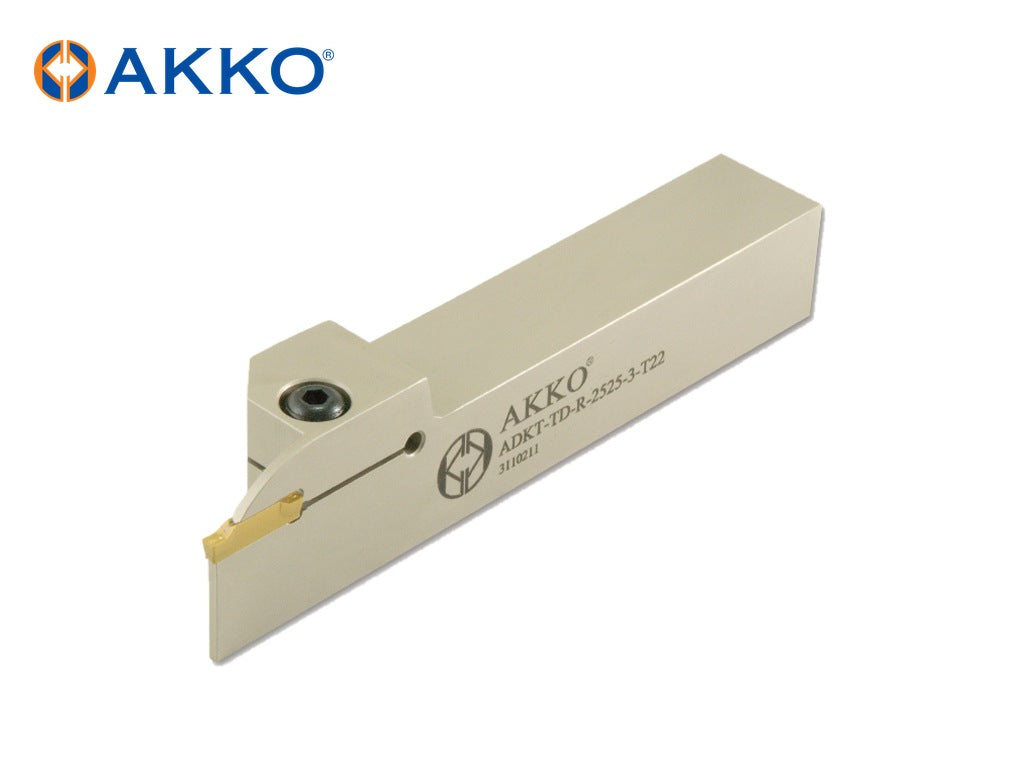

AKKO ADKT-TD-R/L External Grooving Toolholder for Swiss-Type Lathes

Out of stock
SKU: ADKT-TD-R-1212-3-T12-K-S
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedADKT-TD-R-1212-3-T12-K-S SKUADKT-TD-R-1212-3-T12-K-S

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ADKT-TD-R/L – External Grooving Toolholder for Swiss-Type Lathes from the AKKO External Grooving Toolholders for Swiss Type Lathes range. Right-hand version. For inserts: TD 3 mm. 1 size listed below.

Specifications

  • Shank Height (H): 12 mm
  • Functional Width (WF): 12.30 mm
  • Cutting Direction: Right Hand
  • Functional Length (LF): 125 mm
  • Coolant Through: No
  • Shank Width (B): 12 mm
  • Reinforced Type: Standard
  • Functional Height (HF): 12 mm
  • Insert Size: 3 mm
  • Insert Style: TD
  • Cutting Depth Maximum (CDX): 12 mm

Sizes and dimensions

AKKO code
ADKT-TD-R-1212-3-T12-K-S

Spare parts (AKKO codes)

  • Torx Key: 82-T15
  • Torx Screw: 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
