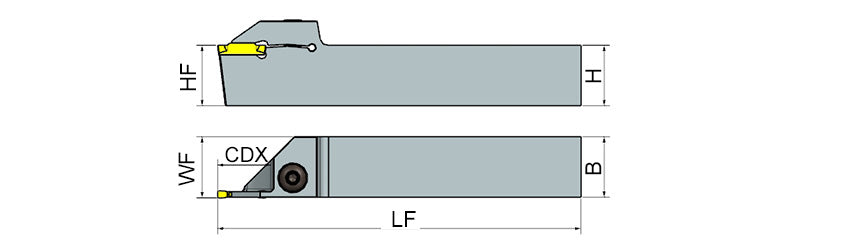

AKKO ADKT-KG-R/L External Grooving Toolholder - dimension drawing
AKKO ADKT-KG-R/L External Grooving Toolholder - dimension drawing
AKKO

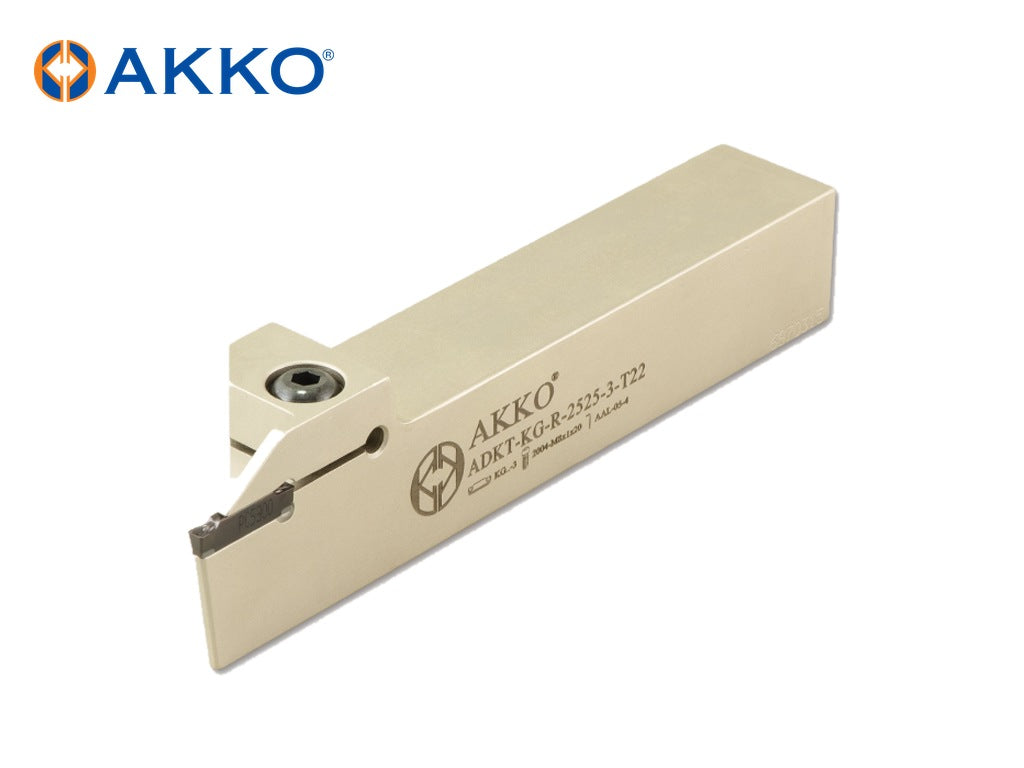

AKKO ADKT-KG-R/L External Grooving Toolholder

Out of stock
SKU: ADKT-KG-L-1616-3-T20
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedADKT-KG-L-1616-3-T20 SKUADKT-KG-L-1616-3-T20

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ADKT-KG-R/L – External Grooving Toolholder from the AKKO External Grooving Toolholders range. Available in right-hand and left-hand versions. For inserts: KG 2 mm, KG 3 mm, KG 4 mm, KG 5 mm, KG 6 mm. 34 sizes listed below.

Specifications

  • Shank Height (H): 32 mm
  • Functional Length (LF): 170 mm
  • Coolant Through: No
  • Shank Width (B): 32 mm
  • Reinforced Type: Standard
  • Insert Style: KG

Sizes and dimensions

AKKO code Hand (R/L) Functional Width (WF, mm) Functional Height (HF, mm) Insert Size (mm) Cutting Depth Maximum (CDX, mm)
ADKT-KG-L-1616-3-T20 L 16.30 16 3 20
ADKT-KG-L-2020-2-T15 L 20.20 20 2 15
ADKT-KG-L-2020-3-T20 L 20.3 20 3 20
ADKT-KG-L-2020-4-T20 L 20.40 20 4 20
ADKT-KG-L-2525-2-T15 L 25.20 25 2 15
ADKT-KG-L-2525-2-T17 L 25.20 25 2 17
ADKT-KG-L-2525-2-T8 L 25.20 25 2 8
ADKT-KG-L-2525-3-T10 L 25.30 25 3 10
ADKT-KG-L-2525-3-T13 L 25.30 25 3 13
ADKT-KG-L-2525-3-T22 L 25.30 25 3 22
ADKT-KG-L-2525-4-T10 L 25.40 25 4 10
ADKT-KG-L-2525-4-T16 L 25.40 25 4 16
ADKT-KG-L-2525-4-T22 L 25.40 25 4 22
ADKT-KG-L-2525-5-T12 L 25.50 25 5 12
ADKT-KG-L-2525-5-T15 L 25.50 25 5 15
ADKT-KG-L-2525-5-T25 L 25.50 25 5 25
ADKT-KG-L-2525-6-T25 L 25.60 25 6 25
ADKT-KG-R-1616-3-T20 R 16.30 16 3 20
ADKT-KG-R-2020-2-T15 R 20.20 20 2 15
ADKT-KG-R-2020-3-T20 R 20.3 20 3 20
ADKT-KG-R-2020-4-T20 R 20.40 20 4 20
ADKT-KG-R-2525-2-T15 R 25.20 25 2 15
ADKT-KG-R-2525-2-T17 R 25.20 25 2 17
ADKT-KG-R-2525-2-T8 R 25.20 25 2 8
ADKT-KG-R-2525-3-T10 R 25.30 25 3 10
ADKT-KG-R-2525-3-T13 R 25.30 25 3 13
ADKT-KG-R-2525-3-T22 R 25.30 25 3 22
ADKT-KG-R-2525-4-T10 R 25.40 25 4 10
ADKT-KG-R-2525-4-T16 R 25.40 25 4 16
ADKT-KG-R-2525-4-T22 R 25.40 25 4 22
ADKT-KG-R-2525-5-T12 R 25.50 25 5 12
ADKT-KG-R-2525-5-T15 R 25.50 25 5 15
ADKT-KG-R-2525-5-T25 R 25.50 25 5 25
ADKT-KG-R-2525-6-T25 R 25.60 25 6 25

Spare parts (AKKO codes)

AKKO code Allen Key Hexagon Screw Clamp Screw Stamp
ADKT-KG-L-1616-3-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2020-2-T15 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-L-2020-3-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2020-4-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-2-T15 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-L-2525-2-T17 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-L-2525-2-T8 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-L-2525-3-T10 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-3-T13 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-3-T22 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-4-T10 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-4-T16 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-4-T22 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-5-T12 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-5-T15 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-5-T25 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-L-2525-6-T25 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-1616-3-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2020-2-T15 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-R-2020-3-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2020-4-T20 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-2-T15 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-R-2525-2-T17 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-R-2525-2-T8 AAL-03-3 – AKV-02-M6X22 ABPL-01
ADKT-KG-R-2525-3-T10 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-3-T13 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-3-T22 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-4-T10 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-4-T16 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-4-T22 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-5-T12 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-5-T15 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-5-T25 AAL-05-4 2004-M8X1X20 – –
ADKT-KG-R-2525-6-T25 AAL-05-4 2004-M8X1X20 – –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
