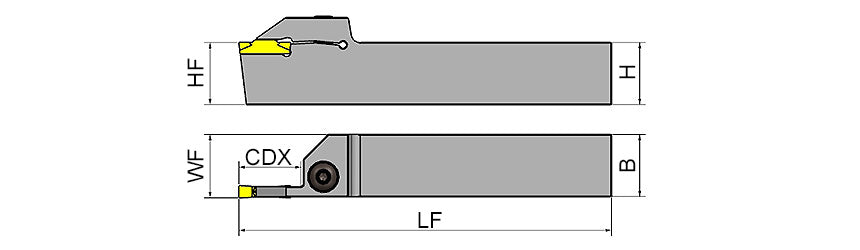

AKKO ADKT-GP-R/L External Grooving Toolholder - dimension drawing
AKKO ADKT-GP-R/L External Grooving Toolholder - dimension drawing
AKKO

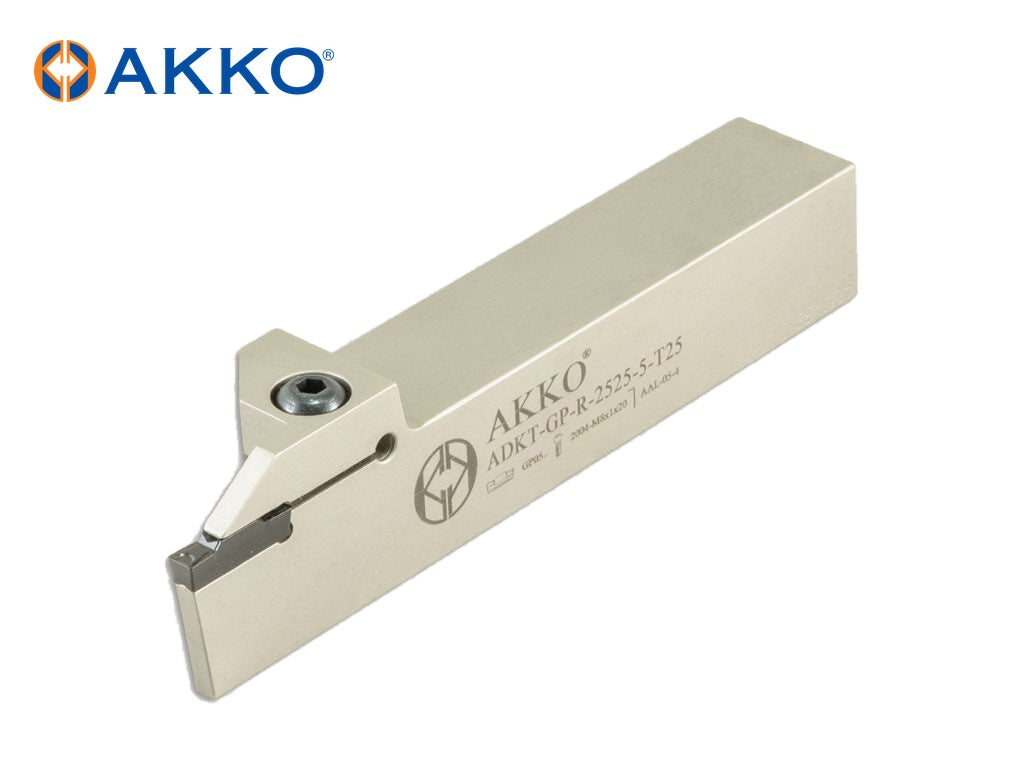

AKKO ADKT-GP-R/L External Grooving Toolholder

Out of stock
SKU: ADKT-GP-L-2020-2-T15
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedADKT-GP-L-2020-2-T15 SKUADKT-GP-L-2020-2-T15

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ADKT-GP-R/L – External Grooving Toolholder from the AKKO External Grooving Toolholders range. Available in right-hand and left-hand versions. For inserts: GP 2 mm, GP 3 mm, GP 4 mm, GP 5 mm. 12 sizes listed below.

Specifications

  • Coolant Through: No
  • Reinforced Type: Standard
  • Insert Style: GP

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Functional Height (HF, mm) Insert Size (mm) Cutting Depth Maximum (CDX, mm)
ADKT-GP-L-2020-2-T15 L 20 20 125 20.20 20 2 15
ADKT-GP-L-2020-3-T20 L 20 20 125 20.3 20 3 20
ADKT-GP-L-2525-2-T15 L 25 25 150 25.20 25 2 15
ADKT-GP-L-2525-3-T22 L 25 25 150 25.30 25 3 22
ADKT-GP-L-2525-4-T22 L 25 25 150 25.40 25 4 22
ADKT-GP-L-2525-5-T25 L 25 25 150 25.50 25 5 25
ADKT-GP-R-2020-2-T15 R 20 20 125 20.20 20 2 15
ADKT-GP-R-2020-3-T20 R 20 20 125 20.3 20 3 20
ADKT-GP-R-2525-2-T15 R 25 25 150 25.20 25 2 15
ADKT-GP-R-2525-3-T22 R 25 25 150 25.30 25 3 22
ADKT-GP-R-2525-4-T22 R 25 25 150 25.40 25 4 22
ADKT-GP-R-2525-5-T25 R 25 25 150 25.50 25 5 25

Spare parts (AKKO codes)

AKKO code Allen Key Clamp Screw Stamp Hexagon Screw
ADKT-GP-L-2020-2-T15 AAL-03-3 AKV-02-M6X22 ABPL-01 –
ADKT-GP-L-2020-3-T20 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-L-2525-2-T15 AAL-03-3 AKV-02-M6X22 ABPL-01 –
ADKT-GP-L-2525-3-T22 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-L-2525-4-T22 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-L-2525-5-T25 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-R-2020-2-T15 AAL-03-3 AKV-02-M6X22 ABPL-01 –
ADKT-GP-R-2020-3-T20 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-R-2525-2-T15 AAL-03-3 AKV-02-M6X22 ABPL-01 –
ADKT-GP-R-2525-3-T22 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-R-2525-4-T22 AAL-05-4 – – 2004-M8X1X20
ADKT-GP-R-2525-5-T25 AAL-05-4 – – 2004-M8X1X20

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
