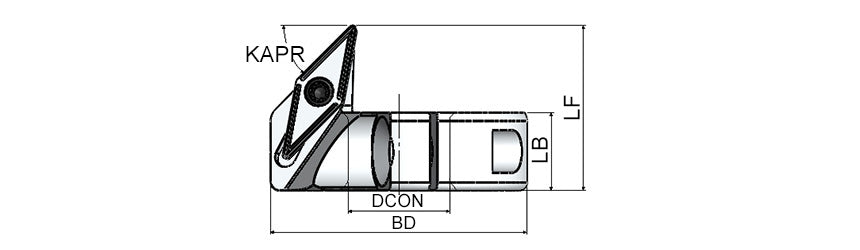

AKKO ADCR Drill Chamfering Ring - dimension drawing
AKKO ADCR Drill Chamfering Ring - dimension drawing
AKKO

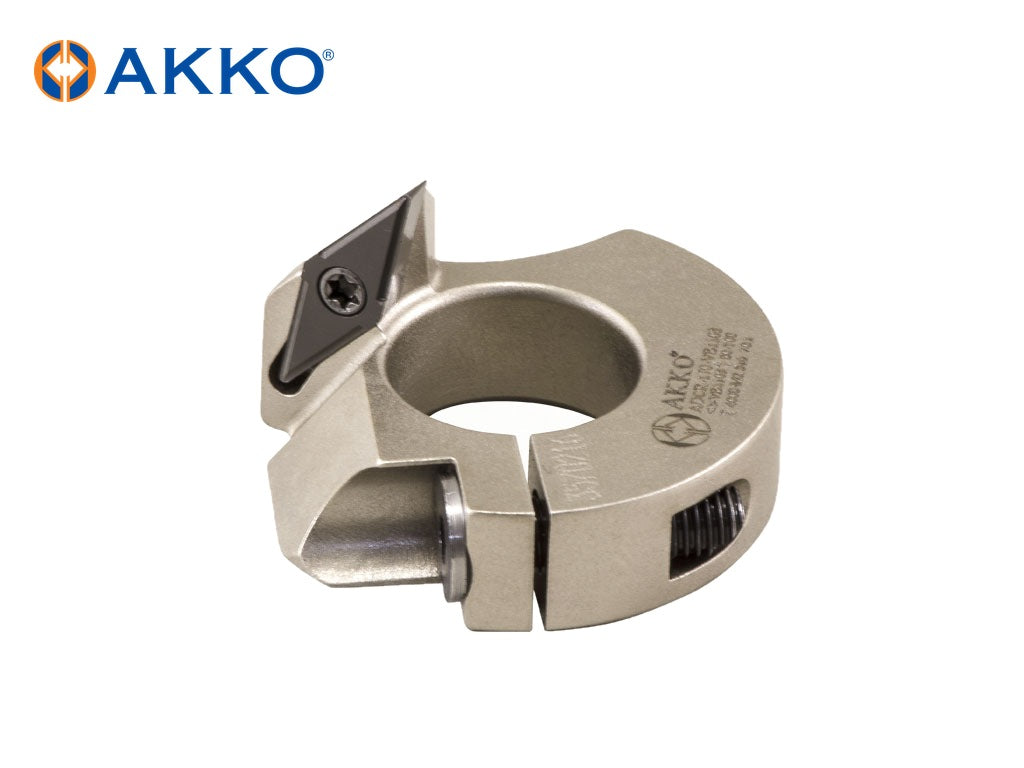

AKKO ADCR Drill Chamfering Ring

Out of stock
SKU: ADCR-120-VB1103
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedADCR-120-VB1103 SKUADCR-120-VB1103

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ADCR – Drill Chamfering Ring from the AKKO Drill Chamfering Ring Tools range. For inserts: VB.T 1103.. 37 sizes listed below.

Specifications

  • Insert Style: VB.T
  • Insert Size: 1103..

Sizes and dimensions

AKKO code Compatible Drill Diameter Shank Size (mm) Shank Size (DCON, mm)
ADCR-120-VB1103 12.5 mm 32 12
ADCR-125-VB1103 13 mm 32.5 12.5
ADCR-130-VB1103 13.5 mm 33 13
ADCR-135-VB1103 14 mm 33.5 13.5
ADCR-140-VB1103 14.5 mm 34 14
ADCR-145-VB1103 15 mm 34.5 14.5
ADCR-150-VB1103 15.5 -16 mm 35 15
ADCR-155-VB1103 16.5 mm 35.5 15.5
ADCR-160-VB1103 17 mm 36 16
ADCR-165-VB1103 17.5 mm 36.5 16.5
ADCR-170-VB1103 18 mm 37 17
ADCR-175-VB1103 18.5 mm 37.5 17.5
ADCR-180-VB1103 19 mm 38 18
ADCR-185-VB1103 19.5 mm 38.5 18.5
ADCR-190-VB1103 20 mm 39 19
ADCR-195-VB1103 20.5 mm 39.5 19.5
ADCR-200-VB1103 21 mm 40 20
ADCR-205-VB1103 21.5 mm 40.5 20.5
ADCR-210-VB1103 22 mm 41 21
ADCR-215-VB1103 22.5 mm 41.5 21.5
ADCR-220-VB1103 23 mm 42 22
ADCR-225-VB1103 23.5 mm 42.5 22.5
ADCR-230-VB1103 24 mm 43 23
ADCR-235-VB1103 24.5 mm 43.5 23.5
ADCR-240-VB1103 25 mm 44 24
ADCR-245-VB1103 25.5 mm 44.5 24.5
ADCR-250-VB1103 26 mm 45 25
ADCR-255-VB1103 26.5 mm 45.5 25.5
ADCR-260-VB1103 27 mm 46 26
ADCR-265-VB1103 27.5 mm 46.5 26.5
ADCR-270-VB1103 28 mm 47 27
ADCR-275-VB1103 28.5 mm 47.5 27.5
ADCR-280-VB1103 29 mm 48 28
ADCR-285-VB1103 29.5 mm 48.5 28.5
ADCR-290-VB1103 30 mm 49 29
ADCR-295-VB1103 30.5 mm 49.5 29.5
ADCR-300-VB1103 31 mm 50 30

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
  • Torx Key: 82-T08
  • Torx Screw: 4008-M2.5X6
  • Hexagon Screw: AAV-14-M5X14

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
