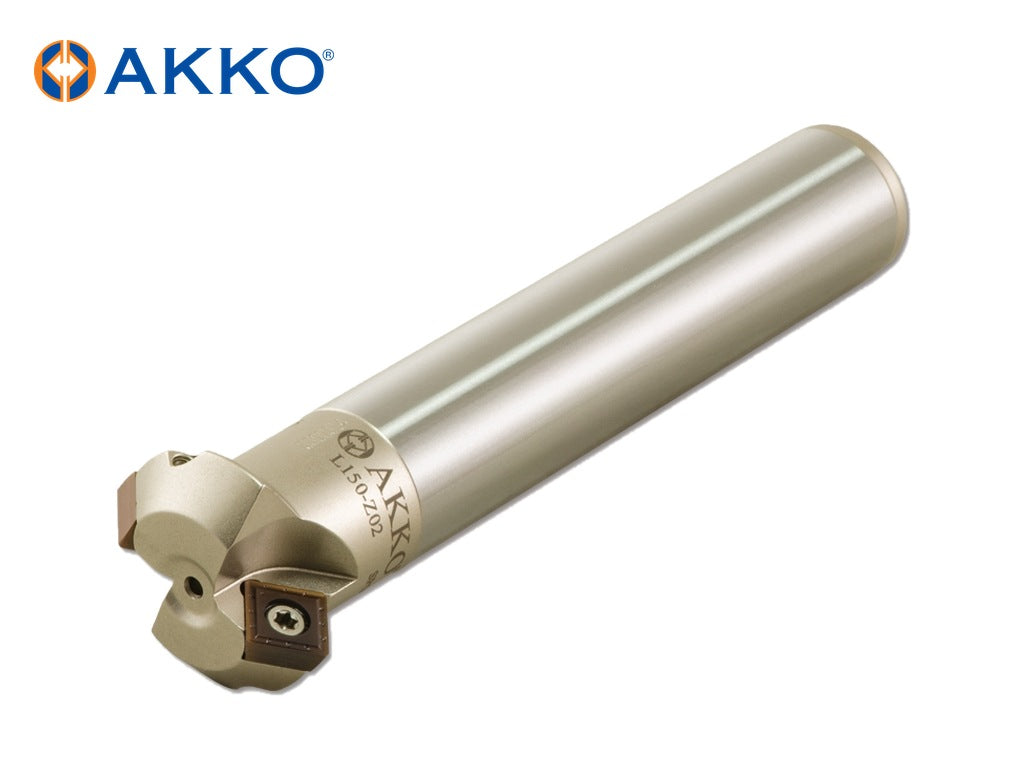

AKKO ACM45-SP – S-System Chamfering End Mill from the AKKO S-System Chamfering End Mills range. For inserts: SPGT 110408. 3 sizes listed below.
Specifications
-
Functional Length (LF): 150 mm
-
Insert Size: 110408
-
Insert Type: SPGT
-
Side Cutting Angle (KAPR): 45°

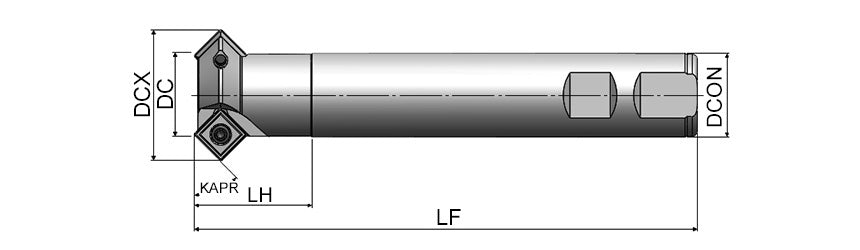

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Connection Diameter (DCON, mm) |
Maximum Cutting Diameter (DCX, mm) |
Number of Cutting Edges (ZEFP) |
Neck Length (LH, mm) |
| ACM45-SP1104-D12x26-W20-L150-Z01 |
12 |
20 |
26 |
1 |
30 |
| ACM45-SP1104-D25x39-W25-L150-Z02 |
25 |
25 |
39 |
2 |
35 |
| ACM45-SP1104-D32x46-W32-L150-Z03 |
32 |
32 |
46 |
3 |
40 |
Spare parts (AKKO codes)
-
Torx Key: 82-T15
-
Torx Screw: 4015-M4X9
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
