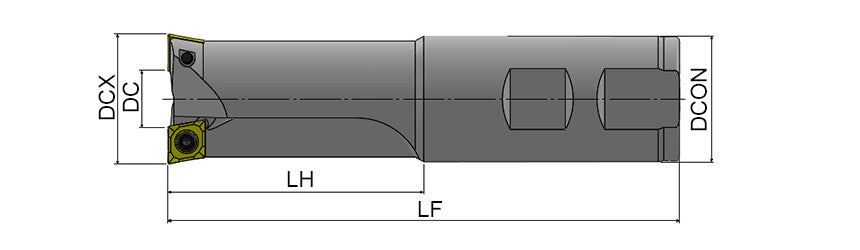

AKKO ACBM Countersink Milling Tool (DIN 974-1) - dimension drawing
AKKO ACBM Countersink Milling Tool (DIN 974-1) - dimension drawing
AKKO

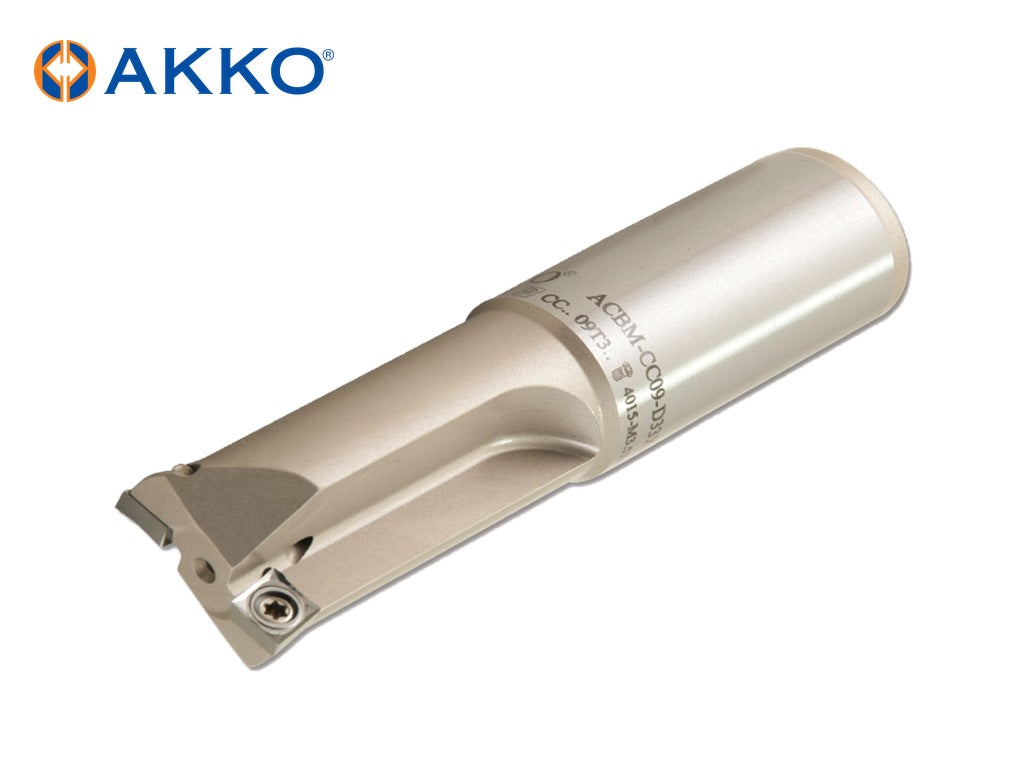

AKKO ACBM Countersink Milling Tool (DIN 974-1)

Out of stock
SKU: ACBM-CC06-D17X6-W16-L150-Z02
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedACBM-CC06-D17X6-W16-L150-Z02 SKUACBM-CC06-D17X6-W16-L150-Z02

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ACBM – Countersink Milling Tool (DIN 974-1) from the AKKO Countersink Milling Tools (DIN 974-1) range. For inserts: CC.. 060204, CC.. 09T304, SP.. 060204. 11 sizes listed below.

Specifications

  • Number of Cutting Edges (ZEFP): 2

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Maximum Cutting Diameter (DCX, mm) Neck Length (LH, mm) Coolant Through Insert Size Insert Type
ACBM-CC06-D17X6-W16-L150-Z02 6 16 150 17 30 No 060204 CC..
ACBM-CC06-D18X7-W16-L100-Z02-H 7 16 100 18 32 Yes 060204 CC..
ACBM-CC06-D18X7-W16-L160-Z02-H 7 16 160 18 32 Yes 060204 CC..
ACBM-CC06-D20X9-W20-L100-Z02-H 9 20 100 20 40 Yes 060204 CC..
ACBM-CC06-D20X9-W20-L160-Z02-H 9 20 160 20 38 Yes 060204 CC..
ACBM-CC09-D26X8.5-W25-L130-Z02-H 8.5 25 130 26 50 Yes 09T304 CC..
ACBM-CC09-D26X8.5-W25-L200-Z02-H 8.5 25 200 26 50 Yes 09T304 CC..
ACBM-CC09-D30X12.5-W32-L130-Z02-H 12.5 32 130 30 65 Yes 09T304 CC..
ACBM-CC09-D33X15.5-W32-L130-Z02-H 15.5 32 130 33 65 Yes 09T304 CC..
ACBM-CC09-D33X15.5-W32-L200-Z02-H 15.5 32 200 33 65 Yes 09T304 CC..
ACBM-SP06-D15X4-W16-L160-Z02-H 4 16 160 15 80 Yes 060204 SP..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
ACBM-CC06-D17X6-W16-L150-Z02 82-T08 3008-M2.5X6
ACBM-CC06-D18X7-W16-L100-Z02-H 82-T08 3008-M2.5X6
ACBM-CC06-D18X7-W16-L160-Z02-H 82-T08 3008-M2.5X6
ACBM-CC06-D20X9-W20-L100-Z02-H 82-T08 3008-M2.5X6
ACBM-CC06-D20X9-W20-L160-Z02-H 82-T08 3008-M2.5X6
ACBM-CC09-D26X8.5-W25-L130-Z02-H 82-T15 4015-M3.5X9
ACBM-CC09-D26X8.5-W25-L200-Z02-H 82-T15 4015-M3.5X9
ACBM-CC09-D30X12.5-W32-L130-Z02-H 82-T15 4015-M3.5X9
ACBM-CC09-D33X15.5-W32-L130-Z02-H 82-T15 4015-M3.5X9
ACBM-CC09-D33X15.5-W32-L200-Z02-H 82-T15 4015-M3.5X9
ACBM-SP06-D15X4-W16-L160-Z02-H 82-T07 3007-M2.2X4.6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
