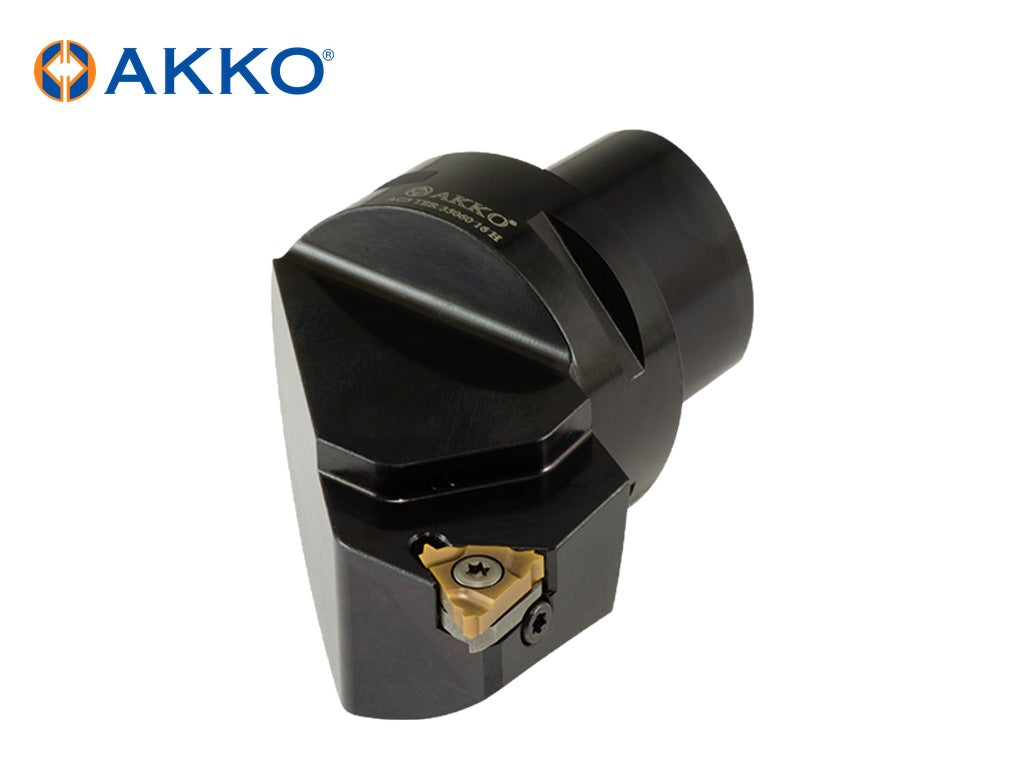

AKKO AC-TER/L Monoblock Threading Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC3 TEL 22040 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC3 TEL 22040 16 SKUAC3 TEL 22040 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-TER/L – Monoblock Threading Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock Threading Tools range. Available in right-hand and left-hand versions. For inserts: EL 16, EL 22, ER 16, ER 22. 18 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: Yes

Sizes and dimensions

AKKO code Hand (R/L) Functional Length (LF, mm) Functional Width (WF, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size Insert Style
AC3 TEL 22040 16 L 40 22 M12x1.5 32 16 EL
AC3 TEL 22040 22 L 40 22 M12x1.5 32 22 EL
AC3 TER 22040 16 R 40 22 M12x1.5 32 16 ER
AC3 TER 22040 22 R 40 22 M12x1.5 32 22 ER
AC4 TEL 27050 16 H L 50 27 M14x1.5 40 16 EL
AC4 TEL 27050 22 L 50 27 M14x1.5 40 22 EL
AC4 TER 27050 16 H R 50 27 M14x1.5 40 16 ER
AC4 TER 27050 22 R 50 27 M14x1.5 40 22 ER
AC5 TEL 35060 16 H L 60 35 M16xX1.5 50 16 EL
AC5 TEL 35060 22 L 60 35 M16xX1.5 50 22 EL
AC5 TER 35060 16 H R 60 35 M16xX1.5 50 16 ER
AC5 TER 35060 22 R 60 35 M16xX1.5 50 22 ER
AC6 TEL 45065 16 H L 65 45 M20x2 63 16 EL
AC6 TEL 45065 22 L 65 45 M20x2 63 22 EL
AC6 TER 45065 16 H R 65 45 M20x2 63 16 ER
AC6 TER 45065 22 R 65 45 M20x2 63 22 ER
AC8 TEL 55080 22 L 80 55 M20x2 80 22 EL
AC8 TER 55080 22 R 80 55 M20x2 80 22 ER

Spare parts (AKKO codes)

AKKO code Shim Shim Screw Stamp Nozzle Set Screw Torx Key Torx Screw
AC3 TEL 22040 16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 ACN-M8-8.5 2715-M3x4 82-T10 1710-U5-40X12.2
AC3 TEL 22040 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M8-8.5 2715-M3x4 80-T20 1720-U8-32x15
AC3 TER 22040 16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 ACN-M8-8.5 2715-M3x4 82-T10 1710-U5-40X12.2
AC3 TER 22040 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M8-8.5 2715-M3x4 80-T20 1720-U8-32x15
AC4 TEL 27050 16 H ATS-16I AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 82-T10 1710-U5-40X12.2
AC4 TEL 27050 22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 ACN-M8-8.5 2715-M3x4 80-T20 1720-U8-32x15
AC4 TER 27050 16 H ATS-16E AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 82-T10 1710-U5-40X12.2
AC4 TER 27050 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M8-8.5 2715-M3x4 80-T20 1720-U8-32x15
AC5 TEL 35060 16 H ATS-16I AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 82-T10 1710-U5-40X12.2
AC5 TEL 35060 22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 ACN-M10-10.5 2725-M5X5 80-T20 1720-U8-32x15
AC5 TER 35060 16 H ATS-16E AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 82-T10 1710-U5-40X12.2
AC5 TER 35060 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M10-10.5 2725-M5X5 80-T20 1720-U8-32x15
AC6 TEL 45065 16 H ATS-16I AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 , 2702-M4X4 82-T10 1710-U5-40X12.2
AC6 TEL 45065 22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 ACN-M12-12.5 2725-M5X5 80-T20 1720-U8-32x15
AC6 TER 45065 16 H ATS-16E AAV-11-U5-40X4.5 ABPL-03 – 2725-M5X8 , 2702-M4X4 82-T10 1710-U5-40X12.2
AC6 TER 45065 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M12-12.5 2725-M5X5 80-T20 1720-U8-32x15
AC8 TEL 55080 22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 ACN-M12-12.5 2725-M5X5 80-T20 1720-U8-32x15
AC8 TER 55080 22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 ACN-M12-12.5 2725-M5X5 80-T20 1720-U8-32x15

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
