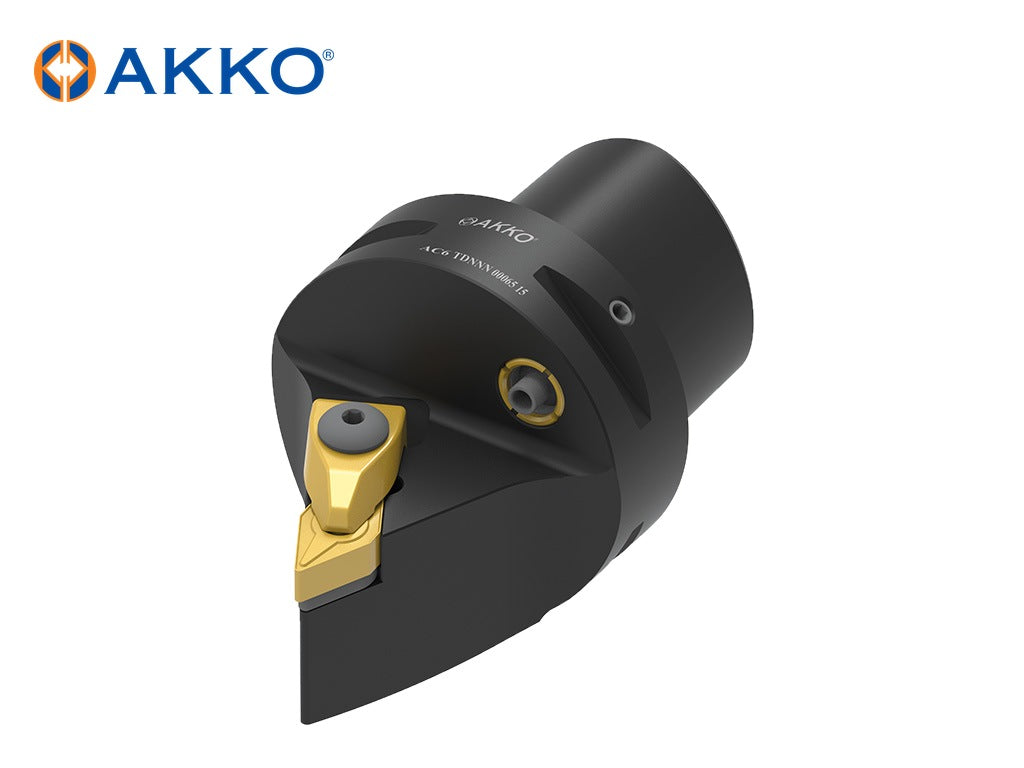

AKKO AC-TDNNN Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC4 TDNNN 00050 11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC4 TDNNN 00050 11 SKUAC4 TDNNN 00050 11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-TDNNN – Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock External Turning Tools range. For inserts: DN.. 1104.., DN.. 1506.. 5 sizes listed below.

Specifications

  • Functional Width (WF): 0 mm
  • Cutting Direction: Neutral
  • Clamping Type: D-System
  • Coolant Through: Yes
  • Insert Style: DN..
  • Side Cutting Angle (KAPR): 62.5°

Sizes and dimensions

AKKO code Functional Length (LF, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size
AC4 TDNNN 00050 11 50 M14x1.5 40 1104..
AC4 TDNNN 00055 15 55 M14x1.5 40 1506..
AC5 TDNNN 00060 15 60 M16xX1.5 50 1506..
AC6 TDNNN 00065 15 65 M20x2 63 1506..
AC8 TDNNN 00080 15 80 M20x2 80 1506..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
AKKO code Shim Shim Screw Clamp Clamp Screw Stamp Nozzle Ring Set Screw
AC4 TDNNN 00050 11 AADN-2-0001 AAV-04-M5x12 ATK-01 AKV-01-M5X22 ABPL-01 – – –
AC4 TDNNN 00055 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 – ACN-M8-8.5 AS-01 2715-M3x4
AC5 TDNNN 00060 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 – ACN-M10-10.5 AS-01 2725-M5X5
AC6 TDNNN 00065 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 – ACN-M12-12.5 AS-01 2725-M5X5
AC8 TDNNN 00080 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 – ACN-M12-12.5 AS-01 2725-M5X5

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
