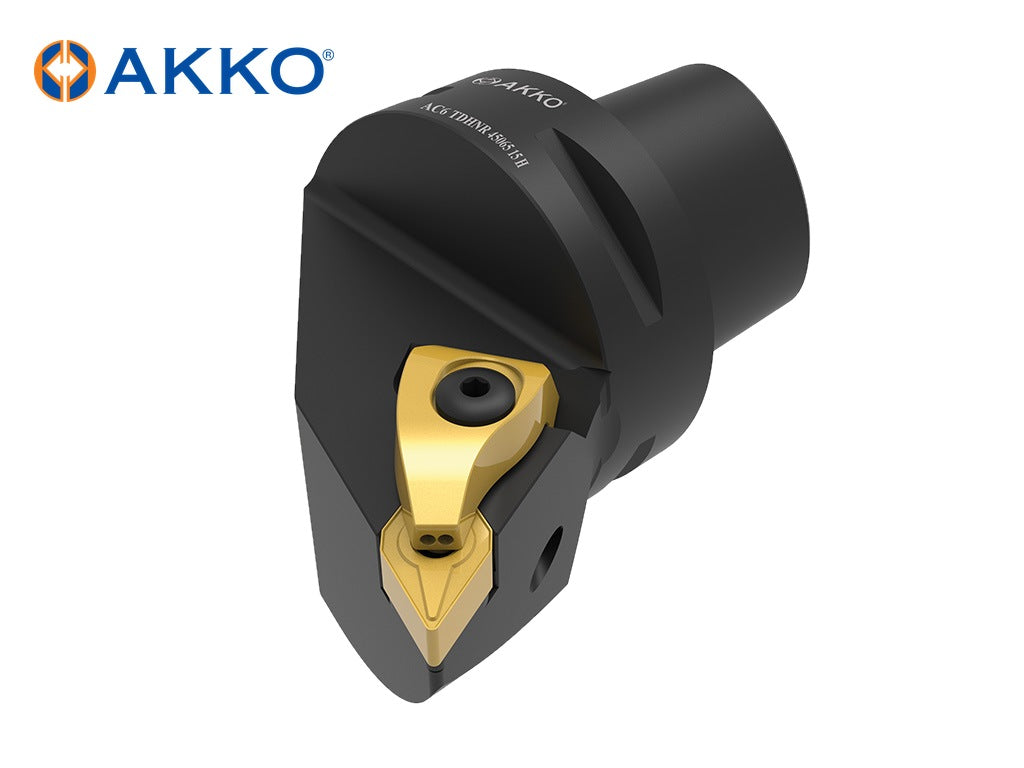

AKKO AC-TDHNR/L Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC4 TDHNL 27055 15 H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC4 TDHNL 27055 15 H SKUAC4 TDHNL 27055 15 H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-TDHNR/L – Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock External Turning Tools range. Available in right-hand and left-hand versions. For inserts: DN.. 1504.., DN.. 1506.. 9 sizes listed below.

Specifications

  • Clamping Type: D-System
  • Coolant Through: Yes
  • Insert Style: DN..
  • Side Cutting Angle (KAPR): 107.5°

Sizes and dimensions

AKKO code Hand (R/L) Functional Length (LF, mm) Functional Width (WF, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size
AC4 TDHNL 27055 15 H L 55 27 M14x1.5 40 1506..
AC4 TDHNR 27055 15 H R 55 27 M14x1.5 40 1506..
AC5 TDHNL 35060 15 H L 60 35 M16xX1.5 50 1506..
AC5 TDHNR 35060 15 H R 60 35 M16xX1.5 50 1506..
AC6 TDHNL 45065 15 H L 65 45 M20x2 63 1506..
AC6 TDHNL 45065 1504 H L 65 45 M20x2 63 1504..
AC6 TDHNR 45065 15 H R 65 45 M20x2 63 1506..
AC8 TDHNL 55080 15 H L 80 55 M20x2 80 1506..
AC8 TDHNR 55080 15 H R 80 55 M20x2 80 1506..

Spare parts (AKKO codes)

  • Shim Screw: AAV-02-M5X12
  • Allen Key: AAL-03-3
  • Clamp Screw: AKV-33-M6X22
  • Clamp Spring: AKY-01
  • O-Ring / X-Ring: AXR-01
AKKO code Shim Clamp Set Screw
AC4 TDHNL 27055 15 H AADN-3-0001 ATKH-02 –
AC4 TDHNR 27055 15 H AADN-3-0001 ATKH-01 –
AC5 TDHNL 35060 15 H AADN-3-0001 ATKH-02 2725-M5x6
AC5 TDHNR 35060 15 H AADN-3-0001 ATKH-01 2725-M5x6
AC6 TDHNL 45065 15 H AADN-3-0001 ATKH-02 2725-M5x6
AC6 TDHNL 45065 1504 H AADN-2-0003 ATKH-02 2725-M5x6
AC6 TDHNR 45065 15 H AADN-3-0001 ATKH-01 2725-M5x6
AC8 TDHNL 55080 15 H AADN-3-0001 ATKH-02 2725-M5x6
AC8 TDHNR 55080 15 H AADN-3-0001 ATKH-01 2725-M5x6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
