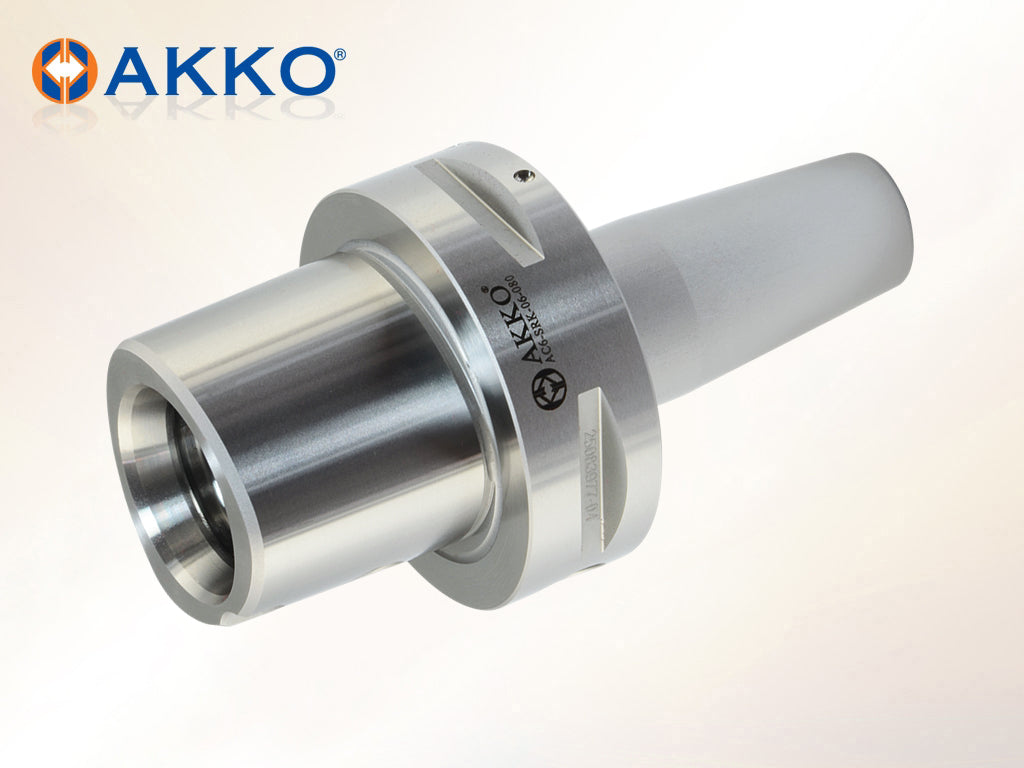

AKKO AC-SRK Polygonal Shank Shrink Fit Holder

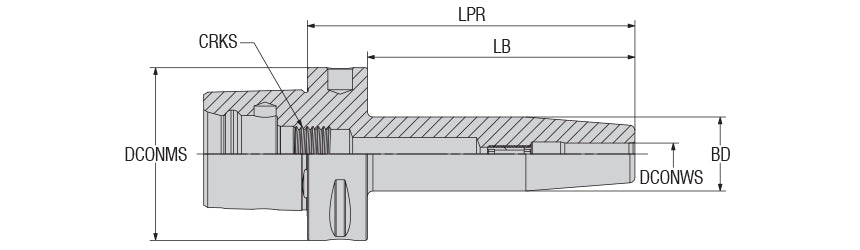

AKKO AC-SRK Polygonal Shank Shrink Fit Holder - dimension drawing
AKKO AC-SRK Polygonal Shank Shrink Fit Holder
AKKO AC-SRK Polygonal Shank Shrink Fit Holder - dimension drawing
AKKO

AKKO AC-SRK Polygonal Shank Shrink Fit Holder

Out of stock
SKU: AC6-SRK-06-080
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC6-SRK-06-080 SKUAC6-SRK-06-080

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-SRK Polygonal Shank Shrink Fit Holder from the AKKO Polygonal Shank Shrink Fit Holders range. 16 sizes listed below.

Sizes and dimensions (mm)

AKKO code CRKS LB OAL DCONMS DCONWS LPR
AC6-SRK-06-080 M20X2 38 120 63 6 80
AC6-SRK-06-120 M20X2 38 160 63 6 120
AC6-SRK-06-160 M20X2 38 120 63 6 160
AC6-SRK-08-080 M20X2 38 160 63 8 80
AC6-SRK-08-120 M20X2 38 120 63 8 120
AC6-SRK-08-160 M20X2 38 160 63 8 160
AC6-SRK-10-080 M20X2 38 120 63 10 80
AC6-SRK-10-120 M20X2 38 160 63 10 120
AC6-SRK-12-080 M20X2 38 120 63 12 80
AC6-SRK-12-120 M20X2 38 160 63 12 120
AC6-SRK-16-085 M20X2 38 125 63 16 85
AC6-SRK-16-120 M20X2 38 160 63 16 120
AC6-SRK-20-085 M20X2 38 125 63 20 85
AC6-SRK-20-120 M20X2 38 160 63 20 120
AC6-SRK-25-090 M20X2 38 130 63 25 90
AC6-SRK-32-095 M20X2 38 135 63 32 95

Dimension key (letters as on the drawing):

  • CRKS: Retention knob thread
  • LB: Body length
  • OAL: Overall length
  • DCONMS: Connection diameter, machine side
  • DCONWS: Connection diameter, workpiece side
  • LPR: Protruding length

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
