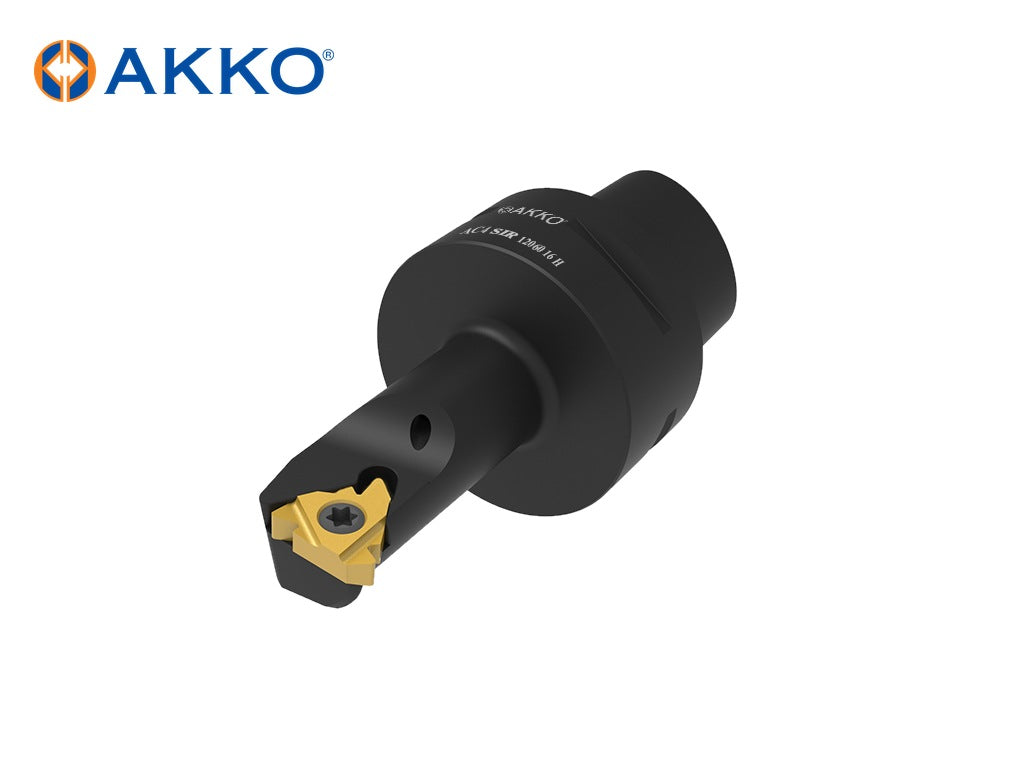

AKKO AC-SIR/L Monoblock Threading Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC3 SIL 12050 16 H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC3 SIL 12050 16 H SKUAC3 SIL 12050 16 H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-SIR/L – Monoblock Threading Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock Threading Tools range. Available in right-hand and left-hand versions. For inserts: IL 16, IL 22, IR 16, IR 22. 10 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: Yes

Sizes and dimensions

AKKO code Hand (R/L) Body Diameter (BD, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size Insert Style
AC3 SIL 12050 16 H L 16 50 12 20 M12x1.5 32 16 IL
AC3 SIR 12050 16 H R 16 50 12 20 M12x1.5 32 16 IR
AC4 SIL 12060 16 H L 16 60 12 20 M14x1.5 40 16 IL
AC4 SIL 15065 22 H L 20 65 15 25 M14x1.5 40 22 IL
AC4 SIR 12060 16 H R 16 60 12 20 M14x1.5 40 16 IR
AC4 SIR 15065 22 H R 20 65 15 25 M14x1.5 40 22 IR
AC5 SIL 12060 16 H L 16 60 12 20 M16xX1.5 50 16 IL
AC5 SIL 15065 22 H L 20 65 15 25 M16xX1.5 50 22 IL
AC5 SIR 12060 16 H R 16 60 12 20 M16xX1.5 50 16 IR
AC5 SIR 15065 22 H R 20 65 15 25 M16xX1.5 50 22 IR

Spare parts (AKKO codes)

AKKO code Set Screw Torx Key Torx Screw
AC3 SIL 12050 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC3 SIR 12050 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC4 SIL 12060 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC4 SIL 15065 22 H 2725-M5X5 80-T20 4020-M4.5X12
AC4 SIR 12060 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC4 SIR 15065 22 H 2725-M5X5 80-T20 4020-M4.5X12
AC5 SIL 12060 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC5 SIL 15065 22 H 2725-M5X5 80-T20 4020-M4.5X12
AC5 SIR 12060 16 H 2725-M5X4 82-T15 4015-M3.5X10
AC5 SIR 15065 22 H 2725-M5X5 80-T20 4020-M4.5X12

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
