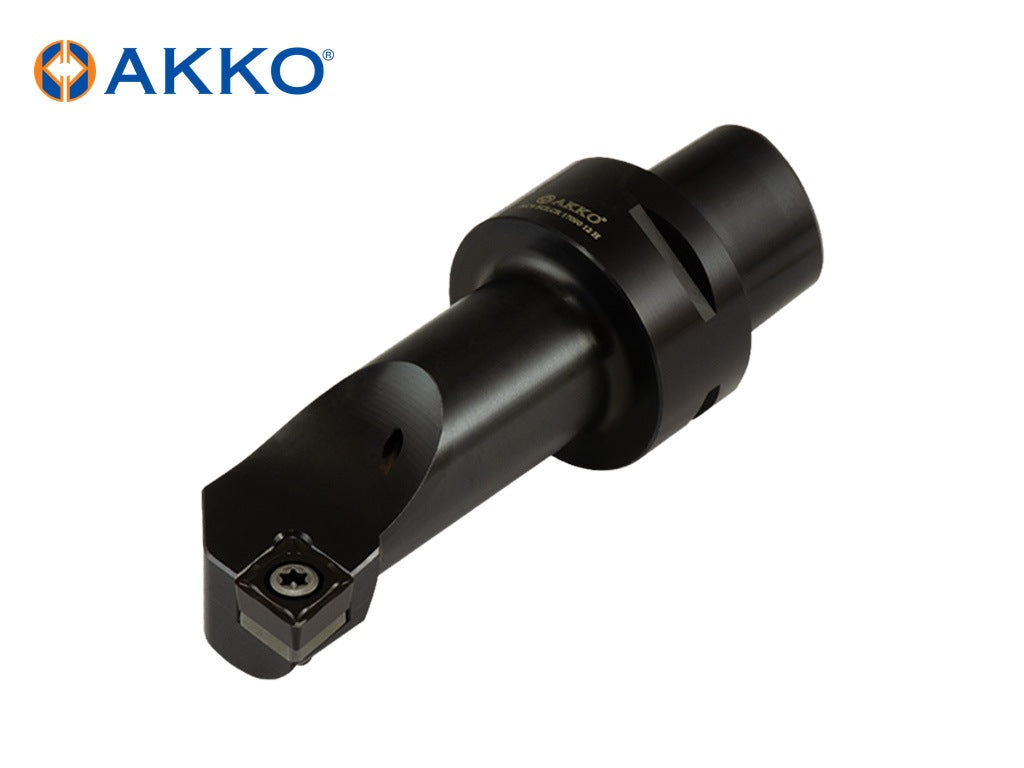

AKKO AC-SCLCR/L Monoblock Boring Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC3 SCLCL 11065 09 H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC3 SCLCL 11065 09 H SKUAC3 SCLCL 11065 09 H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-SCLCR/L – Monoblock Boring Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock Boring Tools range. Available in right-hand and left-hand versions. For inserts: CC.. 09T3.., CC.. 1204.. 42 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: Yes
  • Insert Style: CC..
  • Side Cutting Angle (KAPR): 95°

Sizes and dimensions

AKKO code Hand (R/L) Body Diameter (BD, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size
AC3 SCLCL 11065 09 H L 16 65 11 20 M12x1.5 32 09T3..
AC3 SCLCL 13075 09 H L 20 75 13 25 M12x1.5 32 09T3..
AC3 SCLCL 17090 09 H L 25 90 17 32 M12x1.5 32 09T3..
AC3 SCLCL 17090 12 H L 25 90 17 32 M12x1.5 32 1204..
AC3 SCLCL 22064 12 H L 32 64 22 40 M12x1.5 32 1204..
AC3 SCLCL 22096 12 H L 32 96 22 40 M12x1.5 32 1204..
AC3 SCLCR 11065 09 H R 16 65 11 20 M12x1.5 32 09T3..
AC3 SCLCR 13075 09 H R 20 75 13 25 M12x1.5 32 09T3..
AC3 SCLCR 17090 09 H R 25 90 17 32 M12x1.5 32 09T3..
AC3 SCLCR 17090 12 H R 25 90 17 32 M12x1.5 32 1204..
AC3 SCLCR 22064 12 H R 32 64 22 40 M12x1.5 32 1204..
AC3 SCLCR 22096 12 H R 32 96 22 40 M12x1.5 32 1204..
AC4 SCLCL 11070 09 H L 16 70 11 20 M14x1.5 40 09T3..
AC4 SCLCL 13080 09 H L 20 80 13 25 M14x1.5 40 09T3..
AC4 SCLCL 17090 09 H L 25 90 17 32 M14x1.5 40 09T3..
AC4 SCLCL 17090 12 H L 25 90 17 32 M14x1.5 40 1204..
AC4 SCLCL 22110 12 H L 32 110 22 40 M14x1.5 40 1204..
AC4 SCLCL 27080 09 H L 40 80 27 50 M14x1.5 40 09T3..
AC4 SCLCL 27080 12 H L 40 80 27 50 M14x1.5 40 1204..
AC4 SCLCR 11070 09 H R 16 70 11 20 M14x1.5 40 09T3..
AC4 SCLCR 13080 09 H R 20 80 13 25 M14x1.5 40 09T3..
AC4 SCLCR 17090 09 H R 25 90 17 32 M14x1.5 40 09T3..
AC4 SCLCR 17090 12 H R 25 90 17 32 M14x1.5 40 1204..
AC4 SCLCR 22110 12 H R 32 110 22 40 M14x1.5 40 1204..
AC4 SCLCR 27080 09 H R 40 80 27 50 M14x1.5 40 09T3..
AC4 SCLCR 27080 12 H R 40 80 27 50 M14x1.5 40 1204..
AC5 SCLCL 11070 09 H L 16 70 11 20 M16xX1.5 50 09T3..
AC5 SCLCL 13080 09 H L 20 80 13 25 M16xX1.5 50 09T3..
AC5 SCLCL 17090 09 H L 25 90 17 32 M16xX1.5 50 09T3..
AC5 SCLCL 17090 12 H L 25 90 17 32 M16xX1.5 50 1204..
AC5 SCLCL 22110 12 H L 32 110 22 40 M16xX1.5 50 1204..
AC5 SCLCL 27140 12 H L 40 140 27 50 M16xX1.5 50 1204..
AC5 SCLCL 35100 09 H L 50 100 35 63 M16xX1.5 50 09T3..
AC5 SCLCL 35100 12 H L 50 100 35 63 M16xX1.5 50 1204..
AC5 SCLCR 11070 09 H R 16 70 11 20 M16xX1.5 50 09T3..
AC5 SCLCR 13080 09 H R 20 80 13 25 M16xX1.5 50 09T3..
AC5 SCLCR 17090 09 H R 25 90 17 32 M16xX1.5 50 09T3..
AC5 SCLCR 17090 12 H R 25 90 17 32 M16xX1.5 50 1204..
AC5 SCLCR 22110 12 H R 32 110 22 40 M16xX1.5 50 1204..
AC5 SCLCR 27140 12 H R 40 140 27 50 M16xX1.5 50 1204..
AC5 SCLCR 35100 09 H R 50 100 35 63 M16xX1.5 50 09T3..
AC5 SCLCR 35100 12 H R 50 100 35 63 M16xX1.5 50 1204..

Spare parts (AKKO codes)

  • Set Screw: 2725-M5X5
AKKO code Torx Key Torx Screw Shim Shim Screw
AC3 SCLCL 11065 09 H 82-T15 4015-M3.5X9 – –
AC3 SCLCL 13075 09 H 82-T15 4015-M3.5X9 – –
AC3 SCLCL 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC3 SCLCL 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC3 SCLCL 22064 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC3 SCLCL 22096 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC3 SCLCR 11065 09 H 82-T15 4015-M3.5X9 – –
AC3 SCLCR 13075 09 H 82-T15 4015-M3.5X9 – –
AC3 SCLCR 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC3 SCLCR 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC3 SCLCR 22064 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC3 SCLCR 22096 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCL 11070 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCL 13080 09 H 82-T15 4015-M3.5X9 – –
AC4 SCLCL 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCL 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCL 22110 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCL 27080 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCL 27080 12 H 80-T20 1020-M4.5X16 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCR 11070 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCR 13080 09 H 82-T15 4015-M3.5X9 – –
AC4 SCLCR 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCR 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCR 22110 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC4 SCLCR 27080 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC4 SCLCR 27080 12 H 80-T20 1020-M4.5X16 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCL 11070 09 H 82-T15 4015-M3.5X9 – –
AC5 SCLCL 13080 09 H 82-T15 4015-M3.5X9 – –
AC5 SCLCL 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC5 SCLCL 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCL 22110 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCL 27140 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCL 35100 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC5 SCLCL 35100 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCR 11070 09 H 82-T15 4015-M3.5X9 – –
AC5 SCLCR 13080 09 H 82-T15 4015-M3.5X9 – –
AC5 SCLCR 17090 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC5 SCLCR 17090 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCR 22110 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCR 27140 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8
AC5 SCLCR 35100 09 H 82-T15 4015-M3.5X12 AACN-2-0001 AAV-08-M3.5X8
AC5 SCLCR 35100 12 H 80-T20 4020-M4.5X12 AACN-2-0003 AAV-10-M4.5X8

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
