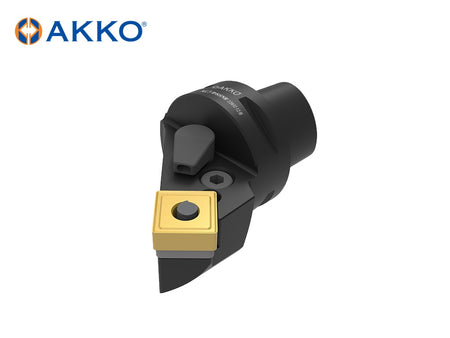

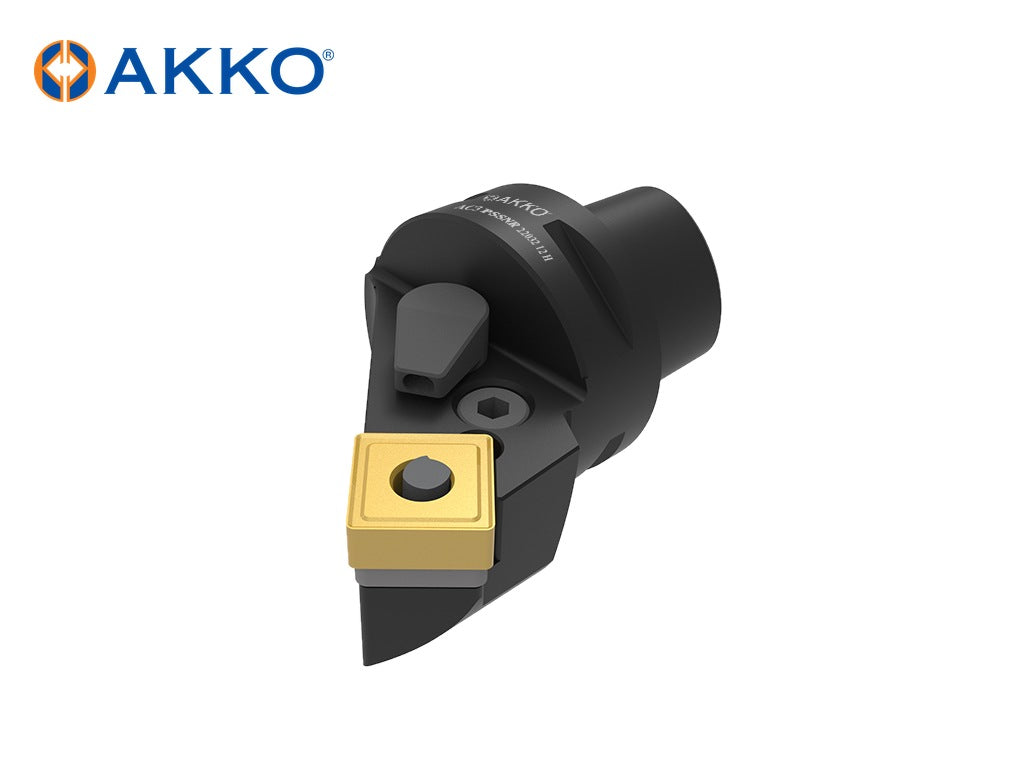

AKKO AC-PSSNR/L Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank)

Out of stock
SKU: AC3 PSSNL 22032 12 H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAC3 PSSNL 22032 12 H SKUAC3 PSSNL 22032 12 H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AC-PSSNR/L – Monoblock External Turning Tool (ISO 26623-1 Polygonal Shank) from the AKKO Monoblock External Turning Tools range. Available in right-hand and left-hand versions. For inserts: SN.. 1204.., SN.. 1506.., SN.. 1906.., SN.. 2509.. 14 sizes listed below.

Specifications

  • Clamping Type: P-System
  • Coolant Through: Yes
  • Insert Style: SN..
  • Side Cutting Angle (KAPR): 45°

Sizes and dimensions

AKKO code Hand (R/L) Functional Length (LF, mm) Functional Width (WF, mm) Connection Retention Knob Thread Size (CRKS) Connection Diameter Machine Side (DCONMS, mm) Insert Size
AC3 PSSNL 22032 12 H L 32 22 M12x1.5 32 1204..
AC3 PSSNR 22032 12 H R 32 22 M12x1.5 32 1204..
AC4 PSSNL 27042 12 H L 42 27 M14x1.5 40 1204..
AC4 PSSNR 27042 12 H R 42 27 M14x1.5 40 1204..
AC5 PSSNL 35052 12 H L 52 35 M16xX1.5 50 1204..
AC5 PSSNR 35052 12 H R 52 35 M16xX1.5 50 1204..
AC6 PSSNL 45052 19 H L 52 45 M20x2 63 1906..
AC6 PSSNL 45054 15 H L 54 45 M20x2 63 1506..
AC6 PSSNL 45056 12 H L 56 45 M20x2 63 1204..
AC6 PSSNR 45052 19 H R 52 45 M20x2 63 1906..
AC6 PSSNR 45054 15 H R 54 45 M20x2 63 1506..
AC6 PSSNR 45056 12 H R 56 45 M20x2 63 1204..
AC8 PSSNL 55070 25C L 70 55 M20x2 80 2509..
AC8 PSSNR 55070 25C R 70 55 M20x2 80 2509..

Spare parts (AKKO codes)

AKKO code Shim Shim Spring Allen Key Lever Lever Screw Nozzle O-Ring / X-Ring Set Screw Clamp Clamp Screw
AC3 PSSNL 22032 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2715-M3X5 – –
AC3 PSSNR 22032 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3X5, 2715-M3x4 – –
AC4 PSSNL 27042 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X4 – –
AC4 PSSNR 27042 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X4 – –
AC5 PSSNL 35052 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X5 – –
AC5 PSSNR 35052 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X5 – –
AC6 PSSNL 45052 19 H AASN-3-0005 AAY-04 AAL-05-4 APL-05 ALV-05-M10X27 AN-01 AOR-01 2715-M3X5, 2725-M5X5 – –
AC6 PSSNL 45054 15 H AASN-3-0023 AAY-03 AAL-03-3 APL-04 ALV-04-M8X22 AN-01 AOR-01 2715-M3X5, 2725-M5X5 – –
AC6 PSSNL 45056 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X5 – –
AC6 PSSNR 45052 19 H AASN-3-0005 AAY-04 AAL-05-4 APL-05 ALV-05-M10X27 AN-01 AOR-01 2715-M3X5, 2725-M5X5 – –
AC6 PSSNR 45054 15 H AASN-3-0023 AAY-03 AAL-03-3 APL-04 ALV-04-M8X22 AN-01 AOR-01 2715-M3X5, 2725-M5X5 – –
AC6 PSSNR 45056 12 H AASN-3-0004 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 AN-01 AOR-01 2715-M3x4, 2725-M5X5 – –
AC8 PSSNL 55070 25C AASN-3-0020 AAY-05 AAL-07-5 APL-06 ALV-06-M12X36 ACN-M12-12.5 – 2725-M5X5 ACK-04 AKV-16-M6X16
AC8 PSSNR 55070 25C AASN-3-0020 AAY-05 AAL-07-5 APL-06 ALV-06-M12X36 ACN-M12-12.5 – 2725-M5X5 ACK-04 AKV-16-M6X16

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
