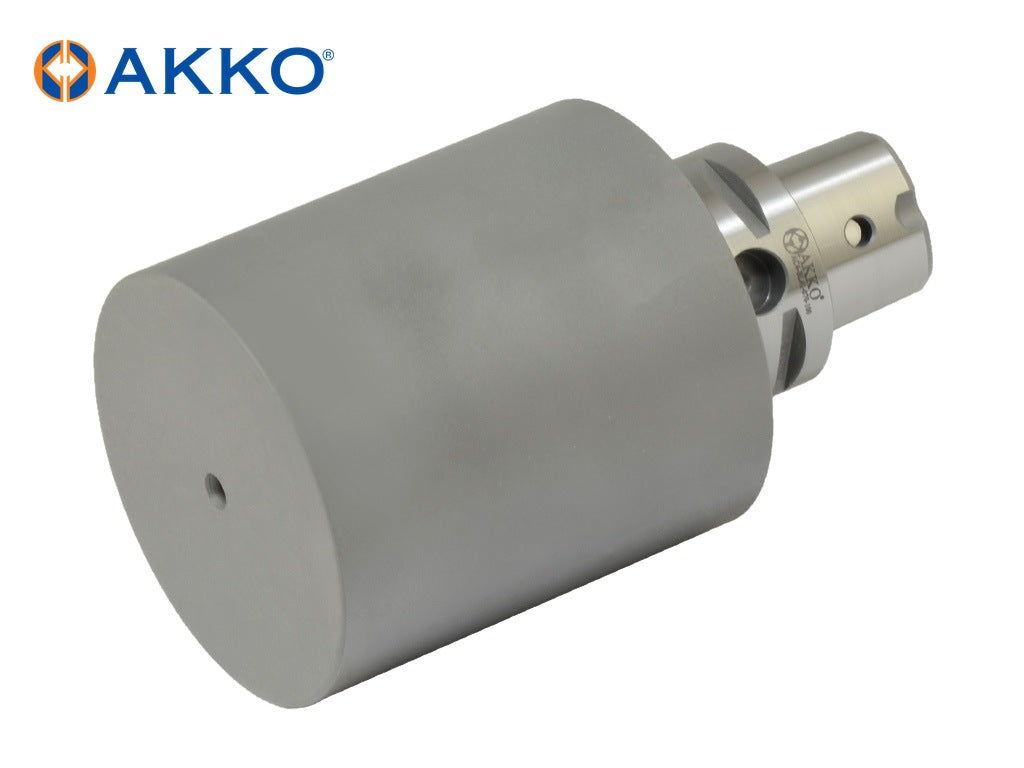

AKKO AC-BL – Polygonal Shank Blank Holder from the AKKO Polygonal Shank Blank Holders range. 16 sizes listed below.

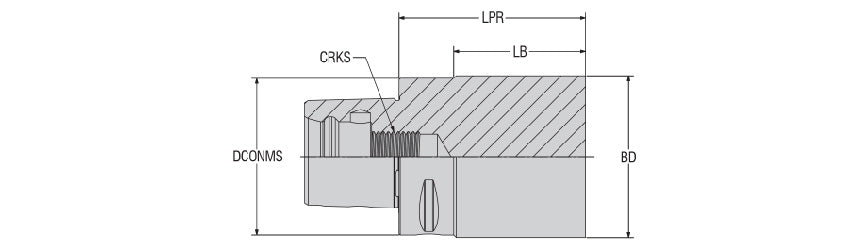

| AKKO code | Body Diameter (BD, mm) | Body Length (LB, mm) | Connection Retention Knob Thread Size (CRKS) | Connection Diameter Machine Side (DCONMS, mm) | Protruding Length (LPR, mm) |
|---|---|---|---|---|---|
| AC3-BL41-032-090 | 32 | 75 | M12x1.5 | 32 | 90 |
| AC3-BL41-032-125 | 32 | 110 | M12x1.5 | 32 | 125 |
| AC4-BL41-040-045 | 40 | 25 | M14x1.5 | 40 | 45 |
| AC4-BL41-040-165 | 40 | 145 | M14x1.5 | 40 | 165 |
| AC4-BL41-052-065 | 52 | 45 | M14x1.5 | 40 | 65 |
| AC4-BL41-070-100 | 70 | 80 | M14x1.5 | 40 | 100 |
| AC5-BL41-050-050 | 50 | 30 | M16x1.5 | 50 | 50 |
| AC5-BL41-050-175 | 50 | 155 | M16x1.5 | 50 | 175 |
| AC5-BL41-075-175 | 75 | 155 | M16x1.5 | 50 | 175 |
| AC5-BL41-75-070 | 75 | 50 | M16x1.5 | 50 | 70 |
| AC6-BL41-063-048 | 63 | 26 | M20x2 | 63 | 48 |
| AC6-BL41-063-100 | 63 | 78 | M20x2 | 63 | 100 |
| AC6-BL41-063-195 | 63 | 175 | M20x2 | 63 | 195 |
| AC6-BL41-063-310 | 63 | 288 | M20x2 | 63 | 310 |
| AC6-BL41-080-250 | 80 | 228 | M20x2 | 63 | 250 |
| AC8-BL41-080-055 | 80 | 24 | M20x2 | 80 | 55 |
