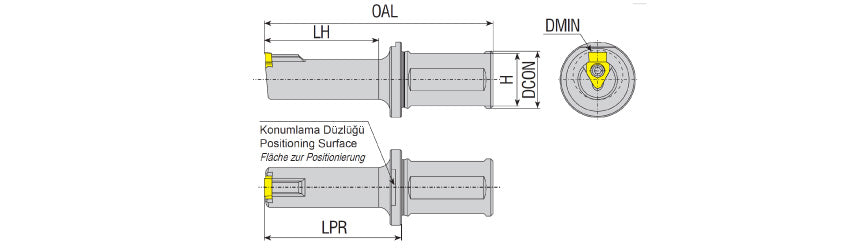

AKKO ABT-B Broaching Toolholder - dimension drawing
AKKO ABT-B Broaching Toolholder - dimension drawing
AKKO

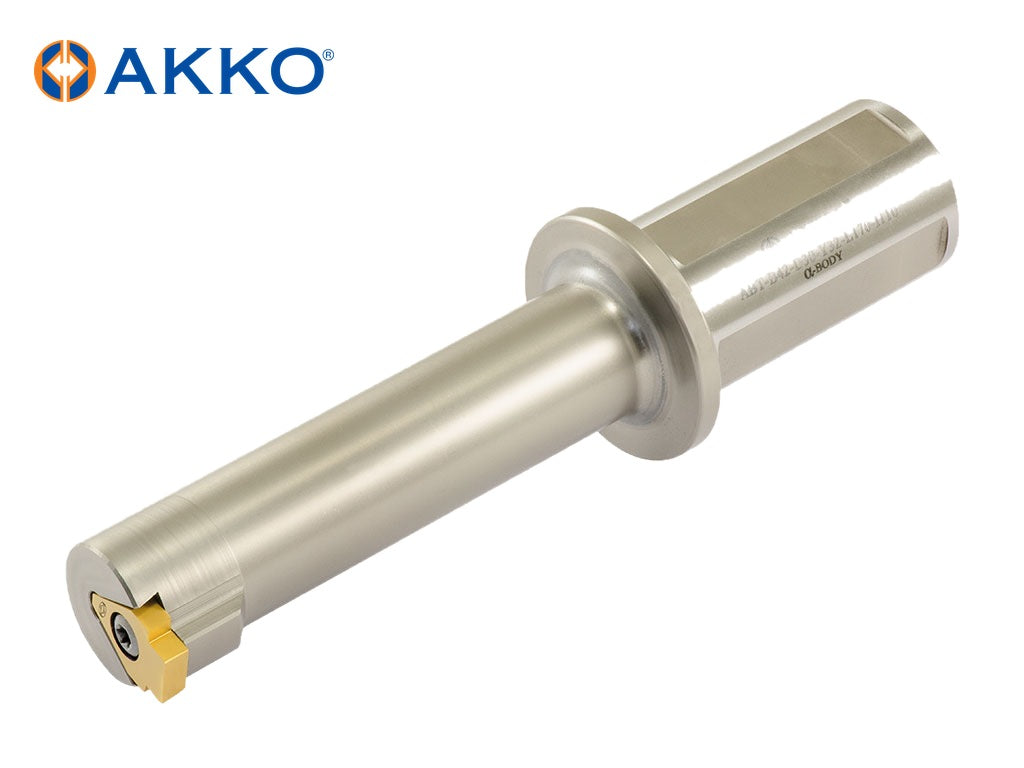

AKKO ABT-B Broaching Toolholder

Out of stock
SKU: ABT-B41-D14-Y25-L90-I040
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedABT-B41-D14-Y25-L90-I040 SKUABT-B41-D14-Y25-L90-I040

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ABT-B – Broaching Toolholder from the AKKO Broaching Toolholders range. For inserts: B41…, B42…. 12 sizes listed below.

Sizes and dimensions

AKKO code Overall Length (OAL, mm) Minimum Bore Diameter (Dmin, mm) SHANK HEIGHT (H, mm) Shank Diameter (DCON, mm) Functional Length (LH, mm) Protruding Length (LPR, mm) Insert Style
ABT-B41-D14-Y25-L90-I040 90 14 23 25 40 50 B41…
ABT-B41-D17-Y25-L105-I065 105 17 23 25 65 75 B41…
ABT-B41-D17-Y25-L90-I040 90 17 23 25 40 50 B41…
ABT-B41-D22-Y25-L100-I050 100 22 23 25 50 60 B41…
ABT-B41-D22-Y25-L125-I070 125 22 23 25 70 80 B41…
ABT-B42-D30-Y32-L100-I050 100 30 30 32 50 60 B42…
ABT-B42-D30-Y32-L125-I075 125 30 30 32 75 85 B42…
ABT-B42-D30-Y32-L170-I110 170 30 30 32 110 120 B42…
ABT-B42-D38-Y32-L100-I050 100 38 30 32 50 60 B42…
ABT-B42-D38-Y32-L125-I075 125 38 30 32 75 85 B42…
ABT-B42-D40-Y32-L100-I050 100 40 30 32 50 60 B42…
ABT-B42-D40-Y32-L125-I075 125 40 30 32 75 85 B42…

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
ABT-B41-D14-Y25-L90-I040 82-T15 4015-M4X11
ABT-B41-D17-Y25-L105-I065 82-T15 4015-M4X11
ABT-B41-D17-Y25-L90-I040 82-T15 4015-M4X11
ABT-B41-D22-Y25-L100-I050 82-T15 4015-M4X11
ABT-B41-D22-Y25-L125-I070 82-T15 4015-M4X11
ABT-B42-D30-Y32-L100-I050 80-T20 1020-M5X14
ABT-B42-D30-Y32-L125-I075 80-T20 1020-M5X14
ABT-B42-D30-Y32-L170-I110 80-T20 1020-M5X14
ABT-B42-D38-Y32-L100-I050 80-T20 1020-M5X14
ABT-B42-D38-Y32-L125-I075 80-T20 1020-M5X14
ABT-B42-D40-Y32-L100-I050 80-T20 1020-M5X14
ABT-B42-D40-Y32-L125-I075 80-T20 1020-M5X14

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
