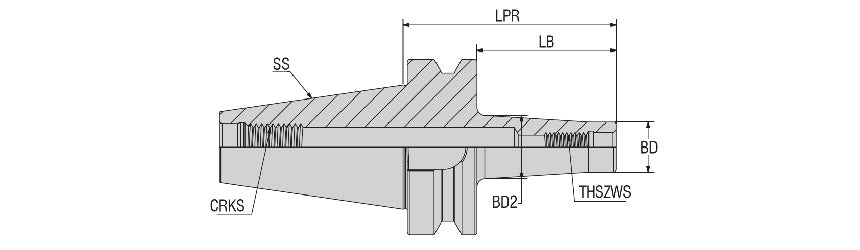

AKKO ABBT-MM AK-Plus End Mill Holder (Weldon) - dimension drawing
AKKO ABBT-MM AK-Plus End Mill Holder (Weldon) - dimension drawing
AKKO

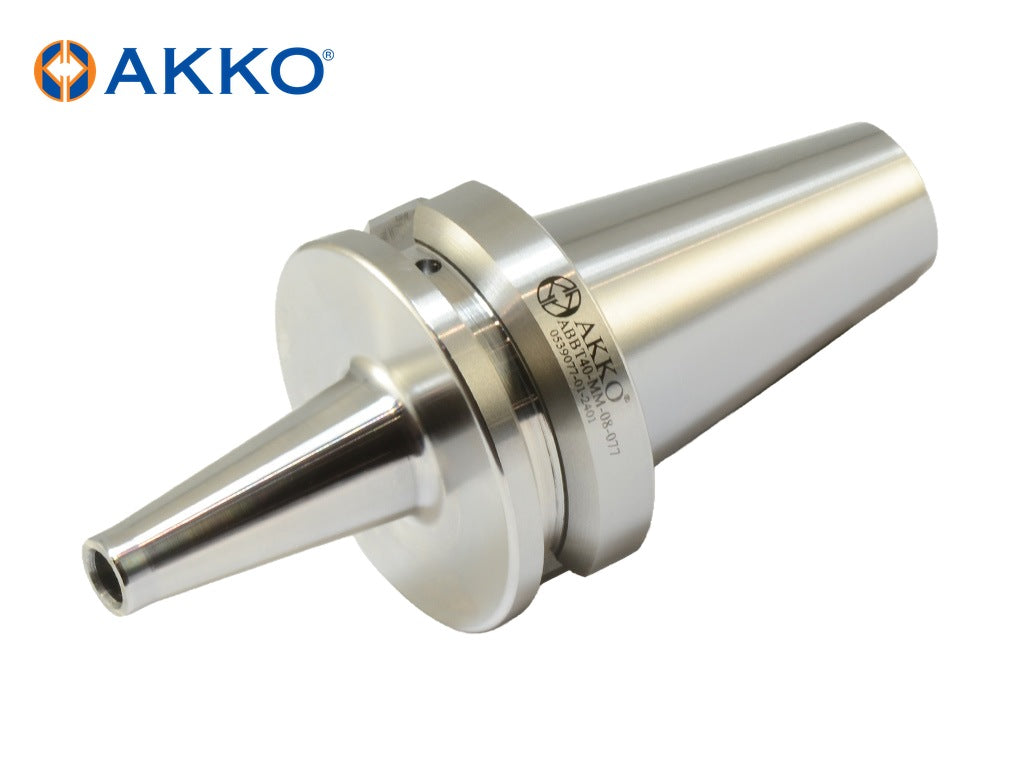

AKKO ABBT-MM AK-Plus End Mill Holder (Weldon)

Out of stock
SKU: ABBT40-MM-08-052
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedABBT40-MM-08-052 SKUABBT40-MM-08-052

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ABBT-MM – AK-Plus End Mill Holder (Weldon) from the AKKO AK-Plus End Mill Holders (Weldon) range. 30 sizes listed below.

Specifications

  • Coolant Through: Yes

Sizes and dimensions

AKKO code Taper Size (SS, mm) Body Diameter (BD, mm) Body Length (LB, mm) Thread Size of Workpiece Side Connection (THSZWS) Body Diameter 2 (BD2, mm) Connection Retention Knob Thread Size (CRKS) Protruding Length (LPR, mm)
ABBT40-MM-08-052 40 13 25 M8 15 M16 52
ABBT40-MM-08-077 40 13 50 M8 22.5 M16 77
ABBT40-MM-08-102 40 13 75 M8 23 M16 102
ABBT40-MM-08-127 40 13 100 M8 25 M16 127
ABBT40-MM-10-052 40 18 25 M10 20 M16 52
ABBT40-MM-10-077 40 18 50 M10 23 M16 77
ABBT40-MM-10-102 40 18 75 M10 28 M16 102
ABBT40-MM-10-127 40 18 100 M10 32 M16 127
ABBT40-MM-12-052 40 21 25 M12 24 M16 52
ABBT40-MM-12-077 40 21 50 M12 24 M16 77
ABBT40-MM-12-102 40 21 75 M12 31 M16 102
ABBT40-MM-12-127 40 21 100 M12 32.5 M16 127
ABBT40-MM-12-177 40 21 150 M12 39.5 M16 177
ABBT40-MM-16-052 40 29 25 M16 – M16 52
ABBT40-MM-16-077 40 29 50 M16 34 M16 77
ABBT40-MM-16-102 40 29 75 M16 34 M16 102
ABBT40-MM-16-127 40 29 100 M16 36 M16 127
ABBT40-MM-16-152 40 29 125 M16 40 M16 152
ABBT40-MM-16-177 40 29 150 M16 42.5 M16 177
ABBT50-MM-08-138 50 13 100 M8 24.5 M24 138
ABBT50-MM-08-188 50 13 150 M8 29.5 M24 188
ABBT50-MM-10-088 50 18 50 M10 23 M24 88
ABBT50-MM-10-138 50 18 100 M10 31.5 M24 138
ABBT50-MM-10-188 50 18 150 M10 36 M24 188
ABBT50-MM-12-088 50 21 50 M12 24 M24 88
ABBT50-MM-12-138 50 21 100 M12 32.5 M24 138
ABBT50-MM-12-188 50 21 150 M12 39.5 M24 188
ABBT50-MM-16-088 50 29 50 M16 34 M24 88
ABBT50-MM-16-138 50 29 100 M16 36 M24 138
ABBT50-MM-16-188 50 29 150 M16 42.5 M24 188

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
