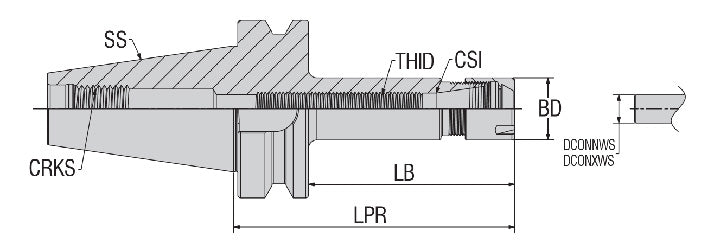

AKKO ABBT-ER-M AK-Plus ER Mini Collet Chuck - dimension drawing
AKKO ABBT-ER-M AK-Plus ER Mini Collet Chuck - dimension drawing
AKKO

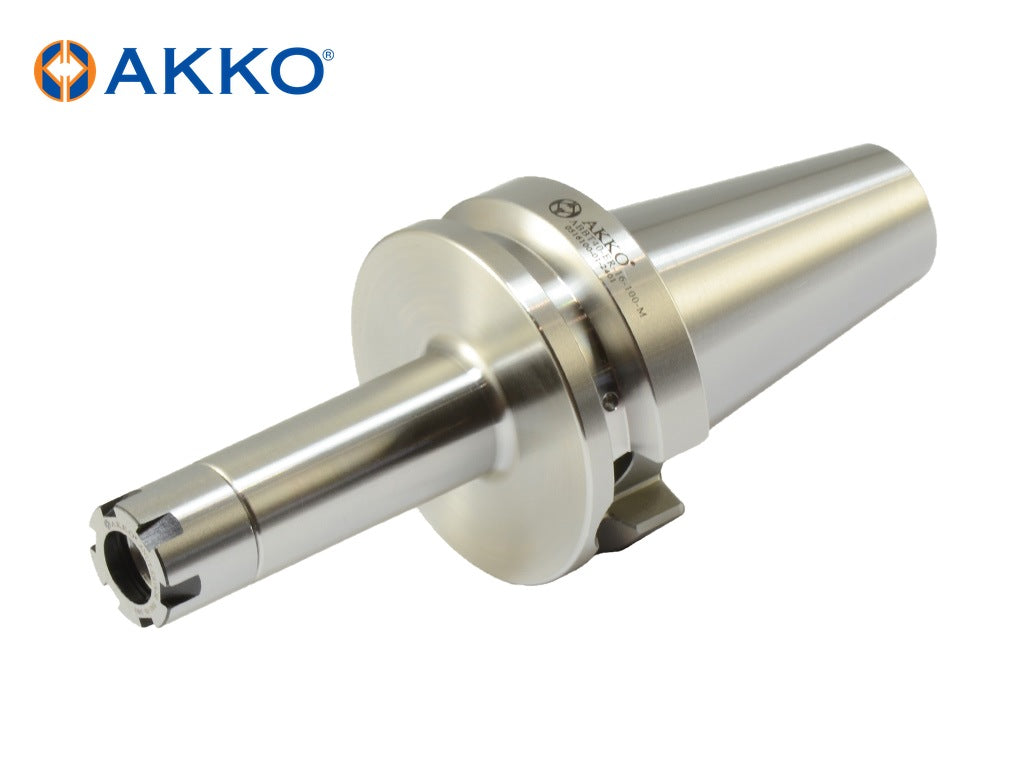

AKKO ABBT-ER-M AK-Plus ER Mini Collet Chuck

Out of stock
SKU: ABBT40-ER-16-100-M
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedABBT40-ER-16-100-M SKUABBT40-ER-16-100-M

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ABBT-ER-M – AK-Plus ER Mini Collet Chuck from the AKKO AK-Plus ER Mini Collet Chucks range. 2 sizes listed below.

Specifications

  • Internal Thread Identifier (THID): M10
  • Taper Size (SS): 40 mm
  • Body Diameter (BD): 22 mm
  • Connection Diameter Workpiece Side (DCONWS): 0.5 mm
  • Collet Series: ER16
  • Coolant Through: Yes
  • Maximum Workpiece Side Connection Diameter (DCONXWS): 10 mm
  • Connection Retention Knob Thread Size (CRKS): M16

Sizes and dimensions

AKKO code Body Length (LB, mm) Protruding Length (LPR, mm)
ABBT40-ER-16-100-M 73 100
ABBT40-ER-16-130-M 103 130

Spare parts (AKKO codes)

  • ER Collet Nut: ANUT-ER16-M

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
