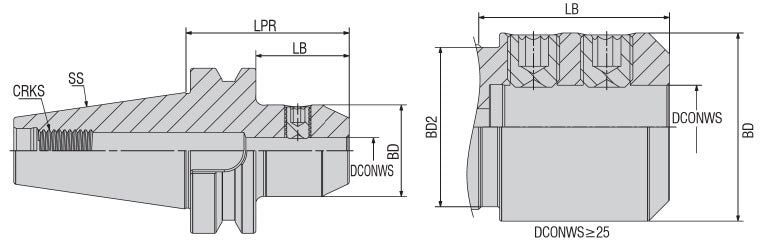

AKKO ABBT-EM AK-Plus End Mill Holder (Weldon) - dimension drawing

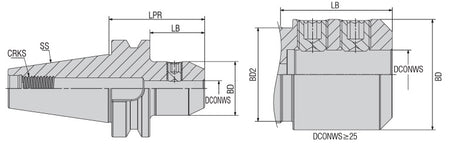

AKKO ABBT-EM AK-Plus End Mill Holder (Weldon) - dimension drawing
AKKO

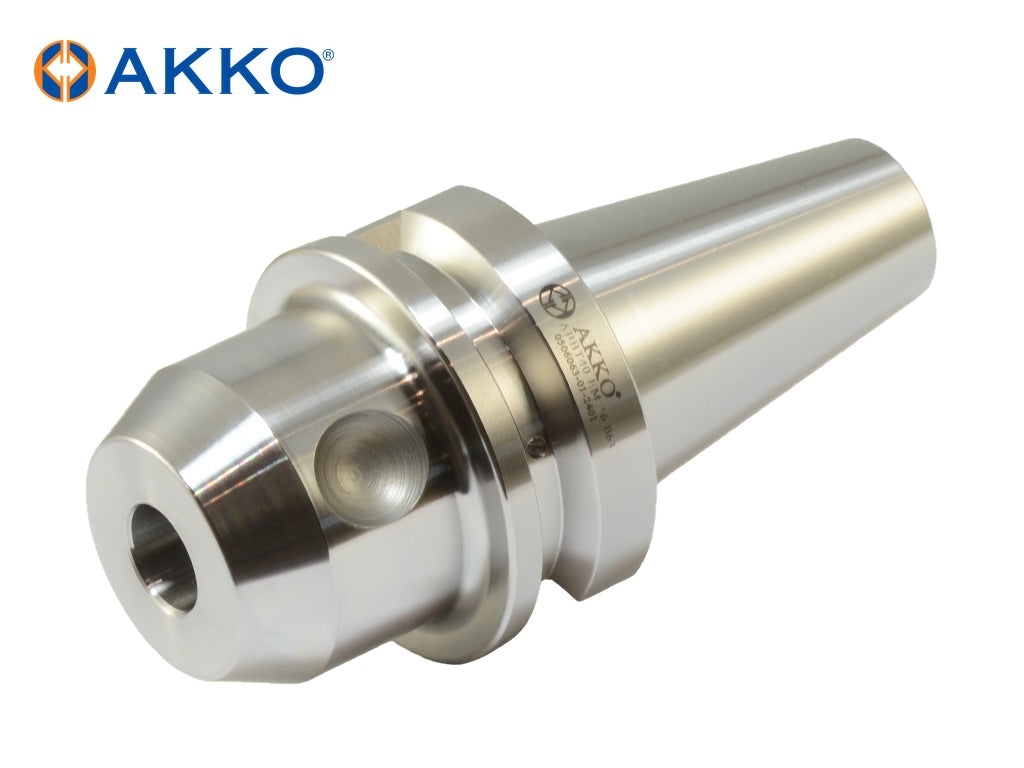

AKKO ABBT-EM AK-Plus End Mill Holder (Weldon)

Out of stock
SKU: ABBT30-EM-06-050
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedABBT30-EM-06-050 SKUABBT30-EM-06-050

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ABBT-EM – AK-Plus End Mill Holder (Weldon) from the AKKO AK-Plus End Mill Holders (Weldon) range. 56 sizes listed below.

Specifications

  • Coolant Through: Yes

Sizes and dimensions

AKKO code Taper Size (SS, mm) Body Diameter (BD, mm) Connection Diameter Workpiece Side (DCONWS, mm) Body Length (LB, mm) Body Diameter 2 (BD2, mm) Connection Retention Knob Thread Size (CRKS) Protruding Length (LPR, mm)
ABBT30-EM-06-050 30 25 06 28 14.5 M12 50
ABBT30-EM-08-050 30 28 08 28 – M12 50
ABBT30-EM-10-050 30 35 10 28 – M12 50
ABBT30-EM-12-050 30 42 12 28 – M12 50
ABBT30-EM-14-050 30 44 14 28 – M12 50
ABBT30-EM-16-063 30 48 16 41 45 M12 63
ABBT30-EM-18-063 30 50 16 41 45 M12 63
ABBT40-EM-06-100 40 25 06 73 – M16 100
ABBT40-EM-06-160 40 25 06 133 – M16 160
ABBT40-EM-08-050 40 28 08 23 – M16 50
ABBT40-EM-08-100 40 28 08 73 – M16 100
ABBT40-EM-08-160 40 28 08 133 – M16 160
ABBT40-EM-10-063 40 35 10 36 – M16 63
ABBT40-EM-10-100 40 35 10 73 – M16 100
ABBT40-EM-12-063 40 42 12 36 – M16 63
ABBT40-EM-12-100 40 42 12 73 – M16 100
ABBT40-EM-14-063 40 44 14 36 – M16 63
ABBT40-EM-14-100 40 44 15 73 – M16 100
ABBT40-EM-16-063 40 48 16 36 – M16 63
ABBT40-EM-16-100 40 48 16 73 – M16 100
ABBT40-EM-16-160 40 48 16 133 – M16 160
ABBT40-EM-18-063 40 50 18 36 – M16 63
ABBT40-EM-18-100 40 50 18 73 – M16 100
ABBT40-EM-20-063 40 52 20 36 – M16 63
ABBT40-EM-20-100 40 52 20 73 – M16 100
ABBT40-EM-25-090 40 63 25 63 61 M16 90
ABBT40-EM-25-130 40 63 25 103 61 M16 130
ABBT40-EM-25-160 40 63 25 133 61 M16 160
ABBT40-EM-32-100 40 72 32 73 61 M16 100
ABBT40-EM-32-160 40 72 32 133 61 M16 160
ABBT40-EM-40-120 40 79 40 93 61 M16 120
ABBT50-EM-06-063 50 25 06 25 – M24 63
ABBT50-EM-06-100 50 25 06 62 – M24 100
ABBT50-EM-06-160 50 25 06 122 – M24 160
ABBT50-EM-08-063 50 28 08 25 – M24 63
ABBT50-EM-08-100 50 28 08 62 – M24 100
ABBT50-EM-10-100 50 35 10 62 – M24 100
ABBT50-EM-10-160 50 35 10 122 – M24 160
ABBT50-EM-12-080 50 42 12 42 – M24 80
ABBT50-EM-12-100 50 42 12 62 – M24 100
ABBT50-EM-12-160 50 42 12 122 – M24 160
ABBT50-EM-14-080 50 44 14 42 – M24 80
ABBT50-EM-14-100 50 44 14 62 – M24 100
ABBT50-EM-16-080 50 48 16 42 – M24 80
ABBT50-EM-16-100 50 48 16 62 – M24 100
ABBT50-EM-16-160 50 48 16 122 – M24 160
ABBT50-EM-18-100 50 50 18 62 – M24 100
ABBT50-EM-18-160 50 50 18 122 – M24 160
ABBT50-EM-20-100 50 52 20 62 – M24 100
ABBT50-EM-20-160 50 52 20 122 – M24 160
ABBT50-EM-25-100 50 63 25 62 – M24 100
ABBT50-EM-25-160 50 63 25 122 – M24 160
ABBT50-EM-32-105 50 72 32 67 – M24 105
ABBT50-EM-32-160 50 72 32 122 – M24 160
ABBT50-EM-40-110 50 80 40 72 – M24 110
ABBT50-EM-40-160 50 80 40 122 – M24 160

Spare parts (AKKO codes)

AKKO code Set Screw
ABBT30-EM-06-050 2803-M6x9
ABBT30-EM-08-050 2804-M8x9
ABBT30-EM-10-050 2803-M6x9
ABBT30-EM-12-050 2803-M6x9
ABBT30-EM-14-050 2803-M6x9
ABBT30-EM-16-063 2803-M6x9
ABBT30-EM-18-063 2803-M6x9
ABBT40-EM-06-100 2803-M6x9
ABBT40-EM-06-160 2803-M6x9
ABBT40-EM-08-050 2804-M8x9
ABBT40-EM-08-100 2804-M8x9
ABBT40-EM-08-160 2803-M6x9
ABBT40-EM-10-063 2803-M6x9
ABBT40-EM-10-100 2803-M6x9
ABBT40-EM-12-063 2803-M6x9
ABBT40-EM-12-100 2803-M6x9
ABBT40-EM-14-063 2803-M6x9
ABBT40-EM-14-100 2803-M6x9
ABBT40-EM-16-063 2803-M6x9
ABBT40-EM-16-100 2803-M6x9
ABBT40-EM-16-160 2803-M6x9
ABBT40-EM-18-063 2803-M6x9
ABBT40-EM-18-100 2803-M6x9
ABBT40-EM-20-063 2803-M6x9
ABBT40-EM-20-100 2803-M6x9
ABBT40-EM-25-090 2803-M6x9
ABBT40-EM-25-130 2803-M6x9
ABBT40-EM-25-160 2803-M6x9
ABBT40-EM-32-100 2803-M6x9
ABBT40-EM-32-160 2803-M6x9
ABBT40-EM-40-120 2803-M6x9
ABBT50-EM-06-063 2803-M6x9
ABBT50-EM-06-100 2803-M6x9
ABBT50-EM-06-160 2803-M6x9
ABBT50-EM-08-063 2803-M6x9
ABBT50-EM-08-100 2803-M6x9
ABBT50-EM-10-100 2803-M6x9
ABBT50-EM-10-160 2803-M6x9
ABBT50-EM-12-080 2803-M6x9
ABBT50-EM-12-100 2803-M6x9
ABBT50-EM-12-160 2803-M6x9
ABBT50-EM-14-080 2803-M6x9
ABBT50-EM-14-100 2803-M6x9
ABBT50-EM-16-080 2803-M6x9
ABBT50-EM-16-100 2803-M6x9
ABBT50-EM-16-160 2803-M6x9
ABBT50-EM-18-100 2803-M6x9
ABBT50-EM-18-160 2803-M6x9
ABBT50-EM-20-100 2803-M6x9
ABBT50-EM-20-160 2803-M6x9
ABBT50-EM-25-100 2803-M6x9
ABBT50-EM-25-160 2803-M6x9
ABBT50-EM-32-105 2803-M6x9
ABBT50-EM-32-160 2803-M6x9
ABBT50-EM-40-110 2803-M6x9
ABBT50-EM-40-160 2803-M6x9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
