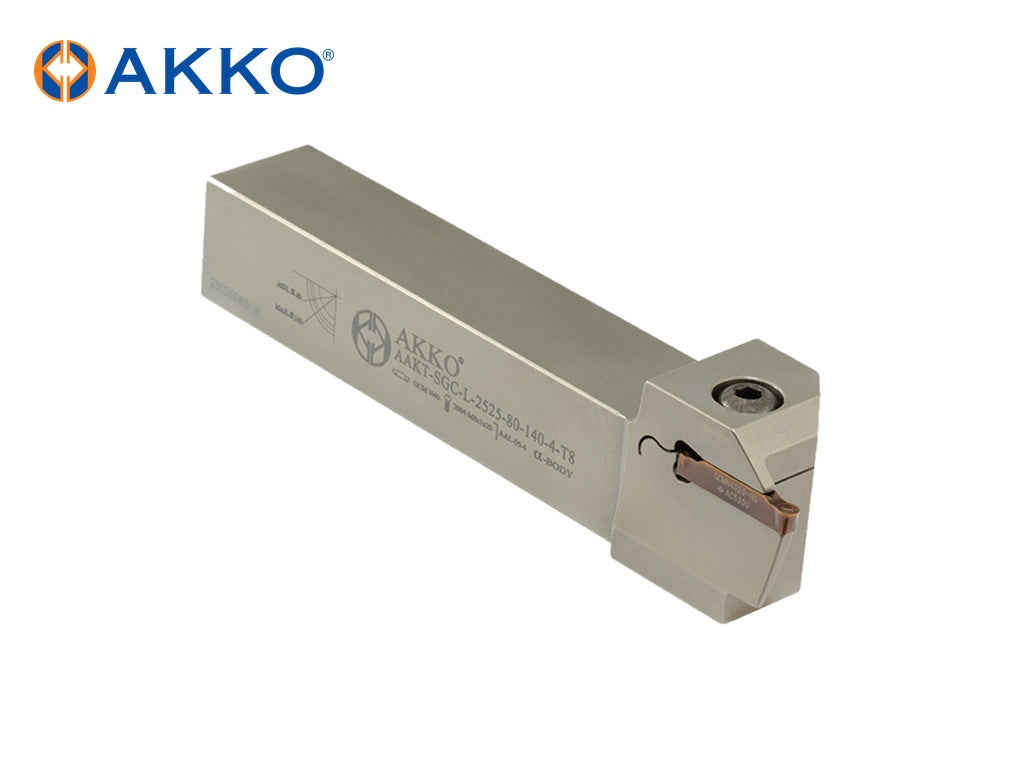

AKKO AAKT-SGC-R/L – Face Grooving Toolholder from the AKKO Face Grooving Toolholders range. Available in right-hand and left-hand versions. For inserts: GCM 3 mm, GCM 4 mm. 6 sizes listed below.

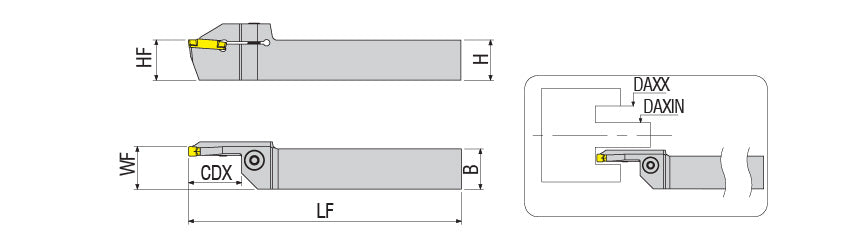

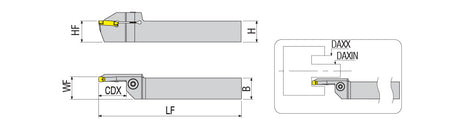

| AKKO code | Hand (R/L) | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Functional Height (HF, mm) | Maximum Axial Groove Outside Diameter (DAXX, mm) | Axial Groove Inside Diameter Minimum (DAXIN, mm) | Insert Size (mm) | Cutting Depth Maximum (CDX, mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| AAKT-SGC-L-2020-22-53-3-T13 | L | 20 | 20 | 125 | 21.50 | 20 | 53 | 22 | 3 | 13 |
| AAKT-SGC-L-2525-80-140-4-T8 | L | 25 | 25 | 150 | 26.50 | 25 | 140 | 80 | 4 | 8 |
| AAKT-SGC-R-2020-22-53-3-T13 | R | 20 | 20 | 125 | 21.50 | 20 | 53 | 22 | 3 | 13 |
| AAKT-SGC-R-2525-40-65-4-T12 | R | 25 | 25 | 150 | 26.50 | 25 | 65 | 40 | 4 | 12 |
| AAKT-SGC-R-2525-80-100-3-T8 | R | 25 | 25 | 150 | 26.50 | 25 | 100 | 80 | 3 | 8 |
| AAKT-SGC-R-2525-80-140-4-T8 | R | 25 | 25 | 150 | 26.50 | 25 | 140 | 80 | 4 | 8 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
