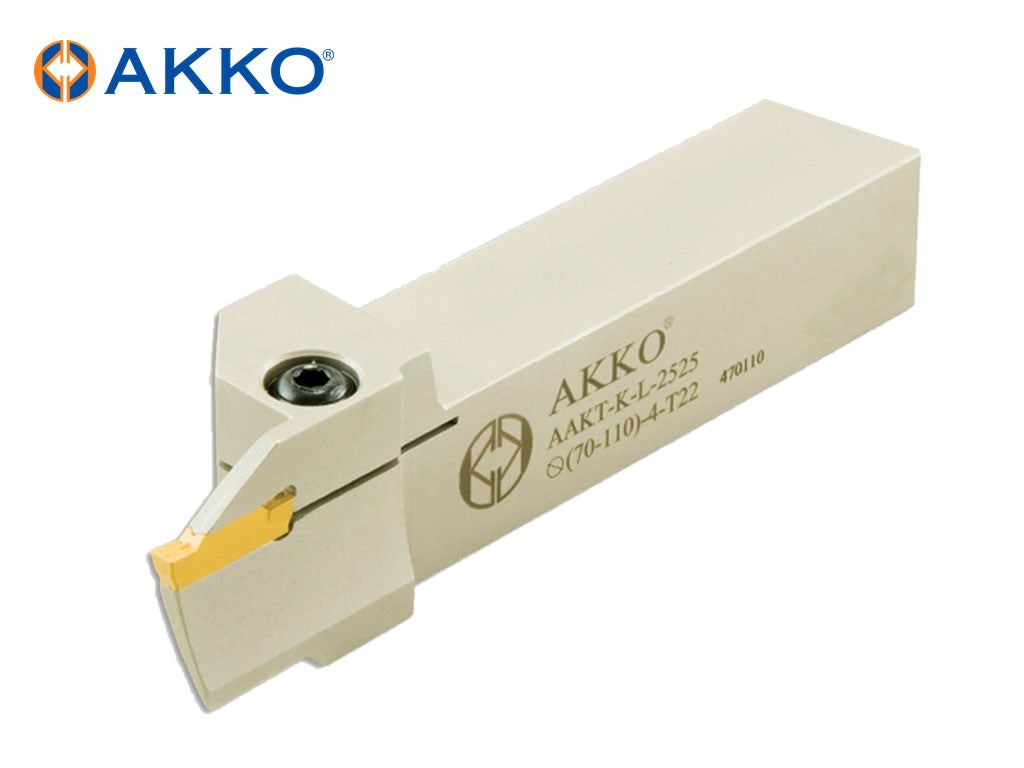

AKKO AAKT-KG-R/L – Face Grooving Toolholder from the AKKO Face Grooving Toolholders range. Available in right-hand and left-hand versions. For inserts: KG 4 mm. 6 sizes listed below.

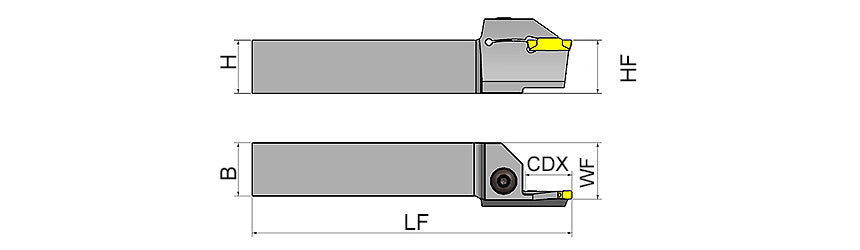

Specifications
-
Shank Height (H): 25 mm
-
Functional Width (WF): 26.50 mm
-
Functional Length (LF): 150 mm
-
Maximum Axial Groove Outside Diameter (DAXX): 180 mm
-
Coolant Through: No
-
Axial Groove Inside Diameter Minimum (DAXIN): 88 mm
-
Shank Width (B): 25 mm
-
Functional Height (HF): 25 mm
-
Insert Size: 4 mm
-
Insert Style: KG
-
Cutting Depth Maximum (CDX): 22 mm
Sizes and dimensions
| AKKO code |
Hand (R/L) |
| AAKT-KG-L-2525-112-200-4-T22 |
L |
| AAKT-KG-L-2525-44-70-4-T22 |
L |
| AAKT-KG-L-2525-60-120-4-T22 |
L |
| AAKT-KG-R-2525-112-200-4-T22 |
R |
| AAKT-KG-R-2525-44-70-4-T22 |
R |
| AAKT-KG-R-2525-60-120-4-T22 |
R |
Spare parts (AKKO codes)
-
Allen Key: AAL-05-4
-
Hexagon Screw: 2004-M8X1X20
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
