ACCUD Measuring Tip for Screw Thread Micrometer – Series 343
ACCUD Measuring Tip for Screw Thread Micrometer – Series 343
ACCUD

ACCUD Measuring Tip for Screw Thread Micrometer – Series 343

In stock
SKU: 343-000-01
£17.57 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

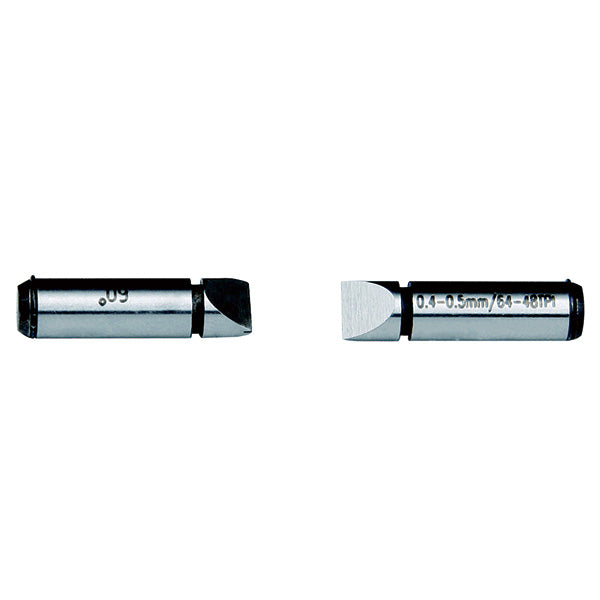

ACCUD Measuring Tip for Screw Thread Micrometer – Series 343

Genuine ACCUD measuring tip for screw thread micrometer, available in 18 versions. Choose your size or model above; every version is listed with its ACCUD code in the table below.

Features

  • Ratchet stop

Models and codes

ACCUD code Description Range
343-000-01 Measuring Tip 0.4-0.5mm/64-48TPI
343-000-02 Measuring Tip 0.6-0.9mm/44-28TPI
343-000-03 Measuring Tip 1-1.75mm/24-14TPI
343-000-04 Measuring Tip 2-3mm/13-9TPI
343-000-05 Measuring Tip 3.5-5mm/8-5TPI
343-000-06 Measuring Tip 5.5-7mm/4.5-3.5TPI
343-000-11 Measuring Tip 60-48TPI
343-000-12 Measuring Tip 48-40TPI
343-000-13 Measuring Tip 40-32TPI
343-000-14 Measuring Tip 32-24TPI
343-000-15 Measuring Tip 24-18TPI
343-000-16 Measuring Tip 18-14TPI
343-000-17 Measuring Tip 14-10TPI
343-000-18 Measuring Tip 10-7TPI
343-000-19 Measuring Tip 7-4.5TPI
343-000-20 Measuring Tip 4.5-3.5TPI
343-000-2TS Measuring Tip 10 pairs/set
343-000-TS Measuring Tip 6 pairs/set

Delivery

  • Genuine ACCUD product, supplied by LATHELAND.
  • Please allow up to 3 working weeks for delivery if not in stock.
  • We ship worldwide by DHL Express.
