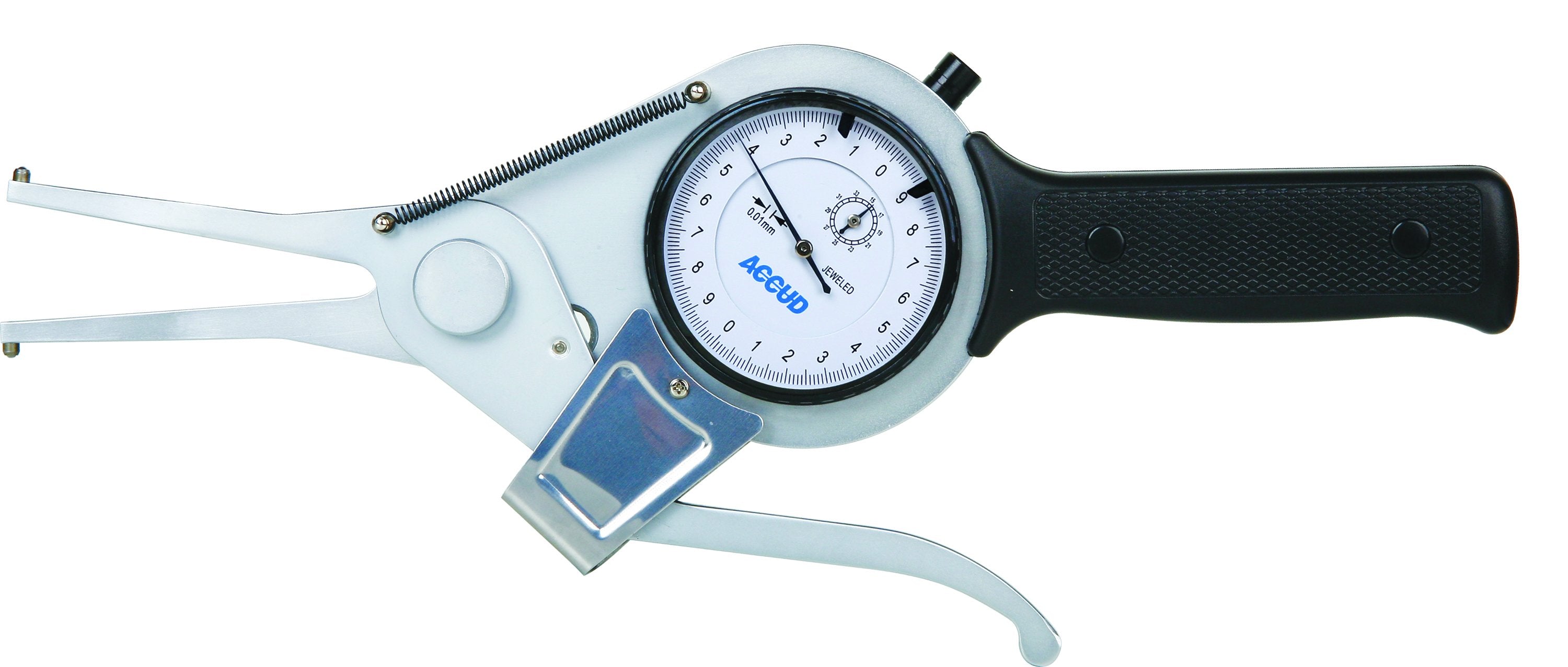

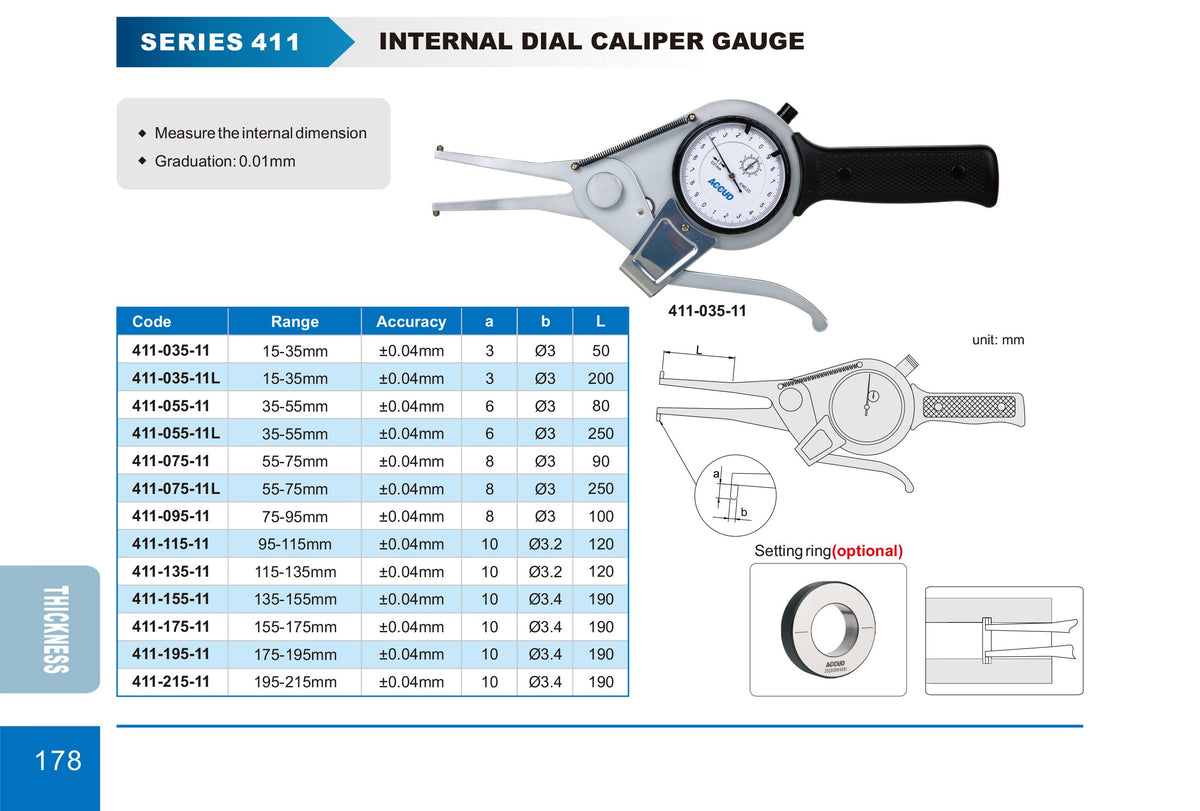

A dial caliper gauge for quick, repeatable measurement of internal diameters, bores and internal grooves. Set the measuring arms inside the bore and read the size directly from the dial. Ideal for production checks at the machine. Long-jaw versions reach deeper into the bore.
| ACCUD code | Range | Jaw length |
|---|---|---|
| 411-035-11 | 15–35 mm | 50 mm |
| 411-055-11 | 35–55 mm | 80 mm |
| 411-075-11 | 55–75 mm | 90 mm |
| 411-095-11 | 75–95 mm | 100 mm |
| 411-115-11 | 95–115 mm | 150 mm |
| 411-135-11 | 115–135 mm | 150 mm |
| 411-155-11 | 135–155 mm | – |
| 411-175-11 | 155–175 mm | – |
| 411-195-11 | 175–195 mm | – |
| 411-215-11 | 195–215 mm | – |
| 411-035-11L | 15–35 mm | 200 mm (long) |
| 411-055-11L | 35–55 mm | 250 mm (long) |
| 411-075-11L | 55–75 mm | 250 mm (long) |
| 411-095-11L | 75–95 mm | 250 mm (long) |
| 411-115-11L | 95–115 mm | 300 mm (long) |
A digital version (ACCUD Series 410) is also available. Please contact us for a quote.
